About Plan # 117-1093

About Plan # 117-1093

3691 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 93' 11" WIDTH 83' 6" DEPTH 3 GARAGE BAY

This extraordinary Luxury home plan with Tuscan-inspired features (House Plan #117-1093) has over 3690 square feet of living space. The two story floor plan includes 4 bedrooms, 3 full bathrooms, and 1 half bath.

The design has plenty of curb appeal and features the following: Courtyard Entry with Loggia Breezeway and Gate, Open Kitchen/Nook/Family, Detached Guest Quarters, Detached Game Room w/glass roll up door, Courtyard entertaining area w/fireplace, bbq, Vaulted Family w/high windows, 3 Car Garage, Butler/Buffet near Dining, Large walk-in Master shower w/garden view, Oversize Lanai at rear, French doors everywhere to maximize bringing outdoors in, See-through fireplace from Family to Dining, Jack and Jill Bath upstairs, Kid's den upstairs. The guest house is included with 275 SF.

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

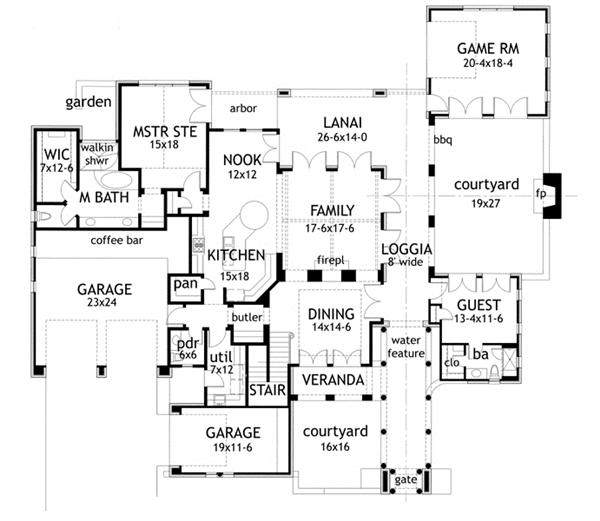

Home Plan: #117-1093 Floor Plan First Story - first floor Floor Plan First Story of Luxury Plan #117-1093

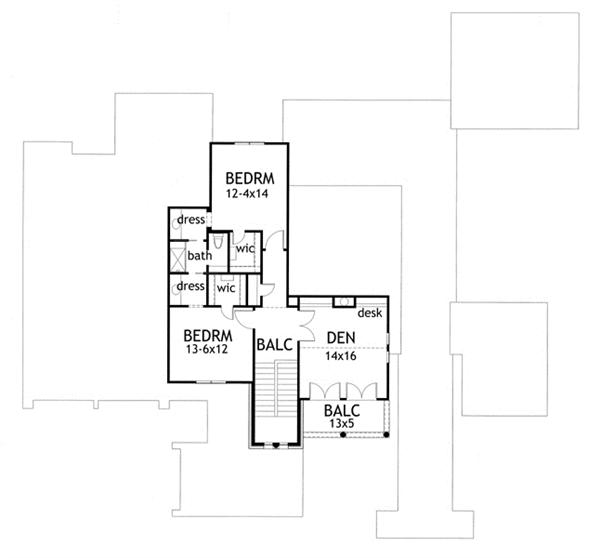

#117-1093 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #117-1093
Home Plan: #117-1093 Floor Plan First Story - first floor Floor Plan First Story of Luxury Plan #117-1093
#117-1093 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #117-1093
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1093
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
3691
Main Floor:
2067
Upper Floor:
951
Unfinished Sq Ft:
Bonus Room:
673
Garage :
780

Dimensions

Width:
93' 11"
Depth:
83' 6"

Architectural Styles

European
Southwest
Luxury
Traditional
California Style
Tuscan
Texas Style

Exterior Wall Material

Rock/Stone

Roofing Type

Gable

Roofing Material

Tiles

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Family Room
Game Room
Main Level Laundry
Color Photos
Storage
Balcony
Open Floor Plan
Interior Photos

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Butler's Pantry
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
