About Plan # 163-1034

About Plan # 163-1034

4636 SQUARE FEET 5 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 81' 8" WIDTH 65' 0" DEPTH 4 GARAGE BAY

This striking two-story design has a traditional look of brick and siding with an updated feel. It has 3 separate garage bays suitable for 4 cars, a covered front, rear porch, and lots of curb appeal. Inside, the main level has a generous size living and dining room on either side of the foyer. A unique aspect of this plan is the configuration of the stairs. Its layout provides for a single set of stairs that actually acts as two sets of stairs. Additionally, the stairs act as a natural divider between the formal and informal areas of the house. The kitchen has an island and a large hidden walk-in pantry with a built-in freezer. The dining/breakfast, keeping room, and family room are open to the kitchen. Finally, there is a guest bedroom and bath on the main level. Upstairs is the master suite with a built-in sitting area, separate tub and shower and double vanity, and a large walk-in closet. There are 3 secondary bedrooms and 2 additional bathrooms, one of which is a jack and jill style. A huge laundry room next to the master helps accommodate cleaning the linens. A bonus/play gives the kids a common area of their very own. This plan does not disappoint!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

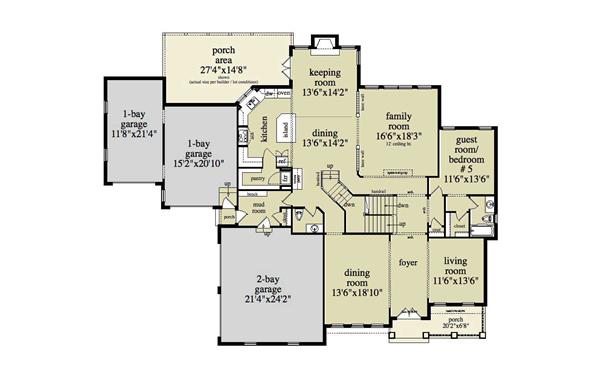

Home Plan: #163-1034 Floor Plan First Story - first story Floor Plan First Story of Country Plan #163-1034

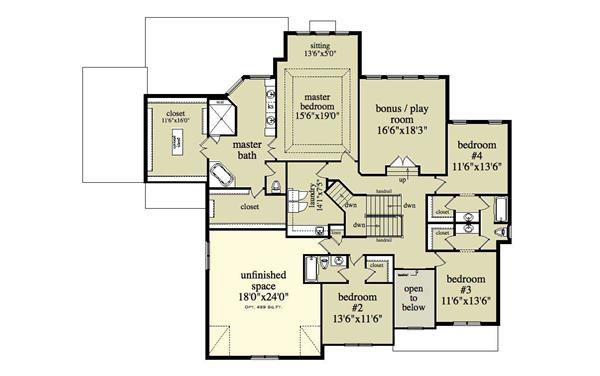

#163-1034 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #163-1034
Home Plan: #163-1034 Floor Plan First Story - first story Floor Plan First Story of Country Plan #163-1034
#163-1034 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #163-1034
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 163-1034
Floors:
2
Bedrooms:
5
Full Baths:
4
Half Baths:
1

Square Footage

Heated Sq Feet:
4636
Main Floor:
2236
Unfinished Sq Ft:
Lower Floor:
2400
Bonus Room:
499

Dimensions

Width:
81' 8"
Depth:
65' 0"
Ridge Height:
48' 0"

Architectural Styles

Country
European
Traditional
Craftsman

Exterior Wall Material

Brick
Shakes

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
4/12
6/12
9/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Mud Room
Bonus Room
Family Room
Game Room
Color Photos
Open Floor Plan
Interior Photos

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Walk In Closet
Sitting Area
Second Floor Master

Additional Notes from Designer

Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.
