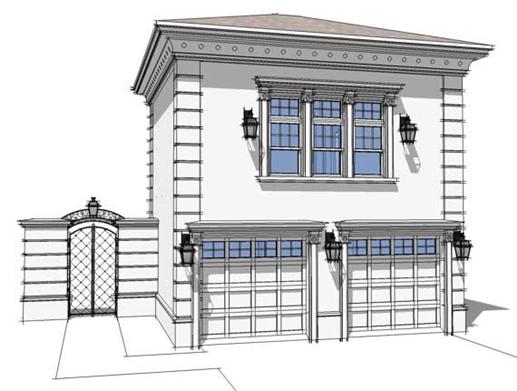

This is a computer generated front elevation of these Garage Plans.
Home Plan Rear Elevation
1-Bedroom, 551 Sq Ft Garage w/Apartments Home Plan - 116-1027 - Main Exterior
Home Plan Rear Elevation

About Plan # 116-1027

About Plan # 116-1027

551 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 37' 0" WIDTH 26' 0" DEPTH 2 GARAGE BAY

This is by far the fanciest set of garage plans around!

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #116-1027 Floor Plan First Story - first story Floor Plan First Story of Garage w/Apartments Plan #116-1027
#116-1027 Floor Plan Second Story - second story Floor Plan Second Story of Garage w/Apartments Plan #116-1027
Home Plan: #116-1027 Floor Plan First Story - first story Floor Plan First Story of Garage w/Apartments Plan #116-1027
#116-1027 Floor Plan Second Story - second story Floor Plan Second Story of Garage w/Apartments Plan #116-1027
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1027
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
551
Main Floor:
551
Unfinished Sq Ft:

Dimensions

Width:
37' 0"
Depth:
26' 0"
Ridge Height:
30' 0"

Architectural Styles

Garage w/Apartments

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

5/12

Ceiling Height

10 Foot Ceiling

Garage Type

Attached Garage
Front Entry

Building Lot Type

Flat Site
Narrow Lot Design

Master Suite Features

Second Floor Master

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
