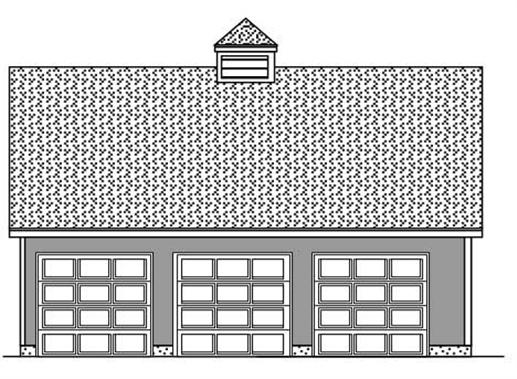

This image shows these garage plans from the front.
0-Bedroom, 540 Sq Ft Garage House Plan - 110-1160 - Front Exterior

About Plan # 110-1160

About Plan # 110-1160

540 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
2 FLOOR 36' 0" WIDTH 28' 0" DEPTH 3 GARAGE BAY

This is a three-car garage.

Each plan set includes the following:

  • ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window sizes.
  • UPPER FLOOR PLAN (if applicable): Same details as the main floor plan.
  • SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Framing plans.
  • Electrical layout.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

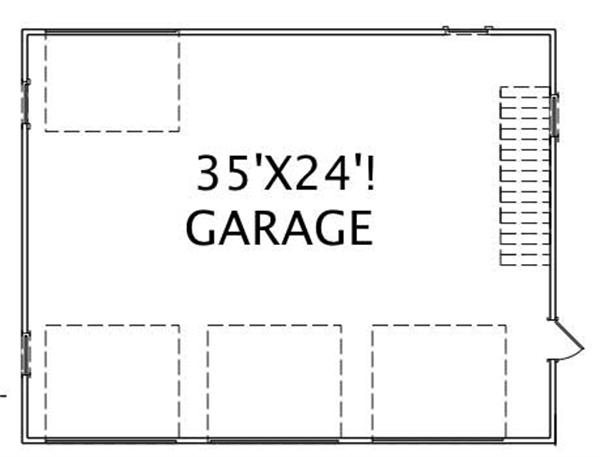

Home Plan: #110-1160 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #110-1160
Home Plan: #110-1160 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #110-1160
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 110-1160
Floors:
2
Garage :
3

Square Footage

Heated Sq Feet:
540
Unfinished Sq Ft:
Garage :
540

Dimensions

Width:
36' 0"
Depth:
28' 0"

Architectural Styles

Garage
Traditional

Exterior Wall Material

Stucco

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Special Feature

Bonus Room

Garage Type

Front Entry
Rear Entry

Building Lot Type

Flat Site
Narrow Lot Design

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

One full printed set with a license to build one home. Generally, we advise customers to purchase a package with more than one set as it is illegal to make copies of a set, and you typically need multiple sets to complete construction of your home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
