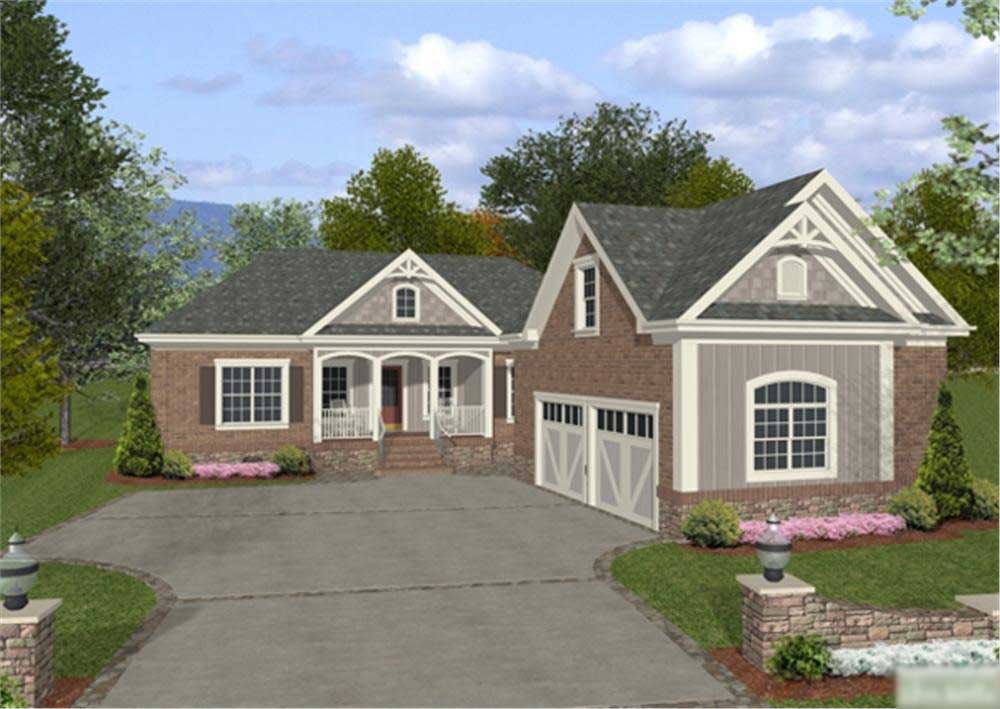

This is an artist's rendering of these House Plans.
Home Plan Rear Elevation
4-Bedroom, 1800 Sq Ft Country House Plan - 109-1016 - Front Exterior
Home Plan Rear Elevation

About Plan # 109-1016

About Plan # 109-1016

1800 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 50' 0" WIDTH 86' 4" DEPTH 2 GARAGE BAY

Welcome home to this delightful 1,800 sq. ft. plan featuring a detached 2-car garage with a 373 sq. ft. bonus room. A covered front porch is just right for a rocking chair or two! Entertaining is a snap in the roomy kitchen with a dining nook and a serving bar open to the 16x221 family room. There is an optional corner fireplace for this room. Just around the corner, you'll find a flexible room which could be a home office, dining room or guest room depending upon your needs. It has a convenient pass-thru to the kitchen. Easily accessible from this area is a pantry as well as a full bath and laundry room which opens onto a porch connecting the home to the garage. Tucked away quietly in a corner of this home is a spacious master suite with a sitting area. Storage abounds in his-and-hers closets, while a master bath with garden tub, shower and double sink creates the feeling of a private spa. The master suite has a door leading to a screen porch which can also be entered from the family room. This is an ideal spot to relax with a cool drink and no bugs. Unusual, yet efficient design frees space for two over-sized storage closets while providing direct access from the family room for the two secondary bedroom suites. Each suite features a walk-in closet and shares a Jack-and-Jill bath.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

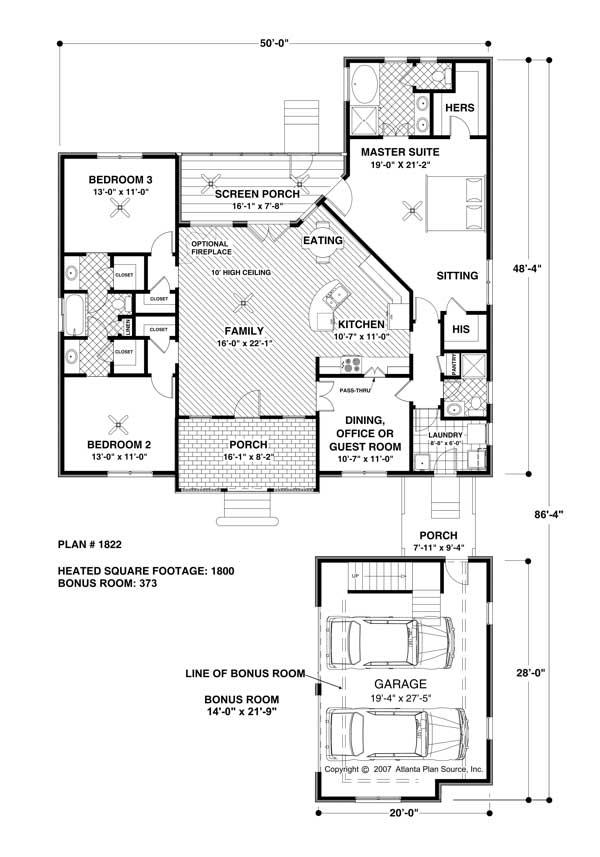

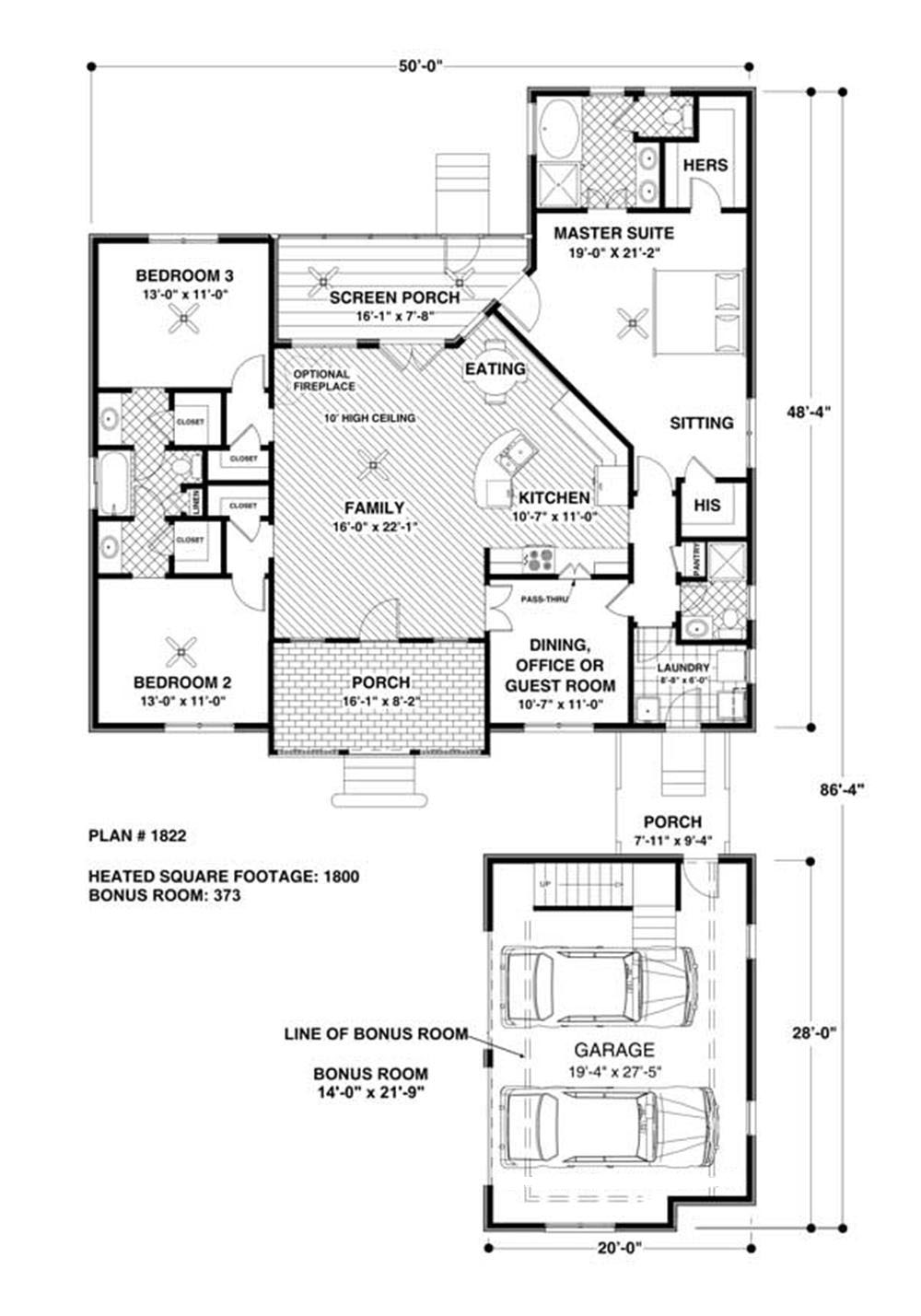

Home Plan: #109-1016 Floor Plan First Story - first story Floor Plan First Story of Country Plan #109-1016
Home Plan: #109-1016 Floor Plan First Story - first story Floor Plan First Story of Country Plan #109-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1016
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
1800
Main Floor:
1800
Unfinished Sq Ft:
Bonus Room:
373

Dimensions

Width:
50' 0"
Depth:
86' 4"
Ridge Height:
20' 0"

Architectural Styles

Country
Craftsman

Exterior Wall Material

Brick
Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

6/12
10/12

Special Feature

Dining Room
Guest Room
Home Office
Mud Room
Main Level Laundry
Split Bathroom
Elevator

Garage Type

Detached Garage
Courtyard Entry

Fireplaces

Optional Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Breezeway
Covered Front Porch
Screened Porch/Sunroom

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
