1830 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 61' 6" WIDTH 30' 4" DEPTH 2 GARAGE BAY

This gorgeous Ranch style home with Country details (House Plan #147-1036) has 1830 living sq ft. The 1-story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Roof plan
  • Exterior Elevations
  • Cross Sections & typical details
  • Interior elevations as needed
  • Door & Window schedule
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

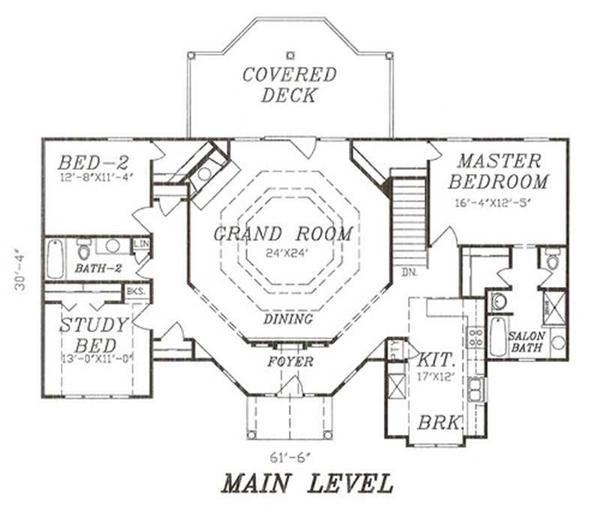

Home Plan: #147-1036 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #147-1036

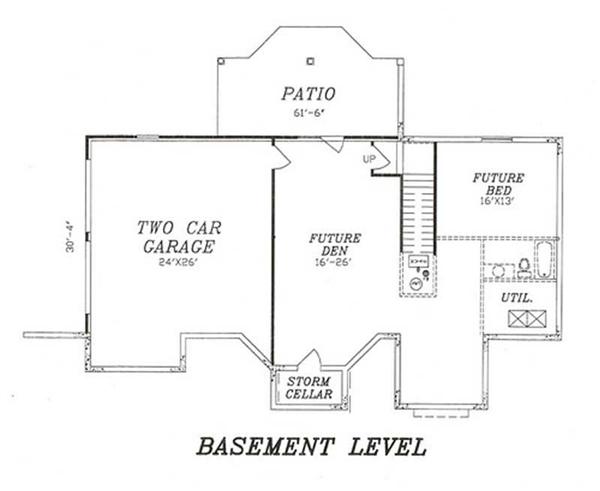

#147-1036 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #147-1036
Home Plan: #147-1036 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #147-1036
#147-1036 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #147-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 147-1036
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1830
Main Floor:
1830
Unfinished Sq Ft:
Lower Floor:
1056
Garage :
666

Dimensions

Width:
61' 6"
Depth:
30' 4"
Ridge Height:
20'0"' 0"

Architectural Styles

Country
Ranch

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Library
Den

Garage Type

Under Main Floor Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Side Slope Site

Kitchen Features

Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

MAIN LEVEL 1830, SECOND LEVEL 1056, WIDTH 61'-6", DEPTH 30'-4", BEDROOMS 3, BATHS 2, GARAGE 2 CAR, STORIES 2, EXTERIOR WALL 2X4, EXTERIOR SURFACE SIDING, CEILING HEIGHTS MAIN 9'-0", FOUNDATION BASEMENT/SLAB, SPECIAL FEATURES: VOLUME CEILING IN GRAND ROOM, MASTER ON THE MAIN
