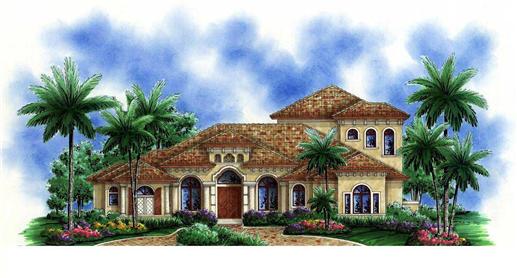

This image is an artist's rendering of these Mediterranean House Plans.
5-Bedroom, 4480 Sq Ft Florida Style House Plan - 175-1020 - Front Exterior

About Plan # 175-1020

About Plan # 175-1020

4480 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 78' 0" WIDTH 120' 0" DEPTH 3 GARAGE BAY

This new Mediterranean home plan is a slight variation to one of our original house plans. This floor plan is also a two story design, but the second story is off of the back of the house and features not only the bonus room and bath, but an extra bedroom also. Giving this house design a total of 4 bedrooms, plus the bonus room which shares the second floor private balcony to take maximum benefit of any kind of view you might have. Also, downstairs the home plan has squared off the family room making a very nice outdoor kitchen/sitting area with a nice ceiling design above on the lanai area. Great for those nights when you feel like dining al fresco. The walk in closet in the master suite has been enhanced, but this home plan still has that unique butlers pantry accessible from the dining room. Check out the photos in our photo gallery of this amazing new Mediterranean home plan!

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

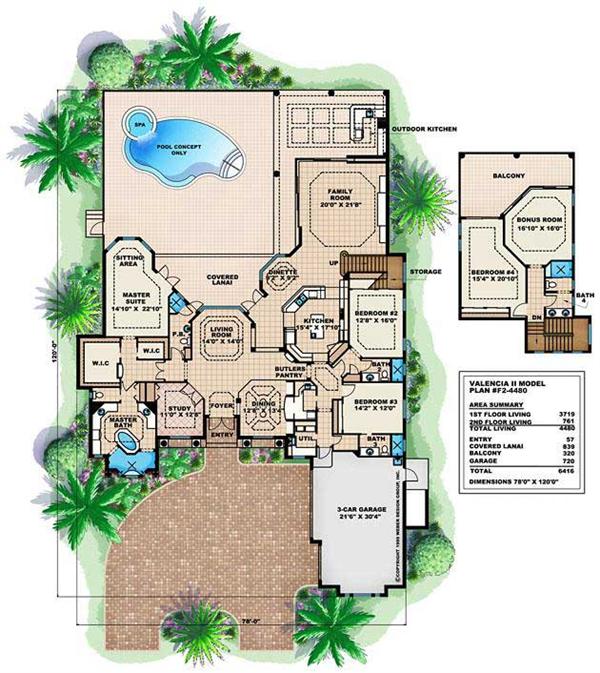

Home Plan: #175-1020 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #175-1020
Home Plan: #175-1020 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #175-1020
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1020
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
4480
Main Floor:
3719
Upper Floor:
761
Unfinished Sq Ft:

Dimensions

Width:
78' 0"
Depth:
120' 0"
Ridge Height:
33-2' 0"

Architectural Styles

Mediterranean
Luxury
Florida Style
Tuscan

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Dining Room
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Den
Balcony

Garage Type

Attached Garage
Courtyard Entry

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
