About Plan # 160-1021

About Plan # 160-1021

476 SQUARE FEET 0 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 35' 6" WIDTH 31' 0" DEPTH 2 GARAGE BAY

A combination of low maintenance shingle siding with fish scale accents, covered porches and old fashioned widow treatments bring a strong craftsman flare to this side entry detached garage. Ample storage, a large workshop space and a full bathroom for those cleanups occupy the first level. Through the vaulted foyer you access the second level. A separating glass railing makes this area more visually spacious and inviting. Numerous activities can be accommodated in this multi purpose space which boasts dueling storage locations and a private viewing balcony.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

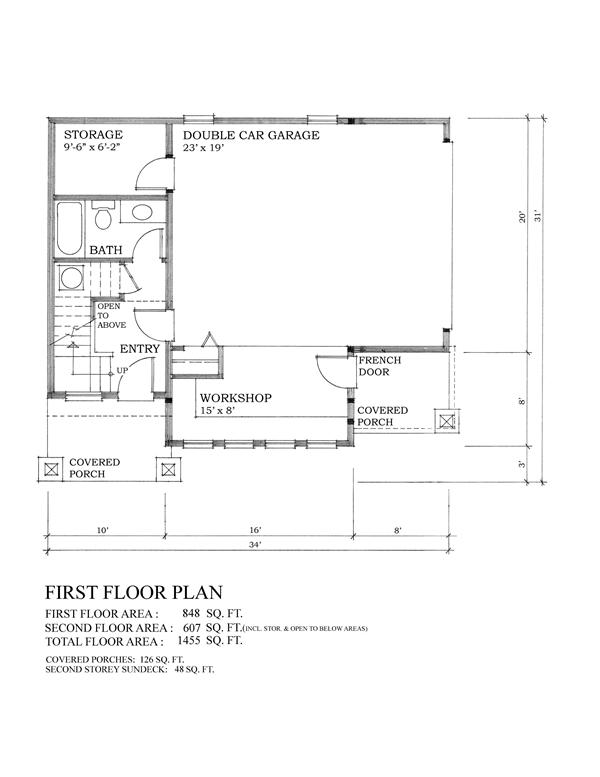

Home Plan: #160-1021 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1021

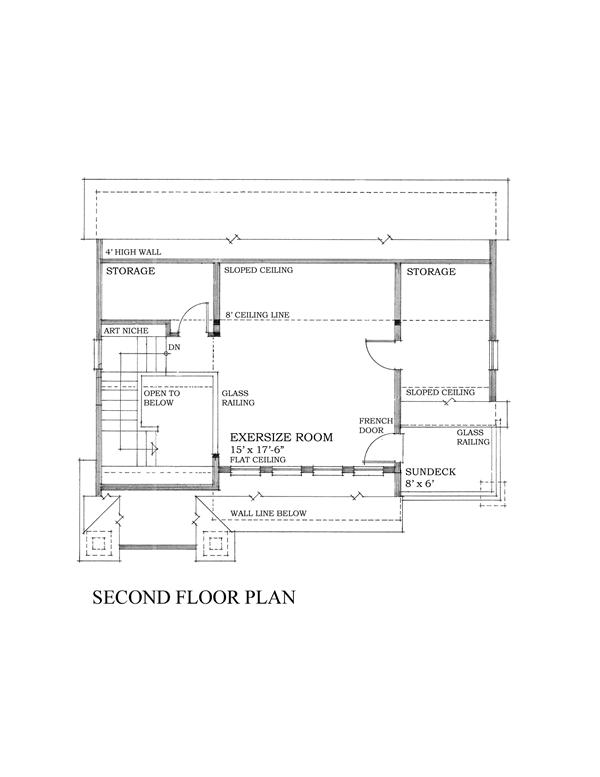

#160-1021 Floor Plan Second Story - second story Floor Plan Second Story of Garage Plan #160-1021
Home Plan: #160-1021 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1021
#160-1021 Floor Plan Second Story - second story Floor Plan Second Story of Garage Plan #160-1021
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1021
Floors:
2
Full Baths:
1

Square Footage

Heated Sq Feet:
476
Main Floor:
182
Upper Floor:
294
Unfinished Sq Ft:

Dimensions

Width:
35' 6"
Depth:
31' 0"
Ridge Height:
25' 0"

Architectural Styles

Garage

Exterior Wall Material

Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Special Feature

Mother in law apartment
Storage
Vaulted Ceilings
Workshop
Balcony
Exercise Room

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.
