4-Bedroom, 6280 Sq Ft European House Plan - 127-1006 - Front Exterior
Home Plan Rear Elevation for this set of luxury homeplans.

About Plan # 127-1006

About Plan # 127-1006

6280 SQUARE FEET 4 BEDROOMS 4 FULL BATH 3 HALF BATH
3 FLOOR 70' 8" WIDTH 84' 3" DEPTH 3 GARAGE BAY
Luxury Plans Hawksmoor II are a beautiful set of house plans with 6280 total living square feet! The main floor plan has the master suite, laundry room, and the kitchen and dining areas. The second floor plan includes an upper master suite as well as a Nanny's Suite and a large game room. The third story includes a recreation room, exercise room, observatory, and a theater. This home plan has ample storage on all three levels. Check out these amazing Luxury houseplans, they have it all!

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #127-1006 Floor Plan First Story - first story Floor Plan First Story of European Plan #127-1006

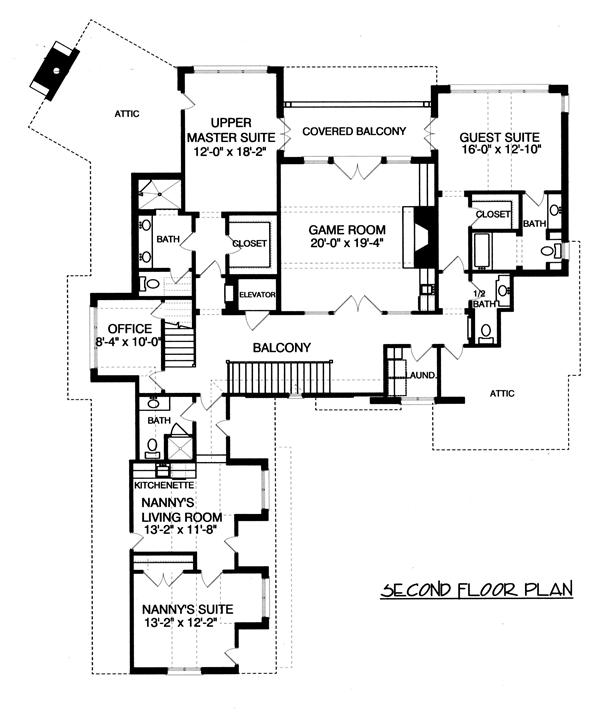

#127-1006 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #127-1006

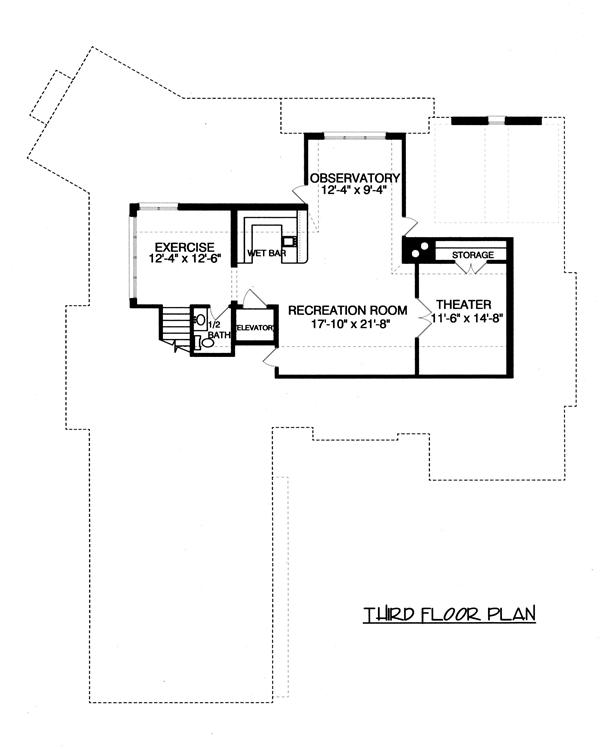

#127-1006 Floor Plan Third Story - third story Floor Plan Third Story of European Plan #127-1006
Home Plan: #127-1006 Floor Plan First Story - first story Floor Plan First Story of European Plan #127-1006
#127-1006 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #127-1006
#127-1006 Floor Plan Third Story - third story Floor Plan Third Story of European Plan #127-1006
