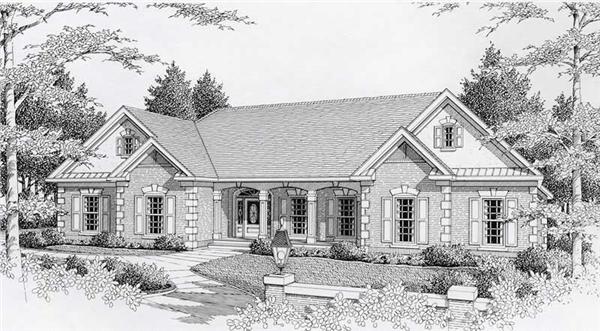

3-Bedroom, 2737 Sq Ft Contemporary House Plan - 162-1050 - Front Exterior
House Plan RDI-2737R1-B Rear Elevation

About Plan # 162-1050

About Plan # 162-1050

2737 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 77' 0" WIDTH 58' 0" DEPTH 2 GARAGE BAY
House Plan RDI-2737R1-B is a great way to fit all the luxurious amenities in a neighborhood lot. All the rooms are large and spacious and the main floor has nine to thirteen foot high ceilings. The den enjoys a beautiful coffered ceiling, and the dining and living rooms have tray and raised ceilings. The master suite is comfortably big with a sitting room, and the master bath features a lavish spa. The kitchen enjoys plenty of storage and counter space. Both secondary bedrooms have walk-in closets.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

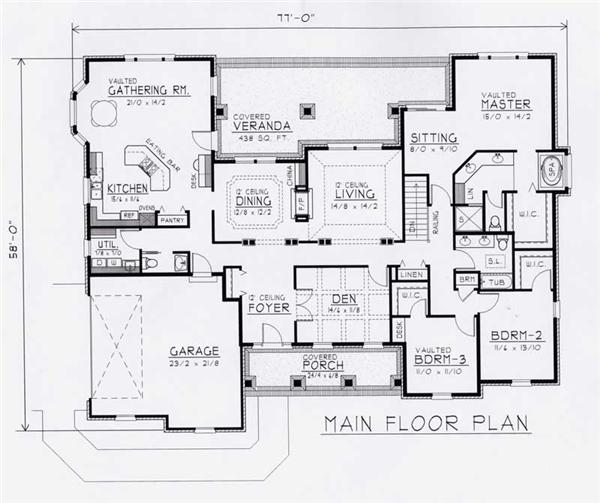

Home Plan: #162-1050 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1050
