About Plan # 162-1047

About Plan # 162-1047

4923 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 95' 0" WIDTH 65' 0" DEPTH 3 GARAGE BAY
House Plan RDI-2724R1-DB is a great way to fit all the luxurious amenities in a neighborhood lot. All the rooms are large and spacious and the main floor has nine foot high ceilings with raised and vaulted rooms. The master suite is comfortably big and the master bath features a lavish spa. The kitchen enjoys plenty of storage and counter space. The basement is finished with a rec room, bar, plenty of storage, and three more bedrooms.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

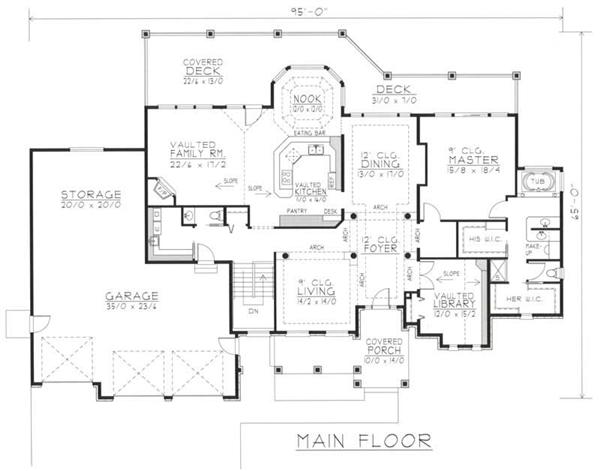

Home Plan: #162-1047 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1047

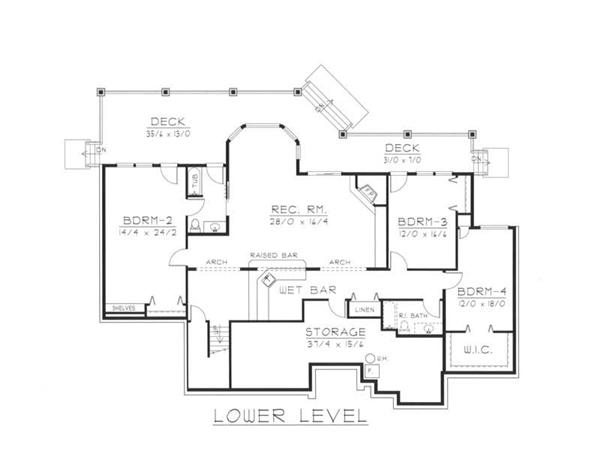

#162-1047 Floor Plan Second Story - second Floor Plan Second Story of Contemporary Plan #162-1047
