About Plan # 107-1028

About Plan # 107-1028

5592 SQUARE FEET 5 BEDROOMS 5 FULL BATH 2 HALF BATH
1.5 FLOOR 87' 0" WIDTH 108' 0" DEPTH 3 GARAGE BAY

This spectacular, two-story, Mediterranean-style home features five bedrooms, five full bathrooms, two and one-half bathrooms and a three-car garage.

  • Columns surround a beautiful covered entrance.
  • There is a multi-purpose playroom that can be an ideal home office with a private entrance.
  • A parlor/living room combination has a wet bar and is ideal for entertaining.
  • The gourmet kitchen with cooktop island, an eating bar and a cafe open to a family room.
  • The secluded den/library makes a quiet place to retreat and relax.
  • This home features large covered patios.
  • There is an exclusive master suite featuring large walk-in closets, a sitting area and a luxurious master suite with a Roman tub surrounded by a glass block opening onto a covered patio.
  • Additional amenities include a study, media room and exercise room located above the master suite.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

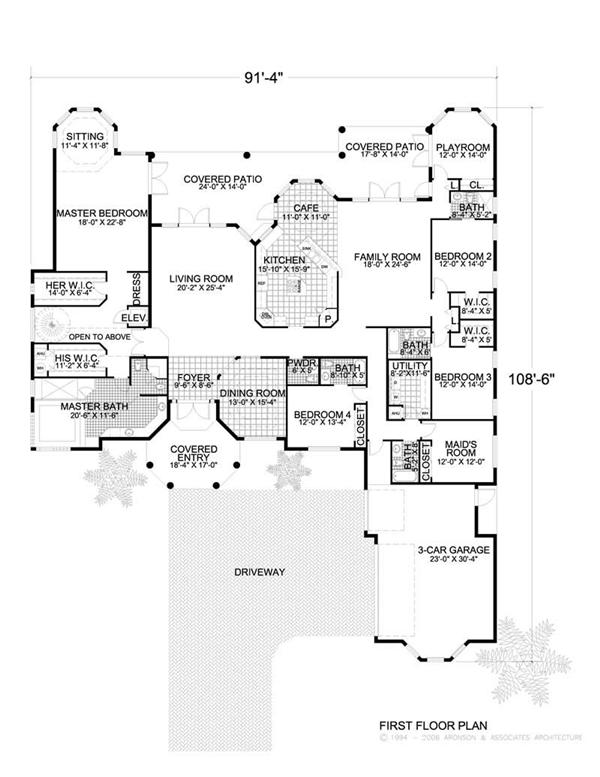

Home Plan: #107-1028 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1028

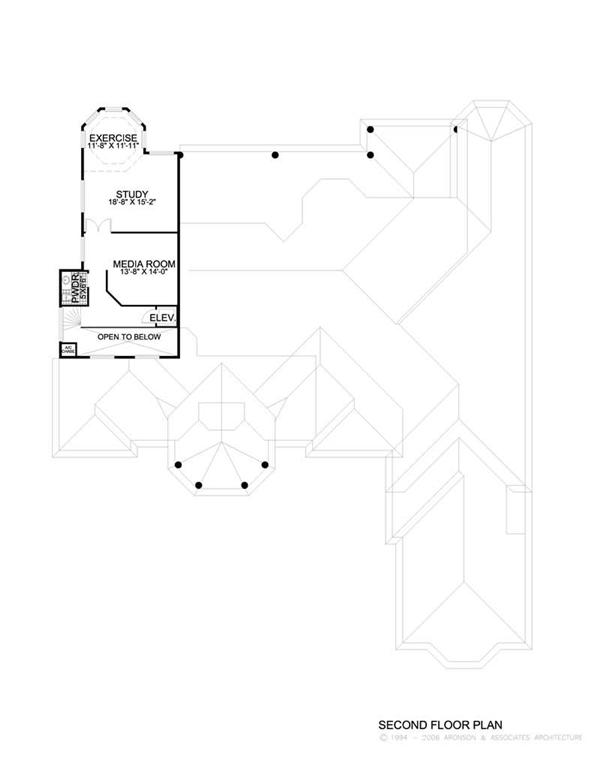

#107-1028 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1028
Home Plan: #107-1028 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1028
#107-1028 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1028
