6275 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 106' 1" WIDTH 98' 2" DEPTH 3 GARAGE BAY
Country Home Plans # EDG-6275 is an English Tudor style estate with fantastic luxury and breath taking interior spaces. The large kitchen is open and with an efficient layout. The nearby hearth room and breakfast nook create a relaxed environment for family and friends. The great room enjoys immediate access to the rear terrace and offers views of the gardens beyond. The room is also fancied by a large centerpeice fireplace and exposed beams. A formal dining room is perfect for dinner parties and enjoys an adjacent bar. The master suite spares no convenience and boasts a dramatic ceiling. A nearby guest/mother in-law suite offers your guests the pleasure of a private room and bath with a walk-in closet. The upper floor features three more bedroom suites and a few large game/bonus rooms.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

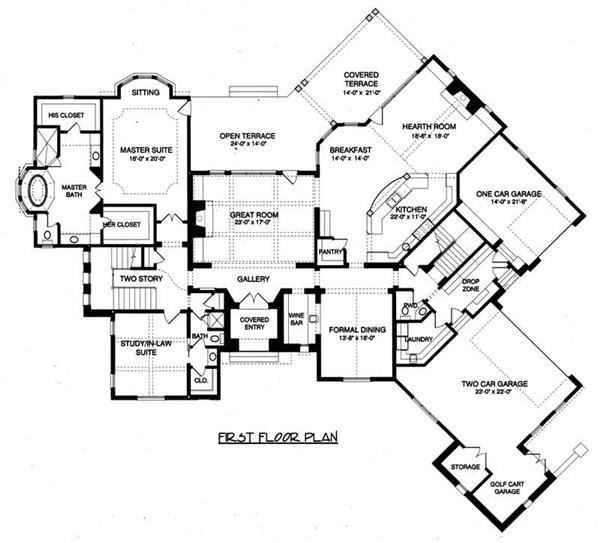

Home Plan: #127-1020 Floor Plan First Story - main Floor Plan First Story of Country Plan #127-1020

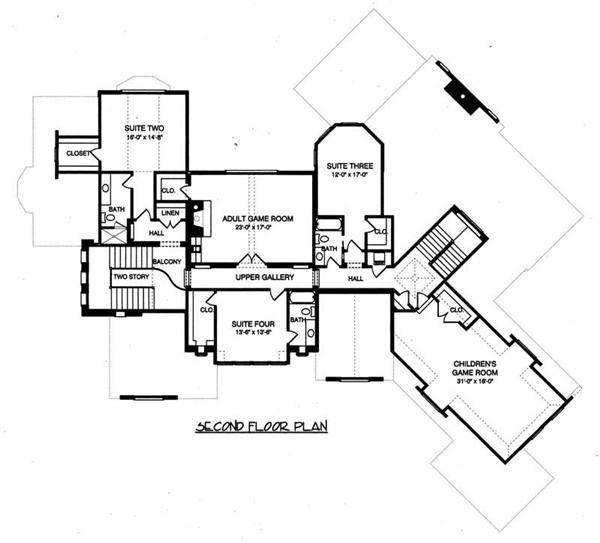

#127-1020 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #127-1020
Home Plan: #127-1020 Floor Plan First Story - main Floor Plan First Story of Country Plan #127-1020
#127-1020 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #127-1020
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1020
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
6275
Main Floor:
3746
Upper Floor:
2529
Unfinished Sq Ft:

Dimensions

Width:
106' 1"
Depth:
98' 2"
Ridge Height:
38-10' 0"

Architectural Styles

Country
Luxury
Tudor
In-Law Suite

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

Other

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Mud Room
Bonus Room
Family Room
Game Room
Main Level Laundry
Home Theater
Media Room
Storage
Vaulted Ceilings
Workshop
Golf Cart Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

Three Fireplaces

Exterior Wall Framing

2x6
2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Friend's Entry
Sundeck
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

Additional Notes from Designer

NO MODS currently as of 2/9/2021
