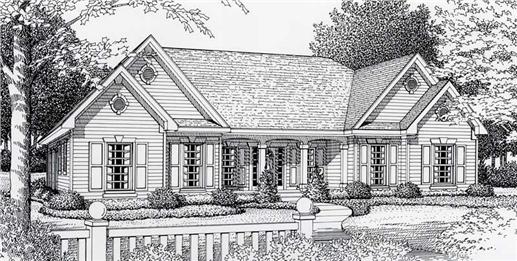

3-Bedroom, 1809 Sq Ft Country House Plan - 162-1000 - Front Exterior
House Plan RDI-1809R1-B Rear Elevation

About Plan # 162-1000

About Plan # 162-1000

1809 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 60' 0" WIDTH 48' 0" DEPTH 2 GARAGE BAY
House Plan RDI-1809R1-B is a symmetrical design centered on the great room. To the left is the kitchen and dining area boasting a large island in the kitchen, tray ceiling in the dining, and a large pantry. The great room itself enjoys a 10 foot ceiling and archways. To the right are the bedrooms, each with either vaulted or tray ceilings. The master suite features a fireplace, large walk-in closet, and a private bath with room for a spa tub.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

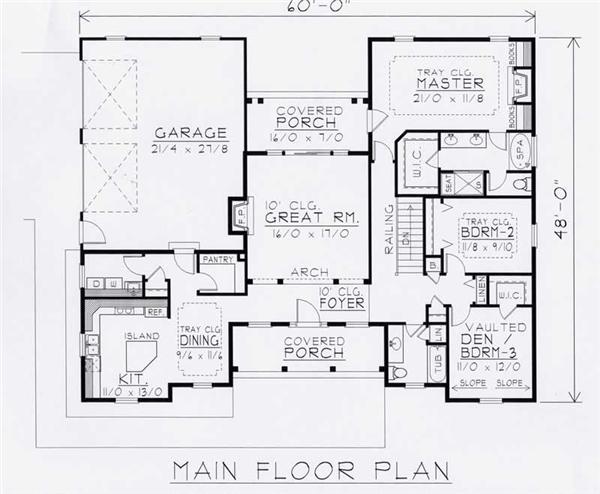

Home Plan: #162-1000 Floor Plan First Story - main Floor Plan First Story of Country Plan #162-1000
