About Plan # 160-1004

About Plan # 160-1004

2682 SQUARE FEET 6 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 56' 0" WIDTH 48' 0" DEPTH 0 GARAGE BAY

A six-bedroom lodge easily accommodates and encourages multifamily entertaining. The voluminous Lounge boasts a twenty-foot high open beamed ceiling with a centrally located warming wood stove. The towering front window wall captures all the available views. Raised above the Lounge floor level but separated only by a railing are the Library and the spacious Dining room. Numerous French door locations access the wrap-a-round multi-level decks for outdoor entertaining. A staircase hung from the ceiling beams allows access to the second level, where four guest suites share the two full bathrooms. Plans designed with a concrete pier and post foundation plan.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

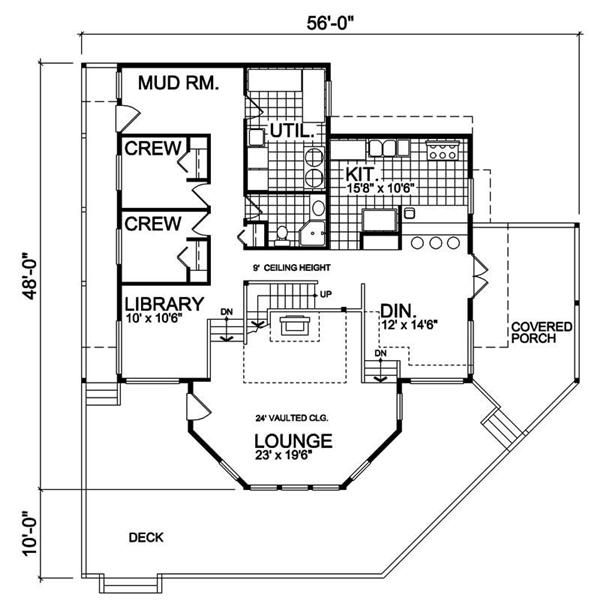

Home Plan: #160-1004 Floor Plan First Story - main 1 Floor Plan First Story of Log Cabin Plan #160-1004

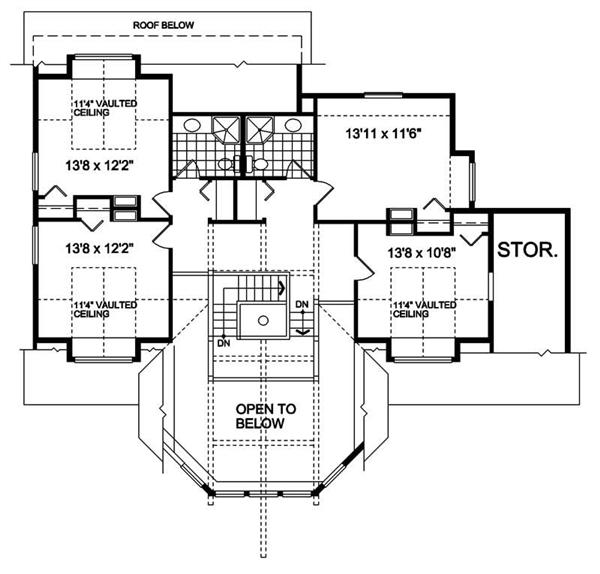

#160-1004 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #160-1004
Home Plan: #160-1004 Floor Plan First Story - main 1 Floor Plan First Story of Log Cabin Plan #160-1004
#160-1004 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #160-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1004
Floors:
2
Bedrooms:
6
Full Baths:
3

Square Footage

Heated Sq Feet:
2682
Main Floor:
1559
Upper Floor:
1123
Unfinished Sq Ft:

Dimensions

Width:
56' 0"
Depth:
48' 0"
Ridge Height:
36'' 0"

Architectural Styles

Vacation Homes
Passive Solar
Cabin

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Mud Room
Main Level Laundry
Library

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Porches and Exterior Features

Wrap Around Porch

Master Suite Features

Second Floor Master
Split Master Bedroom

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.
