About Plan # 127-1005

About Plan # 127-1005

5185 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 75' 10" WIDTH 84' 0" DEPTH 3 GARAGE BAY
House Plan EDG-5170 is a beautiful European Craftsman design with terraced roof lines and plenty of windows. The entry through the courtyard gives privacy and elegance, while bridging the gap between the outdoors and in. The main floor plan is open, sharing light and space. The great room is surrounded by pillars and has a coffered ceiling. The large kitchen has an oversized island for plenty of storage and counter space. The master suite is spacious with an upscale master bath. Guest quarters are to the rear, across the house from the master. The rest of the bedrooms are upstairs with a playroom, media room, and a game room. Note: this plan is not available within a 50 mile radius of Charlotte, NC.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

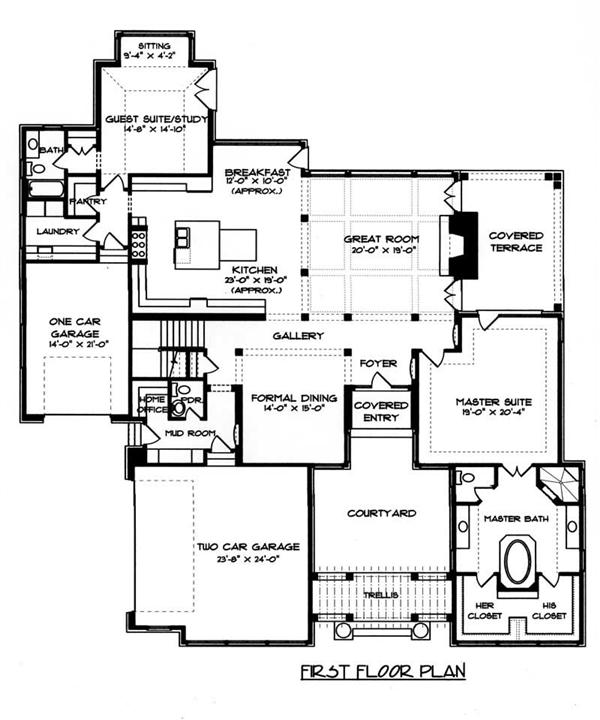

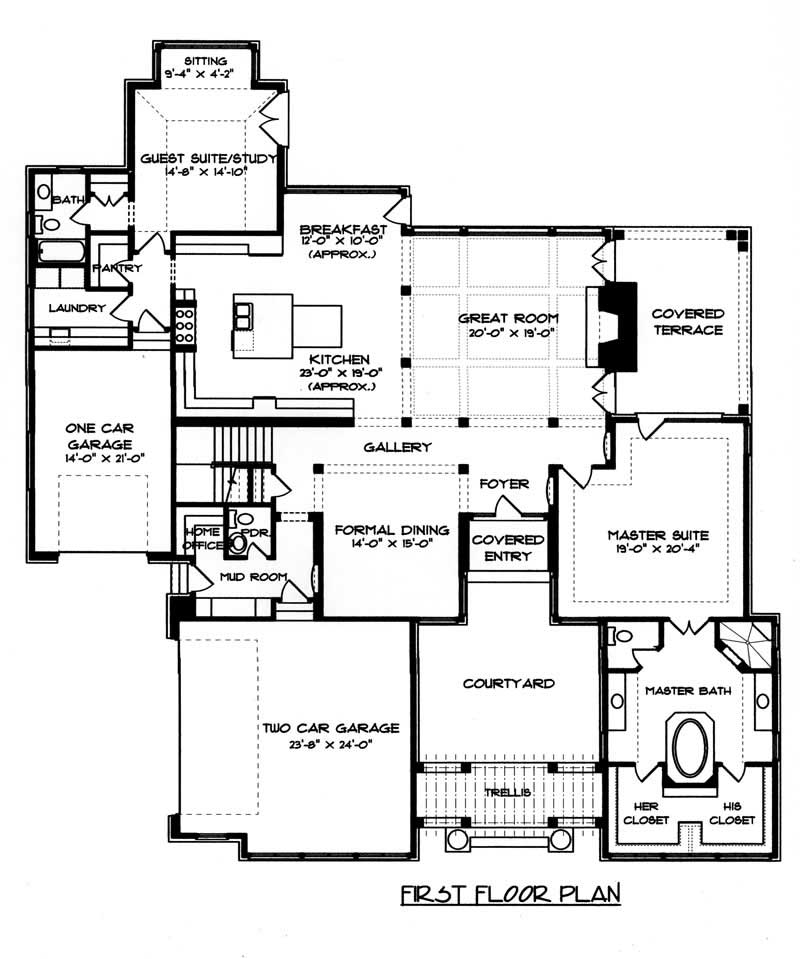

Home Plan: #127-1005 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #127-1005

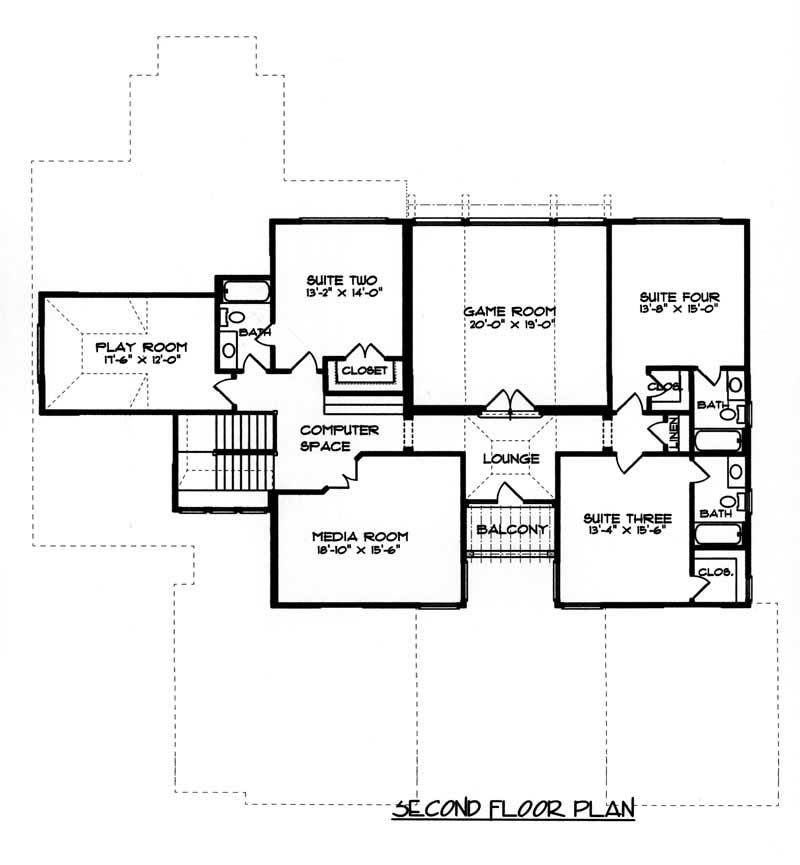

#127-1005 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #127-1005
Home Plan: #127-1005 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #127-1005
#127-1005 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #127-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1005
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
5185
Main Floor:
2995
Upper Floor:
2190
Unfinished Sq Ft:
Garage :
925

Dimensions

Width:
75' 10"
Depth:
84' 0"
Ridge Height:
35'5' 0"

Architectural Styles

European
Luxury
Craftsman
Prairie

Exterior Wall Material

Brick
Wood Siding
Shakes

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12
10/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Mud Room
Family Room
Game Room
Main Level Laundry
Home Theater
Media Room
Split Bathroom
Vaulted Ceilings
Balcony

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6
2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Note: this plan is not available within a 50 mile radius of Charlotte
NO MODS currently as of 2/9/2021

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
