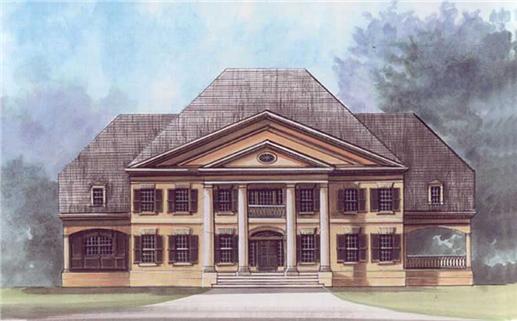

5-Bedroom, 5717 Sq Ft Colonial House Plan - 106-1077 - Front Exterior

About Plan # 106-1077

About Plan # 106-1077

5717 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 88' 0" WIDTH 84' 0" DEPTH 3 GARAGE BAY

This home has a beautiful grand staircase right in from the front entrance. There is a nice laundry room coming from the garage or patio. The breakfast room and family room share a see through fireplace and the kitchen has a great set up for easy use. Upstairs the master bedroom is beautiful with a see-through fireplace going into a sitting room. And the master closet has all the space you would ever need.

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Electrical layout
  • Exterior elevations
  • Cross-section
  • Typical Call detail
  • Typical footing detail
  • Miscellaneous details
  • Window/Door sizes
  • Roof plan

These items are NOT included:

  • Framing.
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

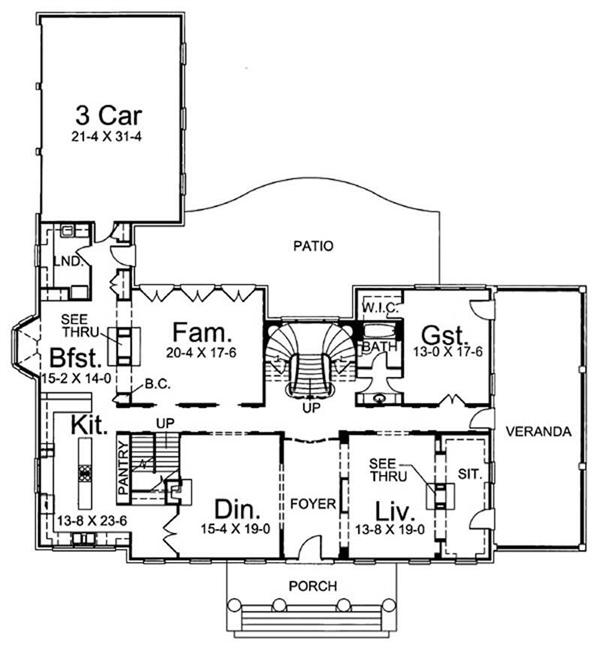

Home Plan: #106-1077 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #106-1077

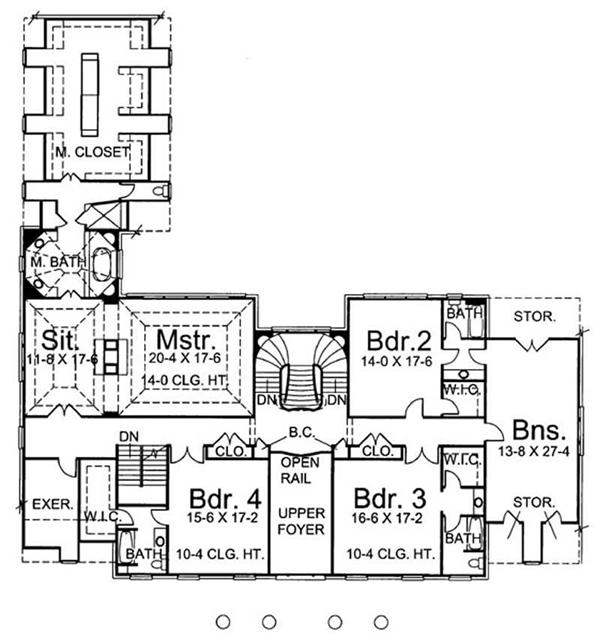

#106-1077 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #106-1077
Home Plan: #106-1077 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #106-1077
#106-1077 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #106-1077
