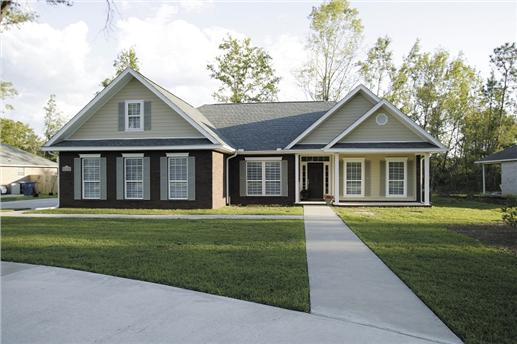

3-Bedroom, 1787 Sq Ft Ranch Home Plan - 109-1086 - Main Exterior
FRONT ELEVATION
109-1086: Home Other Image-Front View
109-1086 house plan rear elevation
109-1086 house plan kitchen
109-1086 house plan family room
109-1086 home plan dining room
109-1086 house plan foyer
109-1086 house plan master bedroom
109-1086 house plan nook area
109-1086 bonus room

About Plan # 109-1086

About Plan # 109-1086

1787 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 55' 8" WIDTH 56' 6" DEPTH 2 GARAGE BAY
This striking and distinctive ranch includes all the frills. From the inviting front porch to the screen porch and deck, this home provides dramatic spaces, luxurious appointments, and spacious living areas. Its carefully designed 1787 square feet provide the feel and features of a much larger home. The bonus room and basement provide plenty of space for expansion, so this home is one that won't soon be outgrown.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
housedreamer
Like the bonus room over the garage in this ranch plan. Open layout is a plus too.
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #109-1086 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #109-1086
Home Plan: #109-1086 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #109-1086
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1086
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1787
Main Floor:
1787
Unfinished Sq Ft:
Garage :
430

Dimensions

Width:
55' 8"
Depth:
56' 6"

Architectural Styles

Country
Ranch
Southern
Traditional

Exterior Wall Material

Brick
Shakes

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Bonus Room
Main Level Laundry

Garage Type

Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.
