House Plan #116-1056
Plan Name: 116-1056   Bedrooms: 4   Width: 58' 0"
Square Feet: 4551 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 0
  Depth: 103' 0"
Floors: 2   Garage Bays: 2 Ridge Height: 30'

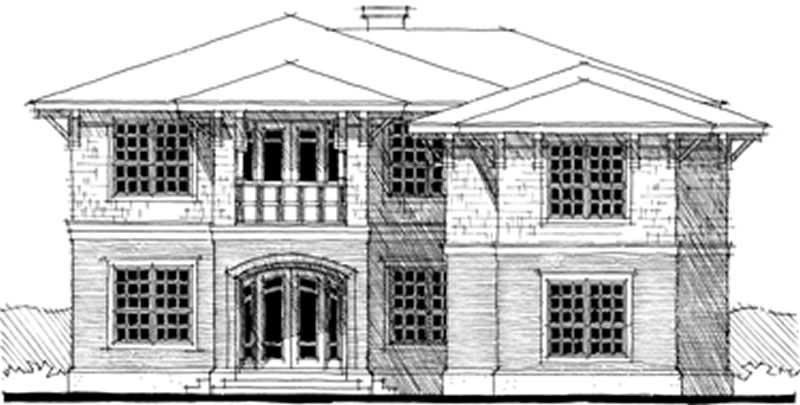

House Plan Main Image House Plan Pricing
Image not available.
  CAD File $1,770.00
  Minimum Construction Package (5 Sets) $1,770.00
  PDF File Set $1,770.00
  Basement $800.00
  Crawlspace $400.00
  Slab $0.00
  ICF Exterior Walls $300.00
  Right Reading Reverse $200.00
  Additional Set(s), Each $40.00
Square Footage House Plan Description
Heated Sq Ft: 4551
Main Floor: 2470
Upper Floor: 2081
Unfinished Sq ft
Garage: 571

The Devonshire. 1st Floor: Grand Entry leads to Foyer and Dining Room. The 2-story Hall/Stairwell leads to the formal Living Room and Verandah. The Masters Suite is designed for the ultimate in luxury, and also is wheelchair accessible with a roll-in shower, turn-around, and side-opening jetted tub. The Suite also has a dressing closet and private porch overlooking the swimming pool. On the right side of the house is the Caterers Kitchen, Nook, Family room with fireplace, Porch, Laundry, Garage, and wheelchair ramp behind a decorative colonnade. 2nd Floor: The elevator and stairwell lead to the second floor Office/Lounge. This area is perfect for a second family room, or a place for your guests to relax in privacy, or conduct business. Also upstairs are three bedroom suites. Two suites feature porches overlooking the pool. Above the garage is the Guest/In-law suite, featuring bath, closet, and wet bar. The outside of the home features Arts & Crafts styling with a stone water-table, brick first level, cedar shake second level, large overhangs with decorative brackets. On the rear of the house, the double, two-story porches provide scenic outdoor viewing of the pool and gardens area.

Home Features
  Architectural Styles
In-Law Suite
  Building Lot Type
Flat Site
  Ceiling Height
10 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
One Fireplace
  Garage Type
Attached Garage
Courtyard Entry
  Kitchen Features
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
  Master Suite Features
Sitting Area
Master Bathroom
Walk In Closet
Main Floor Master
  Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
Friend's Entry
Covered Lanai
  Roof Pitch
  Roofing Material
Asphalt Shingles
  Roofing Type
  Special Feature
Mother in law apartment
Swimming Pool
Dining Room
Guest Room
Mud Room
Family Room
Main Level Laundry
Vaulted Ceilings
House Plan : 116-1056 Images
Reverse Plan Images
   House Plan #116-1056
Image not available.
  Home Plan: 116-1056 Floor Plan First Story
Floor Plan First Story for Bungalow House Plan DT-0025
  Home Plan: 116-1056 SECOND FLOOR PLAN
