4-Bedroom, 1785 Sq Ft Ranch Home Plan - 105-1101 - Main Exterior

About Plan # 105-1101

About Plan # 105-1101

1785 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 43' 0" WIDTH 29' 0" DEPTH 1 GARAGE BAY
Flanked by elegant columns, the raised front porch welcomes everyone to this split-entry home. The main-floor living room offers a high ceiling, creating an airy atmosphere. The adjacent dining area flows into the efficient L-shaped kitchen. The lower floor hosts a fourth bedroom, a second bath, a computer room and a large family room with a fireplace access to a rear terrace.

Each plan set includes the following:

  • Elevations
  • Sections - Include structural design & specifications
  • Kitchen cabinet elevations
  • Floor Plan
  • Roof Plan
  • Typical wall section
  • Construction & Specification notes
  • Special detail sections
  • Plumbing riser diagram
  • Window and door sizes
  • Structural design joists and beams
  • Electrical Layout
  • Special Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

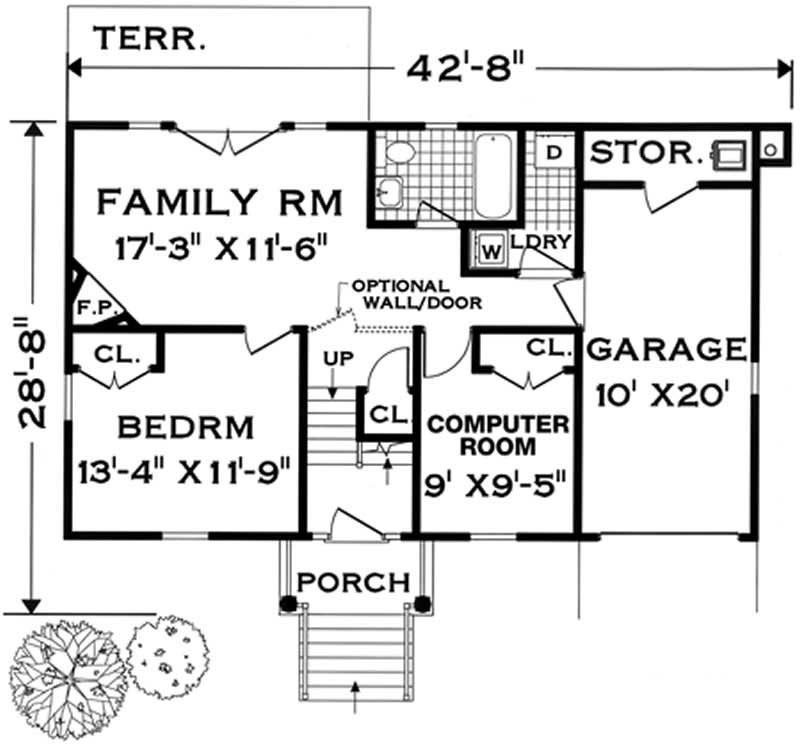

Home Plan: #105-1101 Floor Plan Basement - lower s Floor Plan Basement of Ranch Plan #105-1101

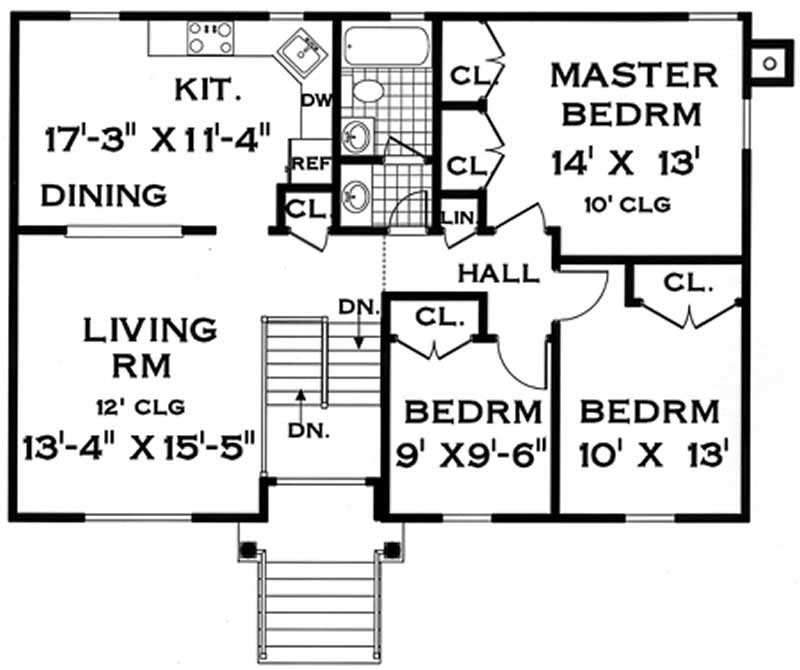

#105-1101 Floor Plan First Story - first Floor Plan First Story of Ranch Plan #105-1101
