House Plan #175-1077
Plan Name: 175-1077   Bedrooms: 1   Width: 75' 0"
Square Feet: 3508 Sq Ft.   Bathrooms: Full Baths: 0
Half Baths: 0
  Depth: 104' 10"
Floors: 1   Garage Bays: 0 Ridge Height: 0'

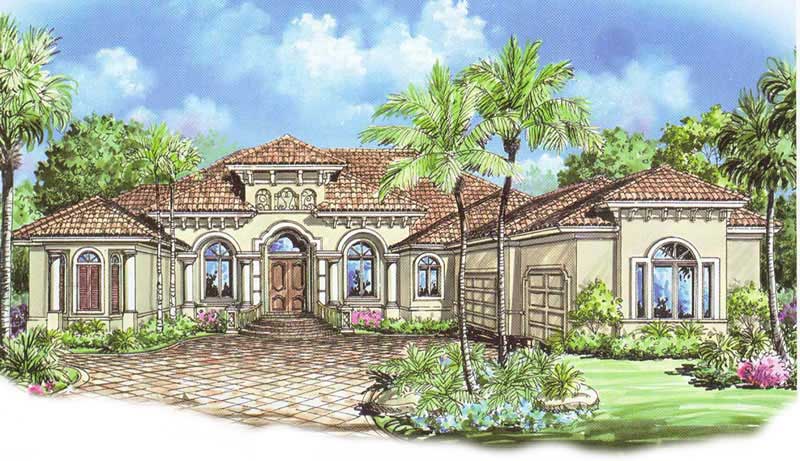

House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  CAD File $2,000.00
  PDF File Set $2,000.00
  Reproducible Master $2,000.00
FOUNDATION OPTIONS
  Slab $0.00
OTHER OPTIONS / ADD-ONS
Square Footage House Plan Description
Heated Sq Ft: 3508
Main Floor: 3508
Unfinished Sq ft

The Carlyle home plan has striking curb appeal with its well-balanced and detailed Mediterranean facade. The floor plan offers open, formal and casual living areas. Plenty of natural light and views to spacious outdoor areas are provided by the use of pocketing sliding-glass doors, French doors, windows, and mitered glass. This house plan offers three full bedrooms with four full baths. The family room features a built-in entertainment center and is easily furnished. The functional and spacious kitchen is open to the family room and dinette. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Home Features
  Architectural Styles
Beachfront
Coastal
Spanish
Concrete Block/ ICF Design
Mediterranean

  Building Lot Type
View Lot

  Ceiling Height
10 Foot Ceiling

  Exterior Wall Material
Stucco

  Garage Type
Attached Garage
Courtyard Entry
Side Entry

  Kitchen Features
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar

  Master Suite Features
Main Floor Master
Sitting Area
Master Bathroom
Walk In Closet

  Porches and Exterior Features
Screened in Lanai
Covered Lanai
Courtyard
Covered Rear Porch

  Roofing Material
Tiles

  Special Feature
Split Bathroom
Storage
Den
Vaulted Ceilings
Dining Room
Home Office
Family Room
Main Level Laundry

House Plan : 175-1077 Images
Reverse Plan Images
   House Plan #175-1077
Image not available.
  Home Plan: 175-1077 Floor Plan First Story
Floor Plan First Story
