This image shows the exterior for these Mediterranean House Plans.
4-Bedroom, 3490 Sq Ft Mediterranean House Plan - 133-1020 - Front Exterior

About Plan # 133-1020

About Plan # 133-1020

3490 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 69' 8" WIDTH 115' 0" DEPTH 3 GARAGE BAY

This award winning home has striking curb appeal with its well-balanced and detailed Mediterranean facade. The floor plan offers open, formal and casual living areas. Plenty of natural light and views to spacious outdoor areas are provided by the use of pocketing sliding-glass doors, French doors, windows, and mitered glass. This design offers four full bedrooms with four full baths. The family room features a built-in entertainment center with fireplace and is easily furnished. The functional and spacious kitchen is open to the family room and dinette. The plan is also available in a smaller version. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

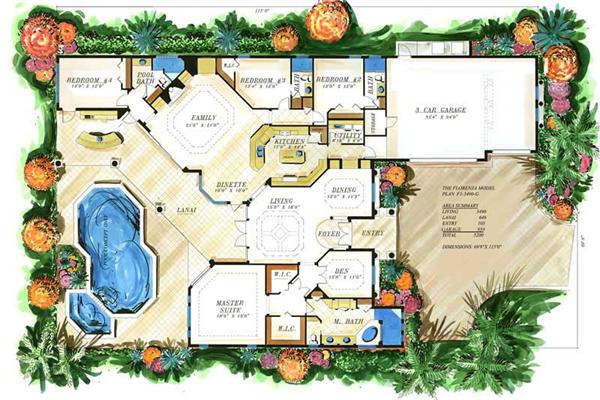

Home Plan: #133-1020 Floor Plan First Story Floor Plan First Story of Mediterranean Plan #133-1020
Home Plan: #133-1020 Floor Plan First Story Floor Plan First Story of Mediterranean Plan #133-1020
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1020
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
3490
Main Floor:
3490
Unfinished Sq Ft:
Garage :
673

Dimensions

Width:
69' 8"
Depth:
115' 0"
Ridge Height:
26' 0"

Architectural Styles

Mediterranean
Coastal
Spanish
Concrete Block/ ICF Design
Florida Style

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Dining Room
Home Office
Family Room
Main Level Laundry
Library
Den

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

Concrete

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard
Covered Rear Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom

Additional Notes from Designer

Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
