3-Bedroom, 1018 Sq Ft Ranch Home Plan - 167-1036 - Main Exterior
167-1036: Home Other Image-Front View

About Plan # 167-1036

About Plan # 167-1036

1018 SQUARE FEET 3 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 37' 0" WIDTH 42' 0" DEPTH 1 GARAGE BAY
This plan offers a living/dining room with a beautiful view of the front yard and a warming fireplace in the corner. An open kitchen adjoins the dining room and is U-shaped for convenience. Master bedroom with a walk-in closet.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

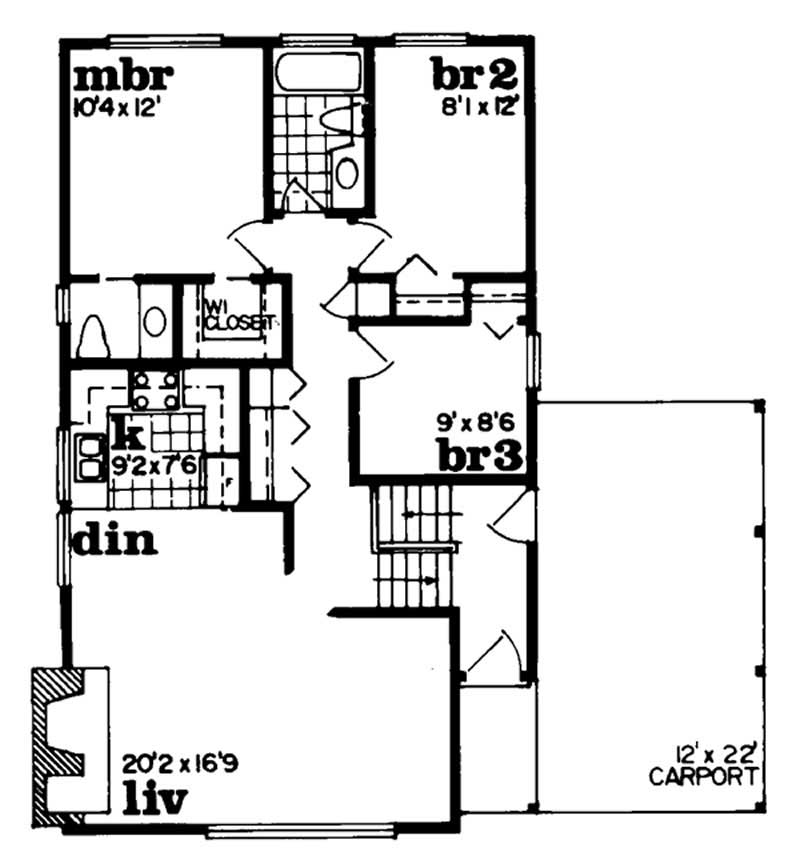

Home Plan: #167-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #167-1036

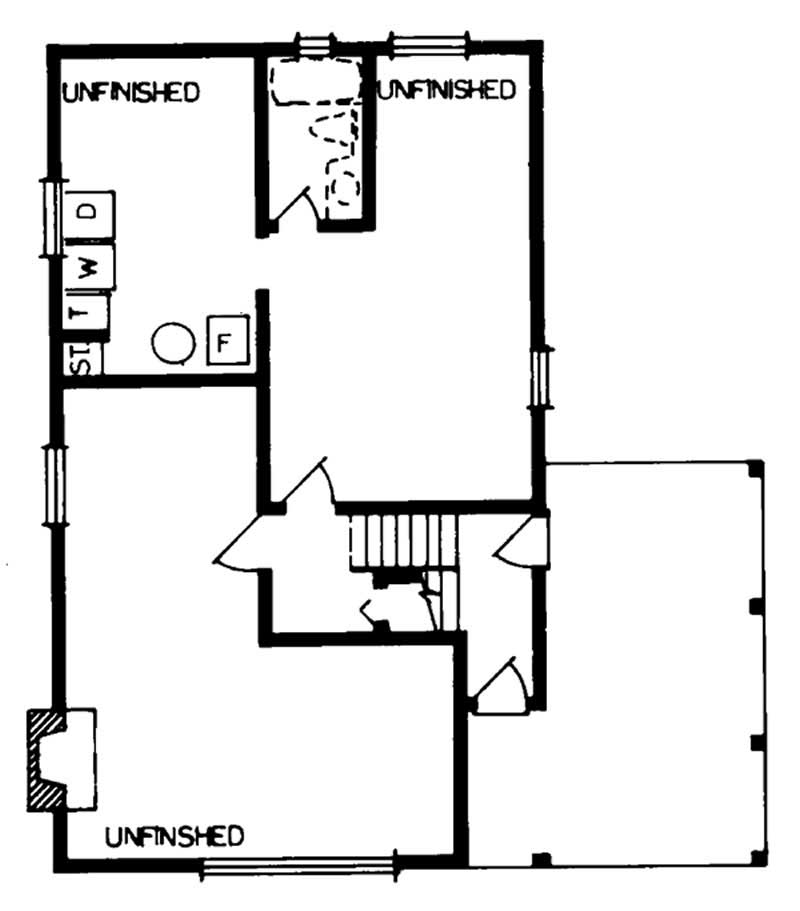

#167-1036 Floor Plan Basement - lower level Floor Plan Basement of Ranch Plan #167-1036
Home Plan: #167-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #167-1036
#167-1036 Floor Plan Basement - lower level Floor Plan Basement of Ranch Plan #167-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 167-1036
Floors:
2
Bedrooms:
3
Full Baths:
1

Square Footage

Heated Sq Feet:
1018
Main Floor:
1018
Unfinished Sq Ft:

Dimensions

Width:
37' 0"
Depth:
42' 0"
Ridge Height:
18' 0"

Architectural Styles

Ranch
Bungalow

Roofing Type

Gable

Roof Pitch

4/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Dining Room

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

For this designer, if you are ordering a CAD, the wait time could be 2-3 weeks, depending on the plan. If you need it sooner, please contact us to find out the wait time. Thank you! PLEASE NOTE! Plans from this designer could take up to 14 days to fulfill, regardless of the plan package that was ordered.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
