House Plan #136-1002
Plan Name: 136-1002   Bedrooms: 5   Width: 84' 3"
Square Feet: 3082 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 0
  Depth: 71' 0"
Floors: 1   Garage Bays: 3 Ridge Height: 0'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $1,200.00
  PDF File Set $1,400.00
  Reproducible Master $1,400.00
  CAD File $2,200.00
  Single Set with Construction License $1,100.00
  Basement $0.00
  Crawlspace $0.00
  Slab $0.00
  License to Build an Additional House $825.00
  License to Build an Additional House $600.00
  Right Reading Reverse $150.00
  Mirror Reverse $50.00
  Additional Set(s), Each $40.00
Square Footage House Plan Description
Heated Sq Ft: 3082
Main Floor: 3082
Unfinished Sq ft
Garage: 780

Looking for a home plan with plenty of space for you and your growing family? This is one home floor plan that’s all square footage! The stone and stucco Texas style house plan features a centrally located great room that looks up on a beautiful 12’ stone ceiling. Although this home floor plan is already packed with square footage, the vaulted ceiling creates the illusion of even more space.


The centrally located great room on this ranch house plan leads you to a landlocked dining room, locked in by a series of columns and arches above. The regal columns and arches make going to the dining room a grand experience - even when it’s to clear dishes from the table. Breakfast meals will be enjoyed in the cozy breakfast nook, found in the spacious kitchen.


Hope you have a lot of books - you’ll need them to fill the library, or study, located at the front of the home of this southern house plan. Whether you use the den as your personal retreat from the world, or a crafty place to help with the kids’ homework, this study is likely to be one of your favorite rooms in this home plan… that is, if you’re not already in love with the game room! The roomy game room can also be used as a fifth bedroom in this versatile floor plan and layout.


When you’ve had your fill of reading and games, you can retreat to the grand master suite. The master suite is complete with a sitting room and a private porch. Like many of the rooms in this large floor plan, the master bedroom hosts a large walk-in closet. If you run out of space in the closet, there are multiple built-ins around the home plan that provide extra storage space.


Last, but not least, guests in your new house will feel at home in the dedicated guest suite on this southern house plan. The guest suite features its own full-sized bathroom in order to create a complete and comfortable experience for visitors in your home – making this home plan perfect for those that love to entertain!

Home Features
  Architectural Styles
Texas Style
  Building Lot Type
Flat Site
  Exterior Wall Material
One Fireplace
  Garage Type
Attached Garage
Side Entry
  Kitchen Features
Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Peninsula/Eating Bar
  Master Suite Features
Main Floor Master
Master Bathroom
Sitting Area
Private Deck
Split Master Bedroom
  Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
  Special Feature
Dining Room
Guest Room
Game Room
Main Level Laundry
Split Bathroom
House Plan : 136-1002 Images
Reverse Plan Images

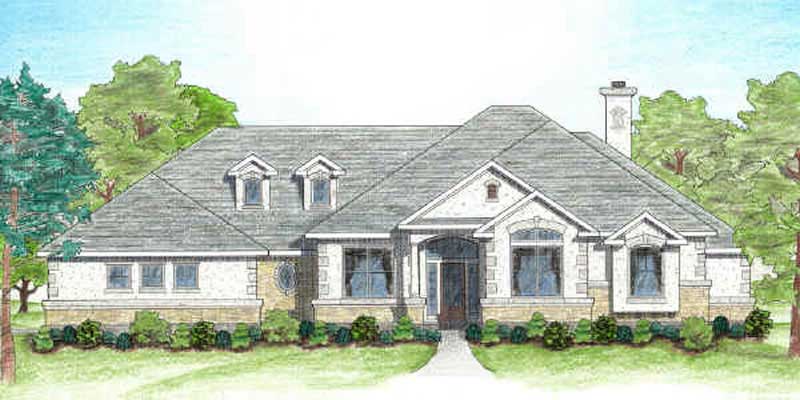

   House Plan #136-1002
Image not available.

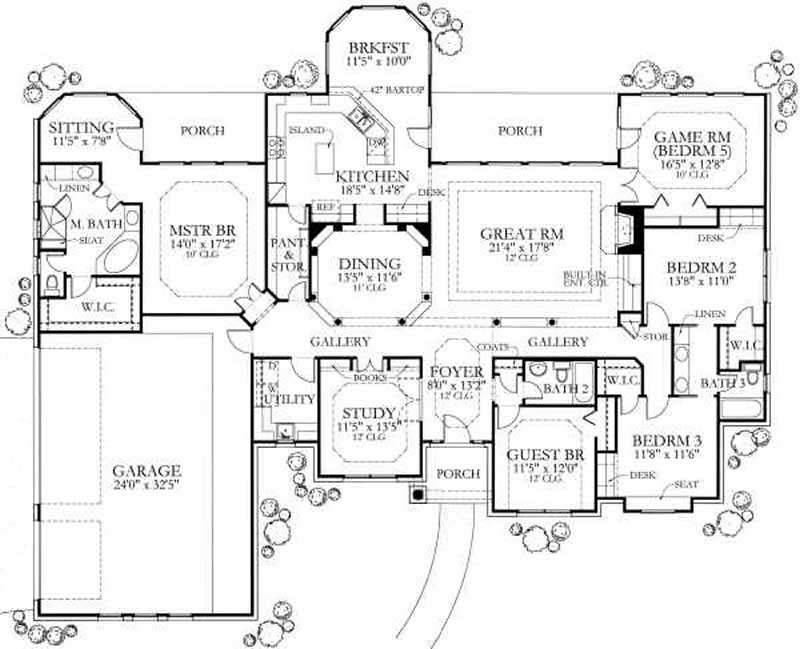

  Home Plan: 136-1002 Floor Plan Main Level
136-1002: Floor Plan Main Level
  Home Plan: 136-1002 Floor Plan Basement
136-1002: Floor Plan Basement Stairs Location on Main Level Floor Plan.
