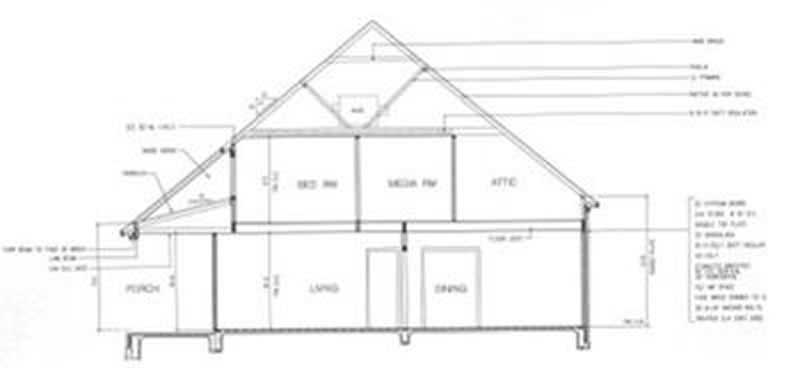

Side Elevation

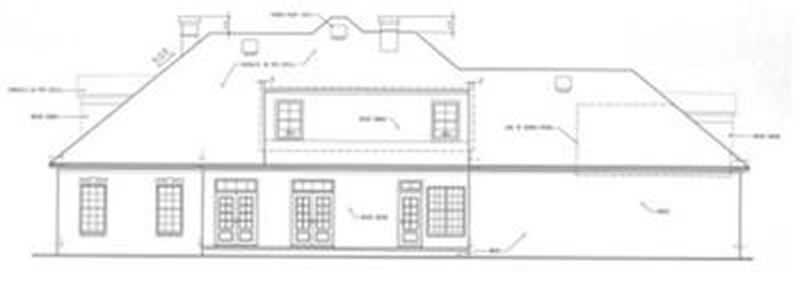

Rear Elevation
4-Bedroom, 3201 Sq Ft Mediterranean Home Plan - 113-1002 - Main Exterior
Side Elevation
Rear Elevation

About Plan # 113-1002

About Plan # 113-1002

3201 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 85' 0" WIDTH 43' 0" DEPTH 2 GARAGE BAY
This home plan includes four bedrooms, 3.5 baths, side-entry 2car garage with storage, formal dining room, kitchen with island, eating area, keeping area with fireplace, living room with fireplace, rear porch. Large utility area. Main level master bedroom. Upper level includes three bedrooms, media room, and spacious bonus area.

Each plan set includes the following:

  • Information Cover Sheet
  • Foundation Plan
  • Detailed Floor Plans
  • Window & Door Schedules
  • Electrical Layout
  • Exterior Elevations
  • Building Sections
  • Complete Construction Details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

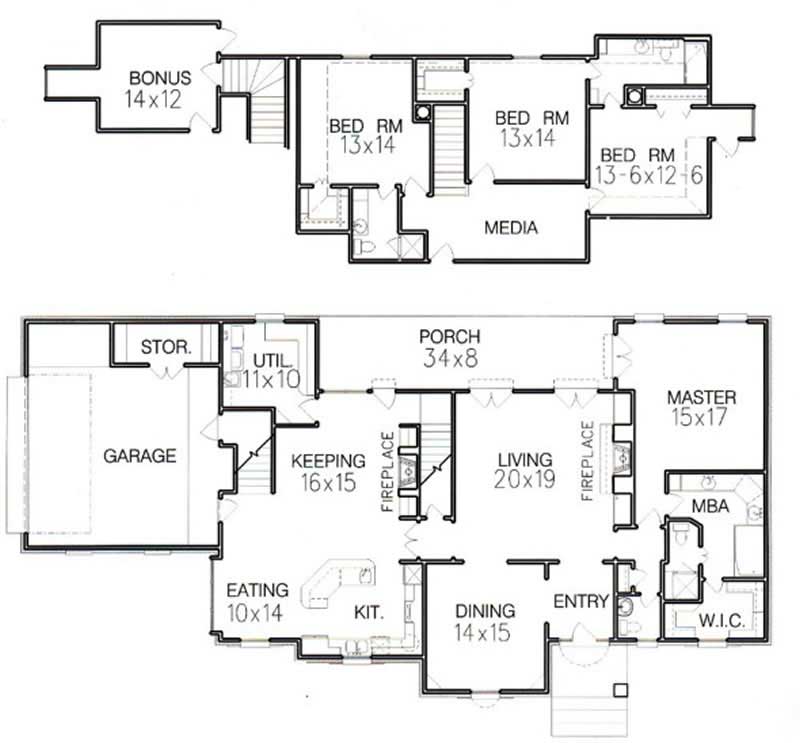

Home Plan: #113-1002 Floor Plan First Story - s Floor Plan First Story of Mediterranean Plan #113-1002
Home Plan: #113-1002 Floor Plan First Story - s Floor Plan First Story of Mediterranean Plan #113-1002
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 113-1002
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3201
Main Floor:
2160
Upper Floor:
1041
Unfinished Sq Ft:
Bonus Room:
200

Dimensions

Width:
85' 0"
Depth:
43' 0"
Ridge Height:
30' 0"

Architectural Styles

Mediterranean
Traditional

Exterior Wall Material

Brick
Stucco

Roofing Type

Hip

Roof Pitch

10/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Dining Room
Media Room

Garage Type

Attached Garage

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans. The disks will be shipped to you.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
