About Plan # 120-1831

About Plan # 120-1831

1392 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 54' 0" DEPTH 2 GARAGE BAY

This Ranch style house plan is both compact and affordable. Its well-planned floor plan layout maximizes the use of its space while offering the amenities desired by most homeowners, including a kitchen with a snack bar and breakfast nook and a master bedroom suite with a walk-in closet and full bathroom with a shower stall and an attractive corner tub. This affordable home plan works especially for a family just starting out or for empty nesters ready to downsize.

Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

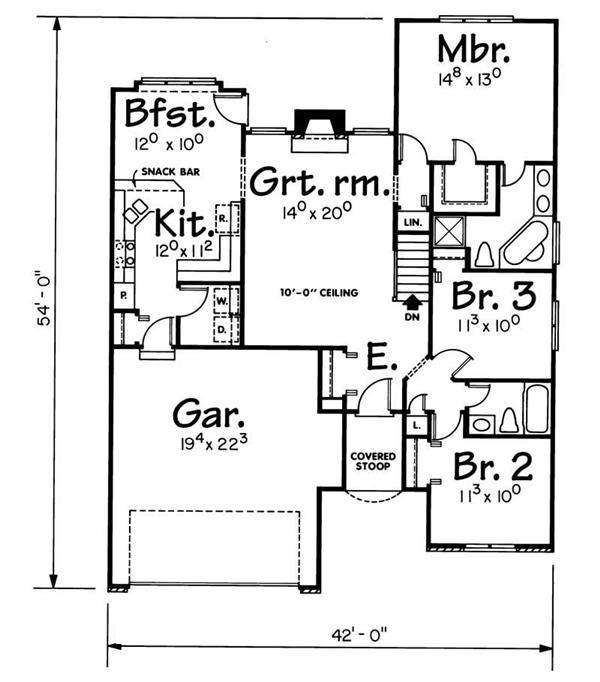

Home Plan: #120-1831 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #120-1831
