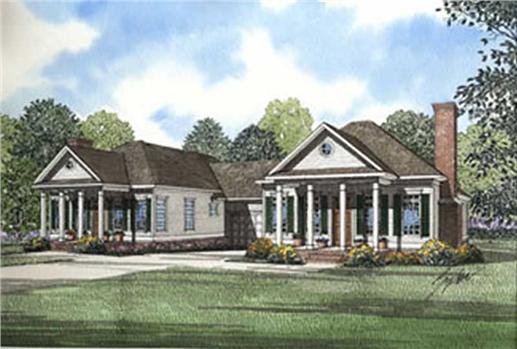

Front elevation of Multi-Unit home (ThePlanCollection: House Plan #153-1549)
Rear Elevation
4-Bedroom, 1172 Sq Ft Multi-Unit Home Plan - 153-1549 - Main Exterior
Rear Elevation

About Plan # 153-1549

About Plan # 153-1549

1172 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 78' 8" WIDTH 53' 0" DEPTH 2 GARAGE BAY

Picture yourself coming home to this southern traditional duplex home. Sit back and watch the sun set from the lovely covered porch of this traditional neighborhood design. Traveling inside you'll feel the openness and elegance created by the ten foot ceilings and intricate boxed columns which lead into the formal dining room. Entertaining will be a success with the convenient kitchen with eat-at bar open to the dining room. End your busy day by retiring to the Master suite with whirlpool tub and shower. The second bedroom or optional study completes this design.



Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

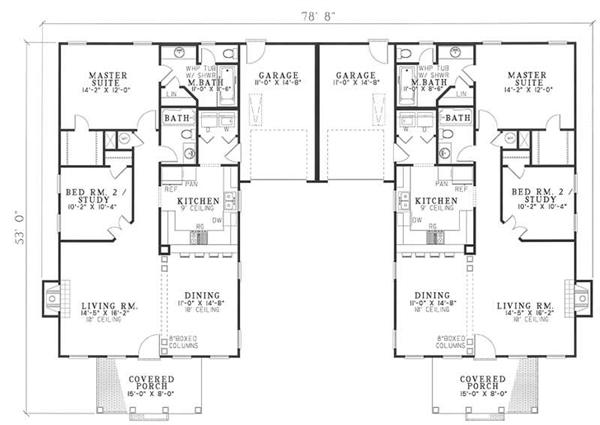

Home Plan: #153-1549 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #153-1549
Home Plan: #153-1549 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #153-1549
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1549
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
1172
Main Floor:
1172
Unfinished Sq Ft:
Garage :
322

Dimensions

Width:
78' 8"
Depth:
53' 0"

Architectural Styles

Colonial
Duplex/Multi-Unit
Southern
Traditional

Roofing Type

Gable

Ceiling Height

9 Foot Ceiling

Special Feature

Mother in law apartment
Dining Room

Garage Type

Attached Garage

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
