House Plan #Chestnut Lane

Home Plan ID: 3803 Width: 52'0" Bedrooms: 3
Square Feet: 1732 Sq Ft. Depth: 63'10" Bathrooms: 2
Stories: Single Story Garage Bays: 2

Chestnut Lane

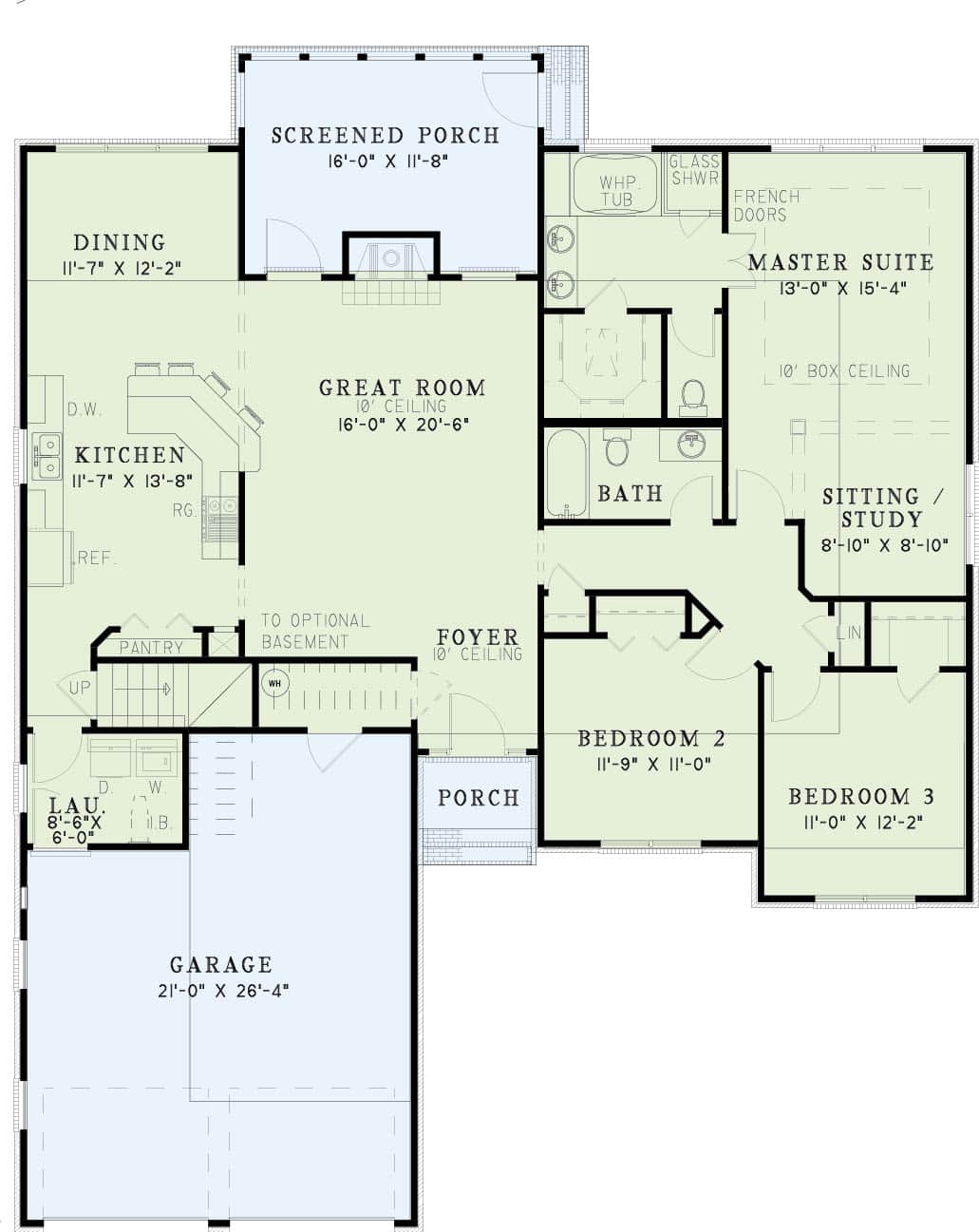

Home Plan: Chestnut Lane Main Floor Plan

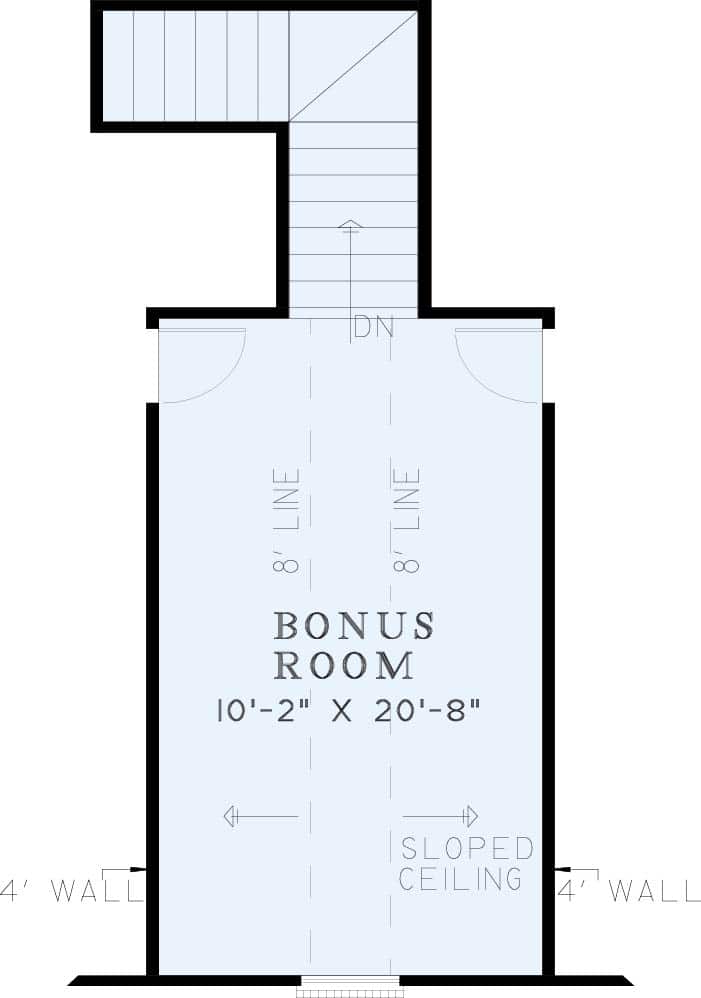

Home Plan: Chestnut Lane Bonus Room

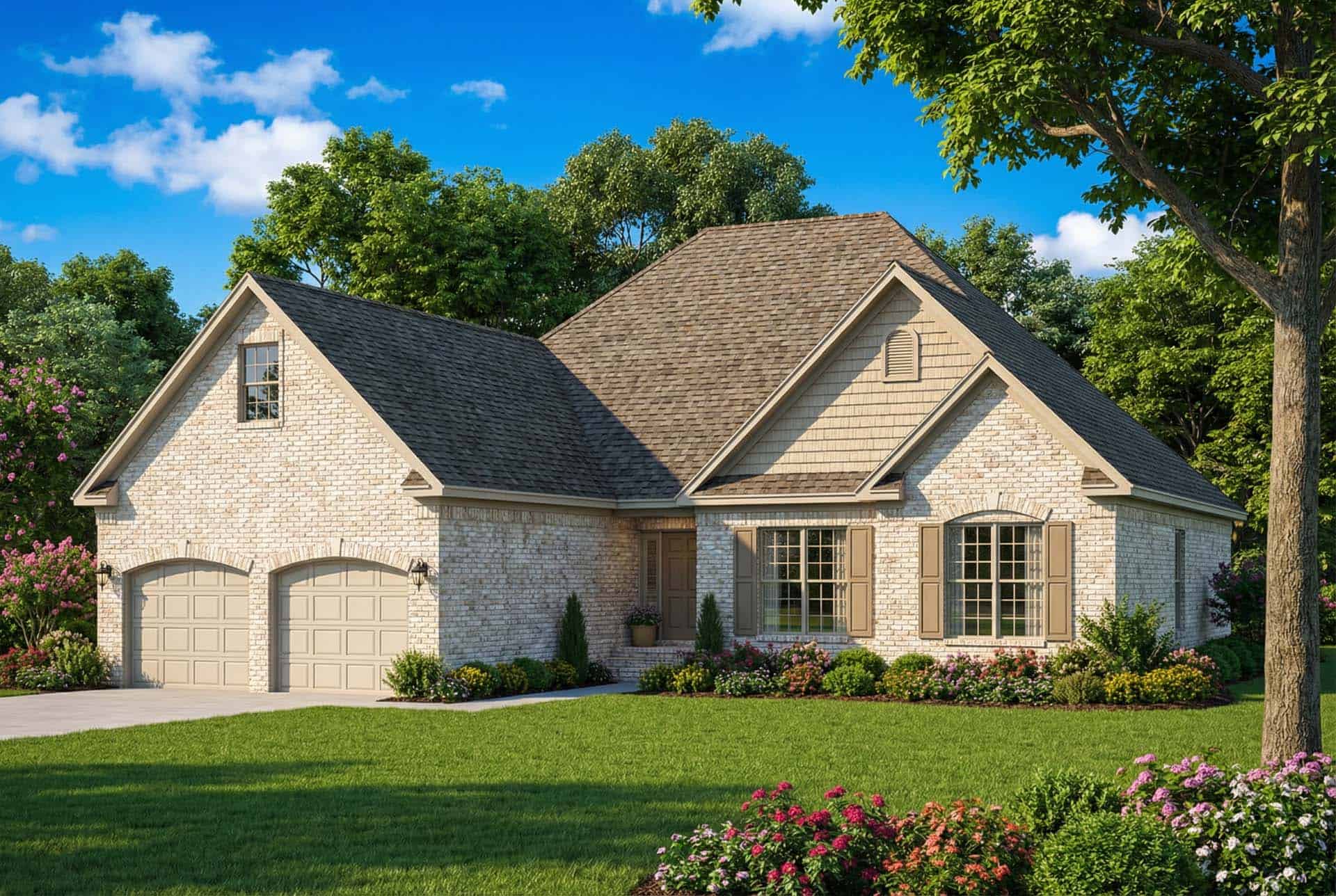

Home Plan: Chestnut Lane EXTERIOR ELEVATIONS

House Plan Pricing

Construction Sets

CAD File $1,350.00
Reproducible Set $790.00
Eight Sets of Blueprints $640.00
Four Sets of Blueprints $610.00
One Set of Blueprints $545.00

Foundation Options

Basement Option $250.00
Crawlspace $0.00
Slab On Grade $0.00
Daylight Basement $250.00

Other Options

Materials List $125.00
NDG Right Reading Reverse $50.00
Additional Set(s) $50.00

House Plan Description

Form and function combine in this home. A covered porch protects visitors from the elements. Walking into the foyer, they are greeted with a stunning view of the great room that includes a ten-foot ceiling, inviting fireplace, entry to the screened porch and a smooth transition into the dining room and kitchen. A sitting room adjoins the master suite for late-night reading after a relaxing bath in the whirlpool tub.

Home Plan Summary

House Plan Name: Chestnut Lane
Bedrooms: 3
Bathrooms: 2
Half Bathrooms: 0
Stories: Single Story
Garage Bays: 2
Width: 52'0"
Depth: 63'10"
Ridge Height: 28-4

Square Footage

Total Living Area: 1732 Sq Ft.
Main Floor: 1732 Sq Ft.
Bonus Room: 243 Sq Ft.
Garage: 585 Sq Ft.

Home Features

Ceiling Height 9 Foot Ceiling
Garage Type Attached Garage
Home Plan Style Traditional
Contemporary
Roofing Type Gable
Special Feature Dining Room
Fireplace
