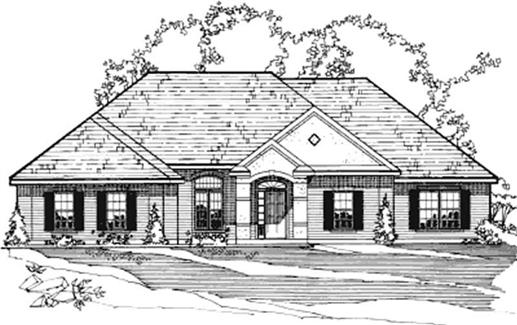

House Plan #172-1029
House Plan #172-1029
Photographs may reflect modified designs. Copyright held by designer.

About Plan # 172-1029

About Plan # 172-1029

House Plan Details

2103 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 66' 0" WIDTH 65' 4" DEPTH 3 GARAGE BAY

House Plan Description

The Sierra is a spacious home all on one level. You'll enjoy the formal dining room and great room for entertaining and the hearth room for more intimate family gatherings. You'll also enjoy the main level laundry and large master suite.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

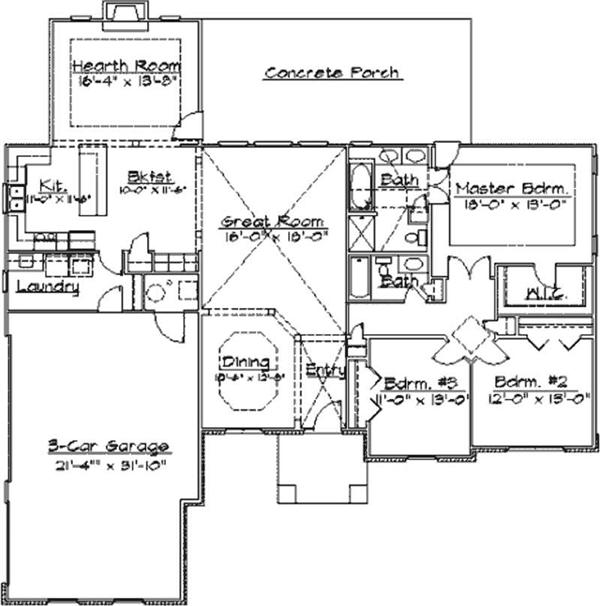

Home Plan: #172-1029 Floor Plan First Story Main Level Floor Plan
Home Plan: #172-1029 Floor Plan First Story - Main Level Floor Plan Main Level Floor Plan

Plan specs and features

Summary Information

House Plan:
# 172-1029
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2103
Main Floor:
2103
Unfinished Square Feet:

Garage :
688

Dimensions

Width:
66' 0"
Depth:
65' 4"
Ridge Height:
23' 0"

Architectural Styles

Contemporary
European
French

Exterior Wall Material

Brick
Stucco
Vinyl Siding

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

PRICING OPTIONS

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This includes a license to build a single house plus one full set of construction drawings printed on a reproducible medium. A reproducible set allows you to make as many copies as needed for construction of a single home or to take them to a local professional for modifications. To build more than one house, please contact us for a multi-use building license.

This set allows you to review the home plan in detail and obtain bids. Stamped "Not for Construction." It is illegal for a builder to construct a house from plans stamped this way.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
{{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
