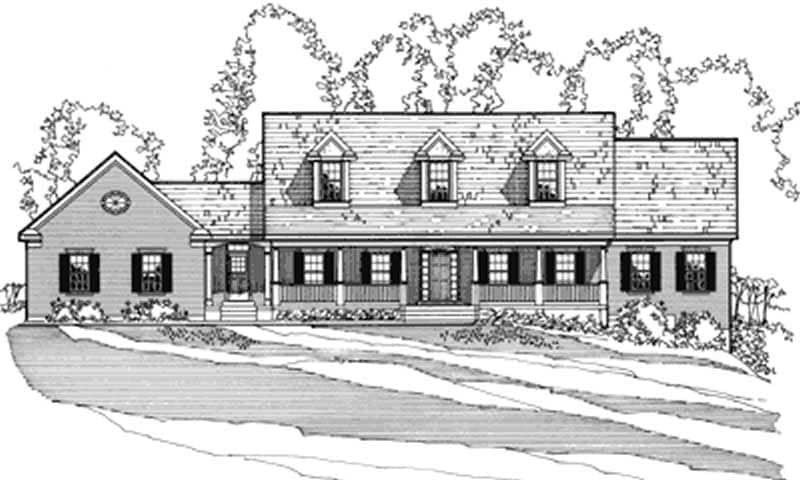

Main image for house plan # 3183

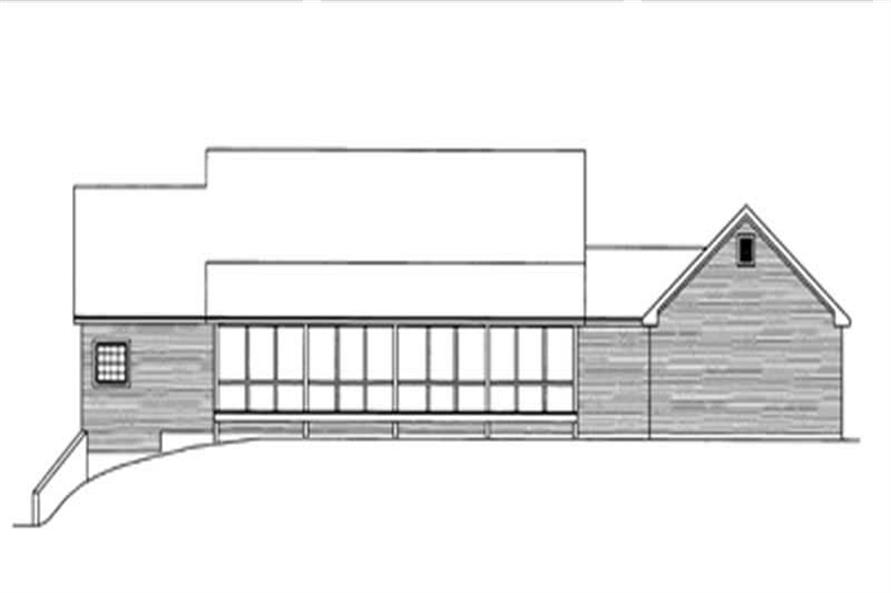

Rear Elevation

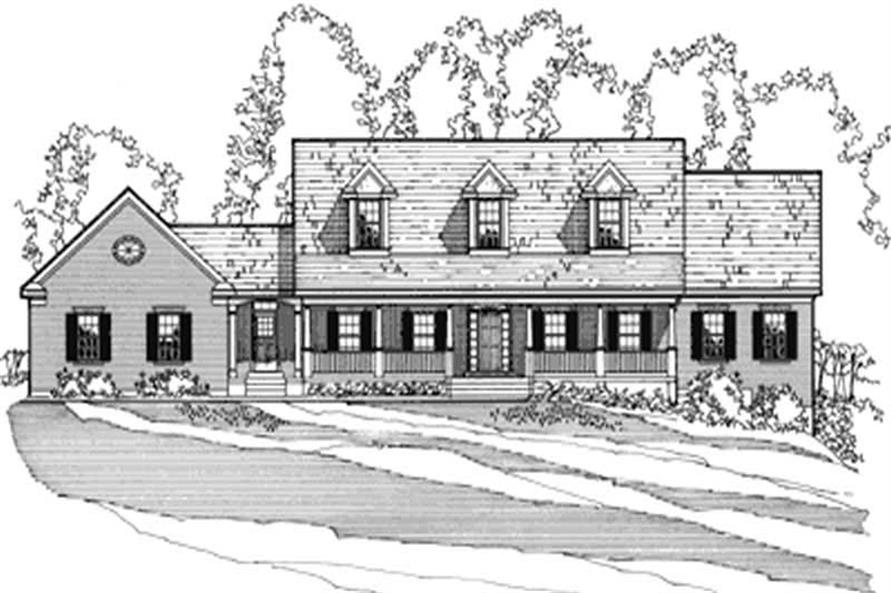

4-Bedroom, 2140 Sq Ft Country House Plan - 172-1005 - Front Exterior

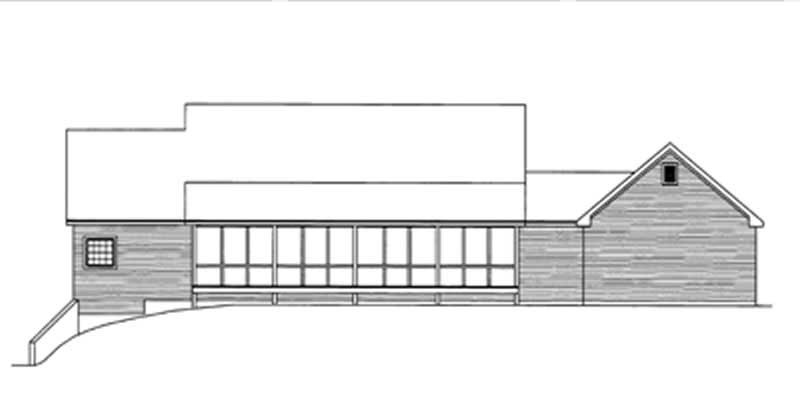

Rear Elevation

About Plan # 172-1005

About Plan # 172-1005

2140 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 97' 8" WIDTH 54' 0" DEPTH 2 GARAGE BAY
The Brazito offers the charm of a classic cape cod style home with all the conveniences of a one level home. Entertain guests in a large formal dining room, and formal living room. It also boasts a large entry, budroom and screened porch.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

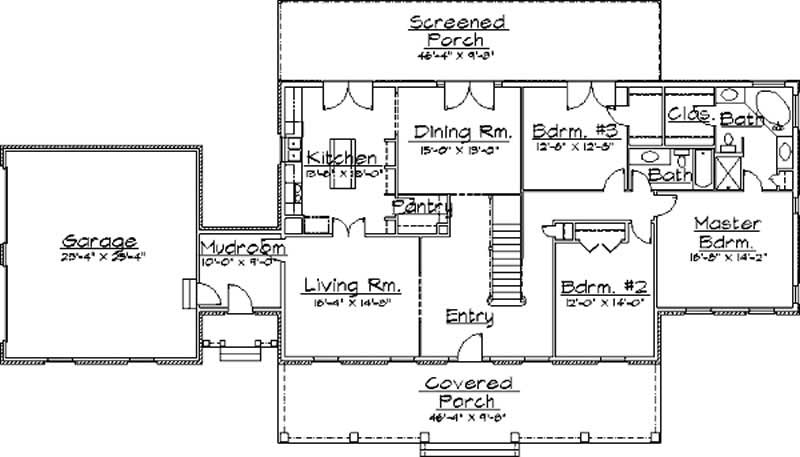

Home Plan: #172-1005 Floor Plan First Story - main Floor Plan First Story of Country Plan #172-1005

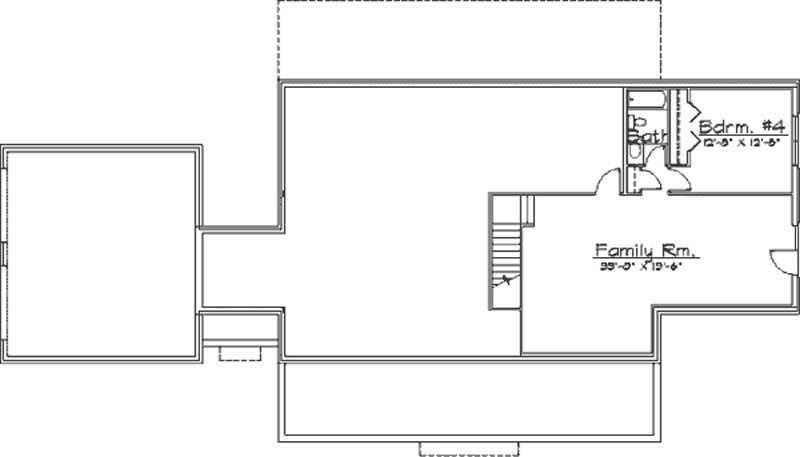

#172-1005 Floor Plan Basement - basement Floor Plan Basement of Country Plan #172-1005
Home Plan: #172-1005 Floor Plan First Story - main Floor Plan First Story of Country Plan #172-1005
#172-1005 Floor Plan Basement - basement Floor Plan Basement of Country Plan #172-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 172-1005
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2140
Main Floor:
2140
Unfinished Sq Ft:
Lower Floor:
2091
Garage :
624

Dimensions

Width:
97' 8"
Depth:
54' 0"
Ridge Height:
26' 0"

Architectural Styles

Country
Craftsman
Shingle

Exterior Wall Material

Brick
Shakes

Roofing Type

Gable/Dormer

Roofing Material

Other Composites

Roof Pitch

10/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Guest Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
