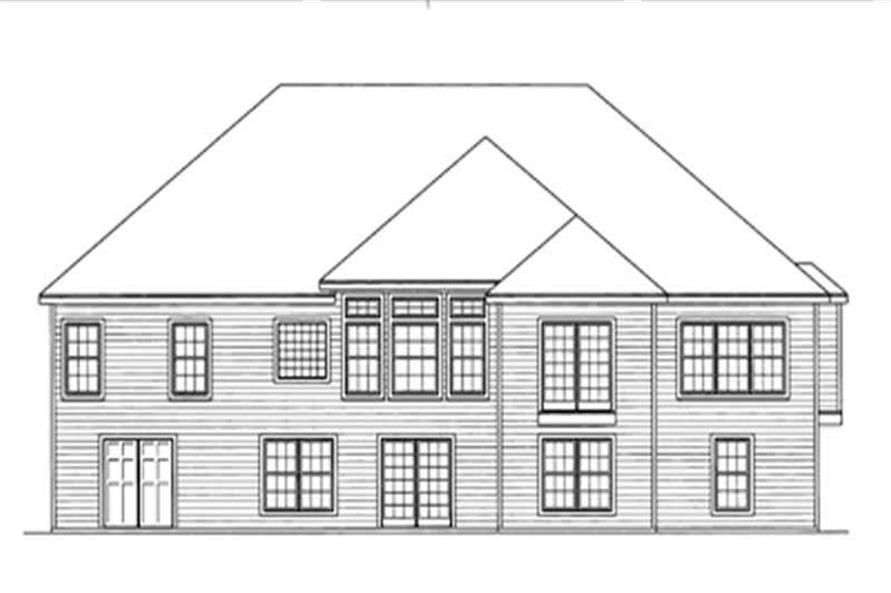

Rear Elevation

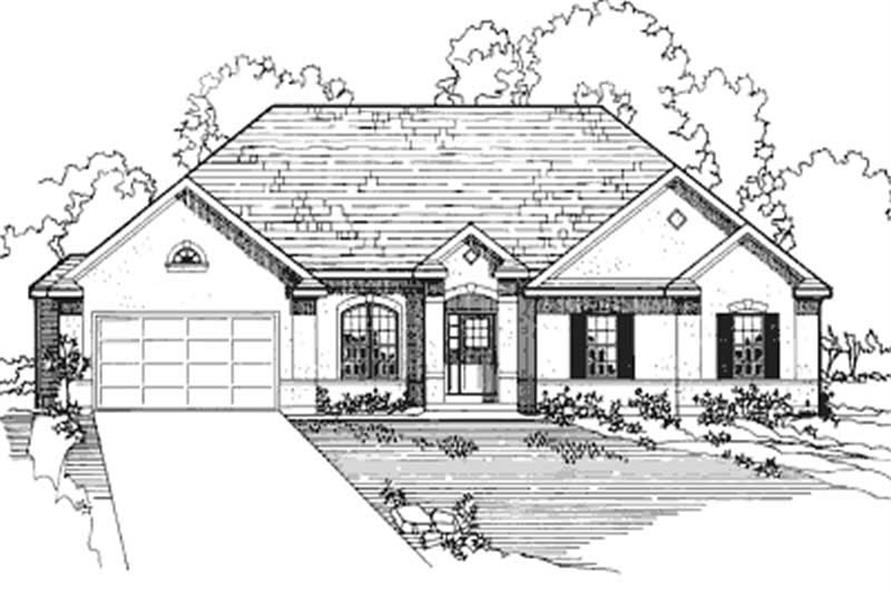

4-Bedroom, 2172 Sq Ft European House Plan - 172-1010 - Front Exterior
Rear Elevation

About Plan # 172-1010

About Plan # 172-1010

2172 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 68' 0" WIDTH 46' 0" DEPTH 2 GARAGE BAY
The Whitaker has much to offer with it's formal Dining room, Great Room, Hearth Room, Main level Laundry and three bedrooms and two baths all on the main level. It also offers a large Master Bedroom with jetted tub and raised ceilings through the Foyer and Great Room. The home is designed for a rear walk out basement.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

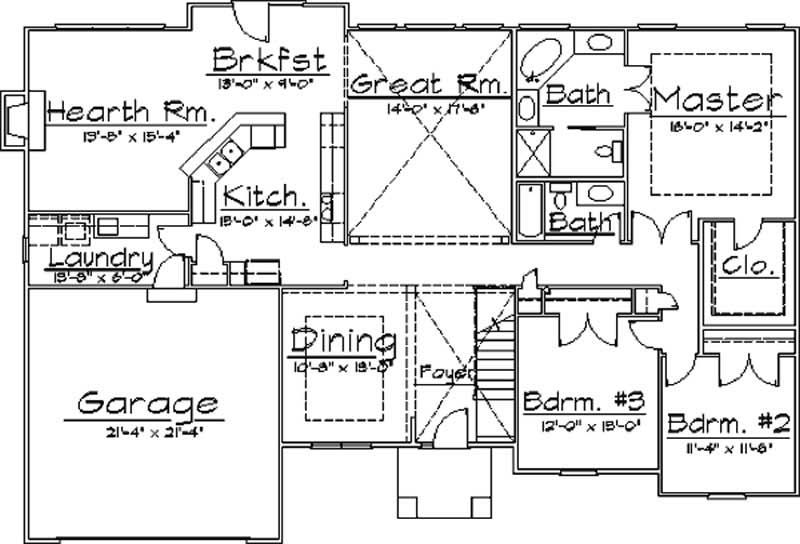

Home Plan: #172-1010 Floor Plan First Story - main level Floor Plan First Story of European Plan #172-1010

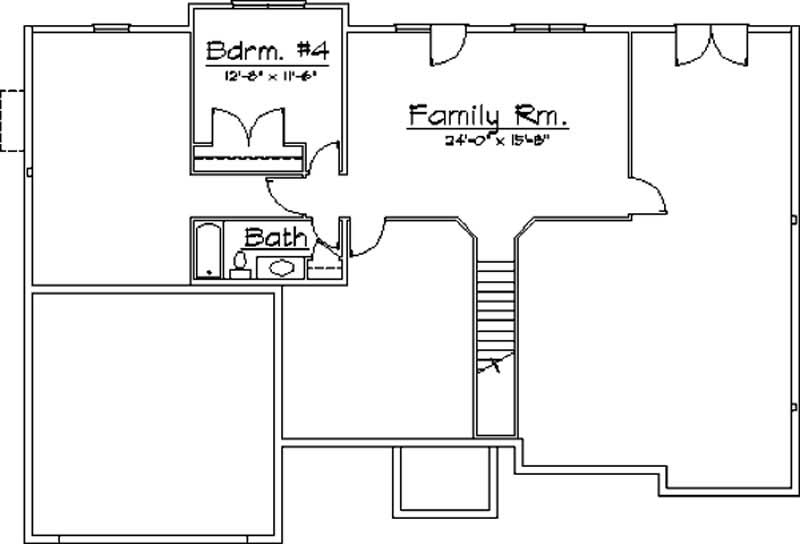

#172-1010 Floor Plan Basement - basement Floor Plan Basement of European Plan #172-1010
Home Plan: #172-1010 Floor Plan First Story - main level Floor Plan First Story of European Plan #172-1010
#172-1010 Floor Plan Basement - basement Floor Plan Basement of European Plan #172-1010
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 172-1010
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2172
Main Floor:
2172
Unfinished Sq Ft:
Lower Floor:
2034
Garage :
456

Dimensions

Width:
68' 0"
Depth:
46' 0"
Ridge Height:
25' 0"

Architectural Styles

European
French
Georgian

Exterior Wall Material

Vinyl Siding
Stucco

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4
