About Plan # 116-1124

About Plan # 116-1124

5165 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 93' 0" WIDTH 104' 0" DEPTH 3 GARAGE BAY

This striking Modern style home plan with Luxury influences (House Plan #116-1124) has 5165 square feet of living space. The 2 story floor plan includes 5 bedrooms, 5 full bathrooms, and 1 half bath.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

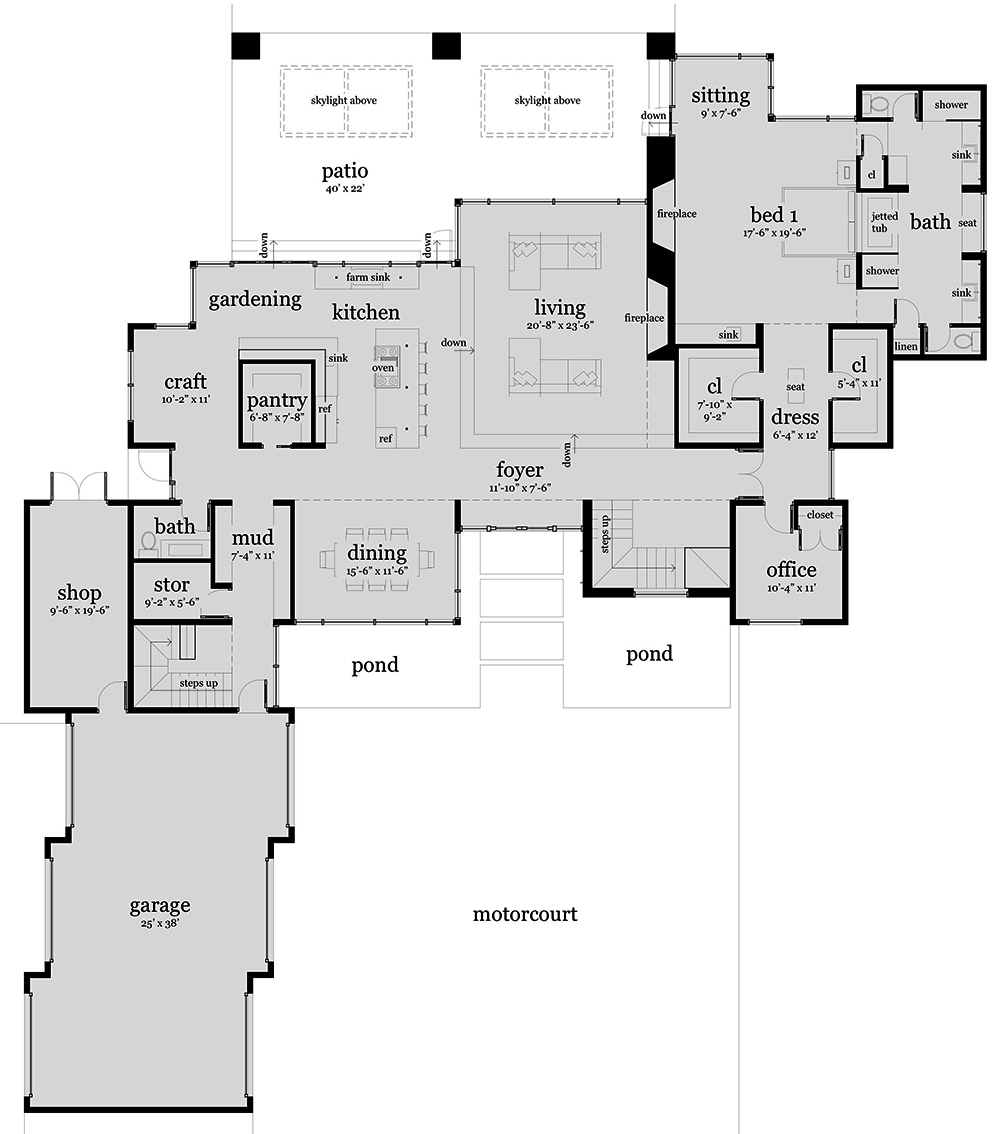

Home Plan: #116-1124 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1124

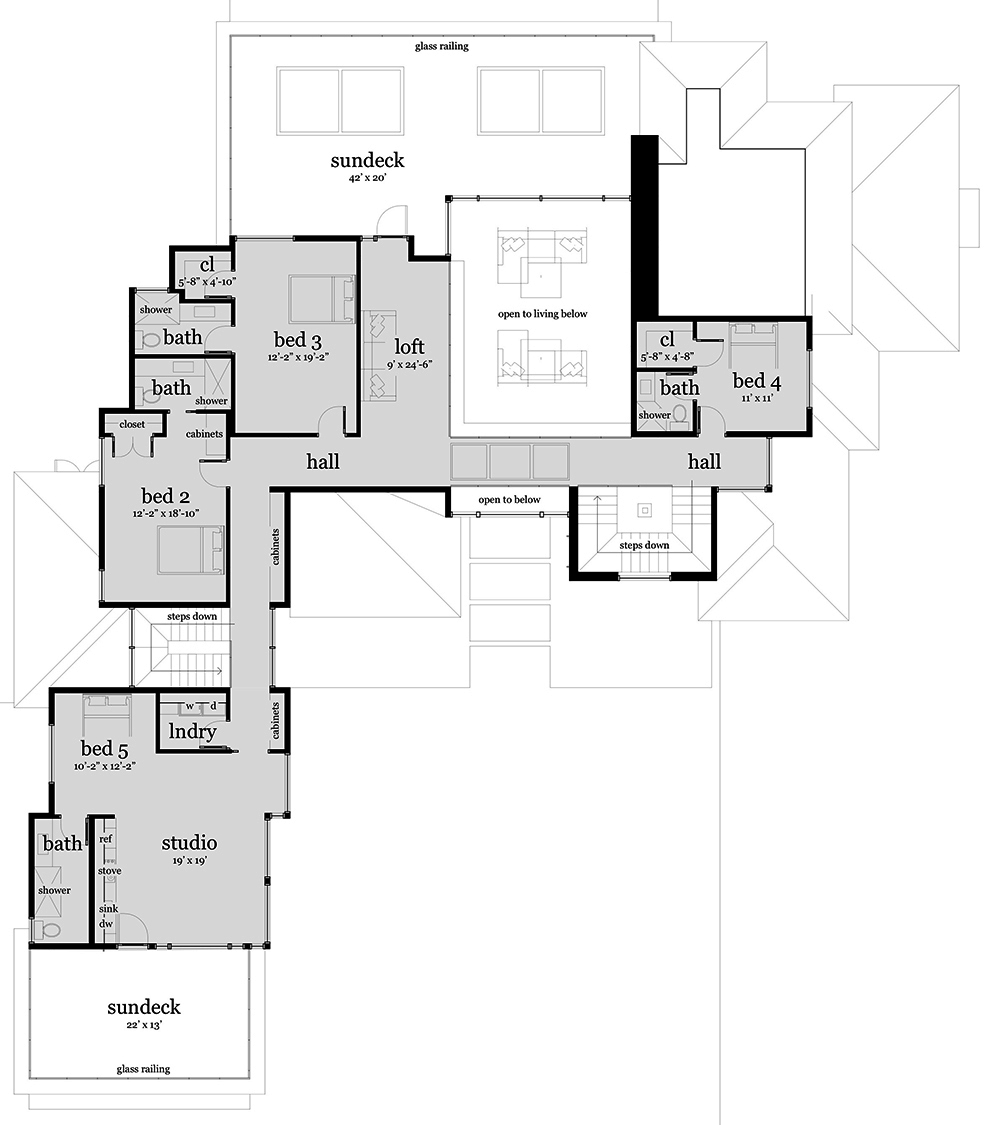

#116-1124 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1124
Home Plan: #116-1124 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1124
#116-1124 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1124
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1124
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
5165
Main Floor:
3020
Upper Floor:
2145
Unfinished Sq Ft:
Main Floor:
200
Garage :
800
Porch :
792

Dimensions

Width:
93' 0"
Depth:
104' 0"
Ridge Height:
28' 0"

Architectural Styles

Luxury
Modern
California Style

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Flat

Roofing Material

Metal

Roof Pitch

3/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Swimming Pool
Dining Room
Home Office
Mud Room
Loft
Storage
Second Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Butler's Pantry
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
