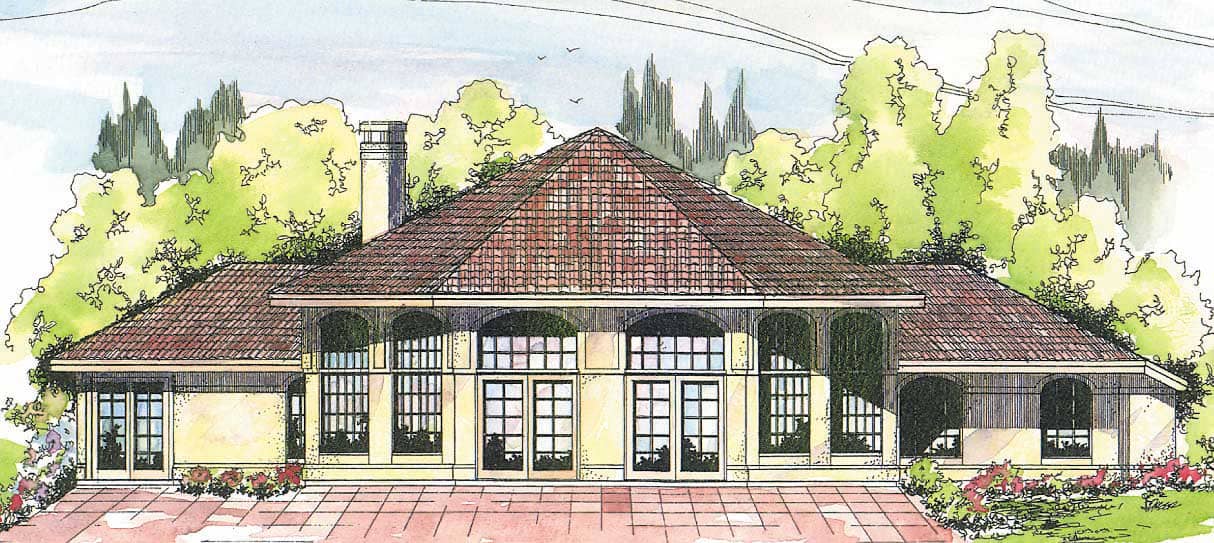

Front elevation of Vacation Homes home (ThePlanCollection: House Plan #108-1350)
108-1350 house plan front elevation
108-1350 house plan right elevation
108-1350 house plan left elevation
3-Bedroom, 2603 Sq Ft Ranch House Plan - 108-1350 - Front Exterior
108-1350 house plan front elevation
108-1350 house plan right elevation
108-1350 house plan left elevation

About Plan # 108-1350

About Plan # 108-1350

2603 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 75' 0" WIDTH 75' 8" DEPTH 2 GARAGE BAY

This two story, Mediterranean house plan has 2603 total living square feet. Abundant natural light washes into the hexagonal, vaulted great room of this Spanish style home plan through high, arched windows and French doors that lead out onto the wrap-around patio. The large, open kitchen has a long conversation bar and a walk-in pantry. The wide loft that overlooks the great room has two deep storage areas.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

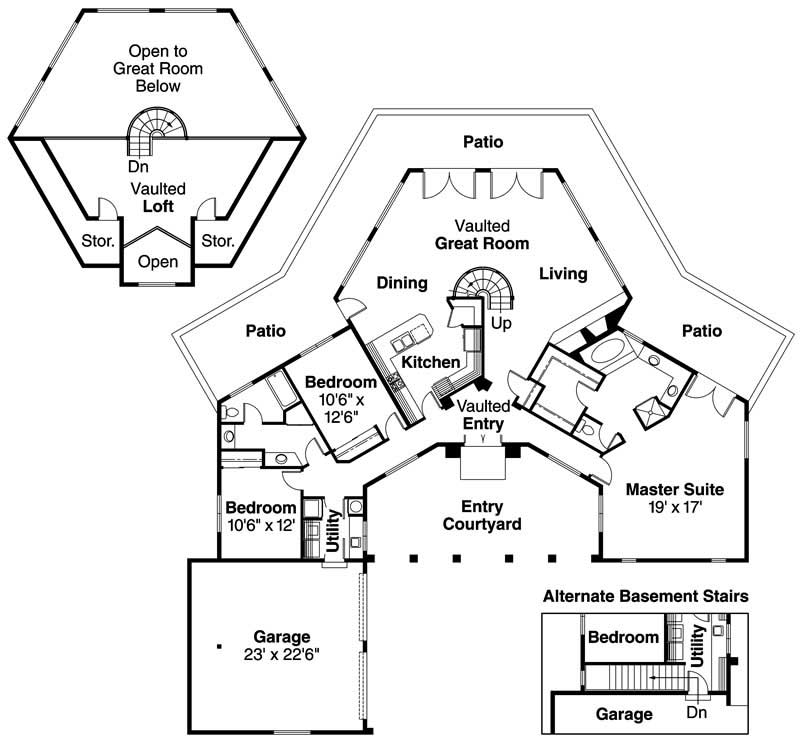

Home Plan: #108-1350 Floor Plan First Story - s Floor Plan First Story of Ranch Plan #108-1350
