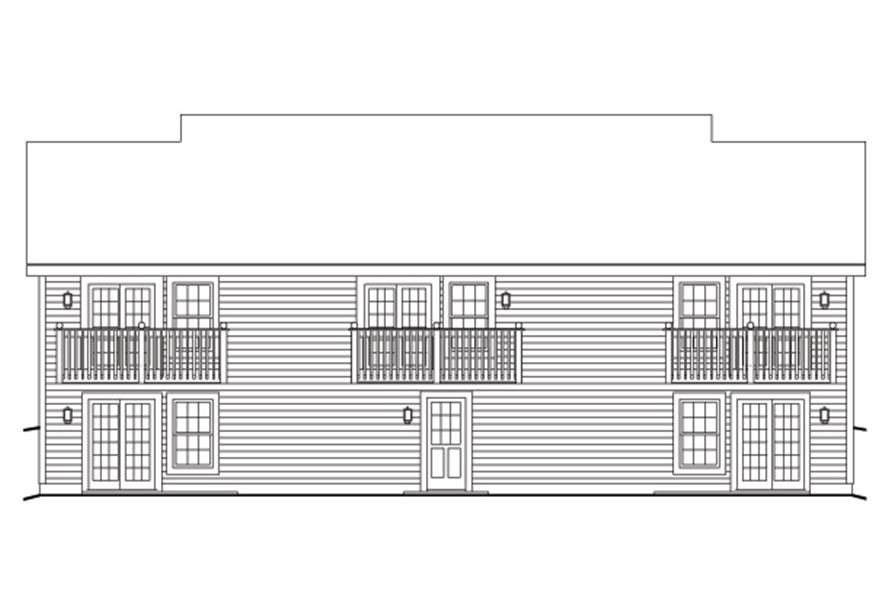

138-1120: Home Plan Rear Elevation

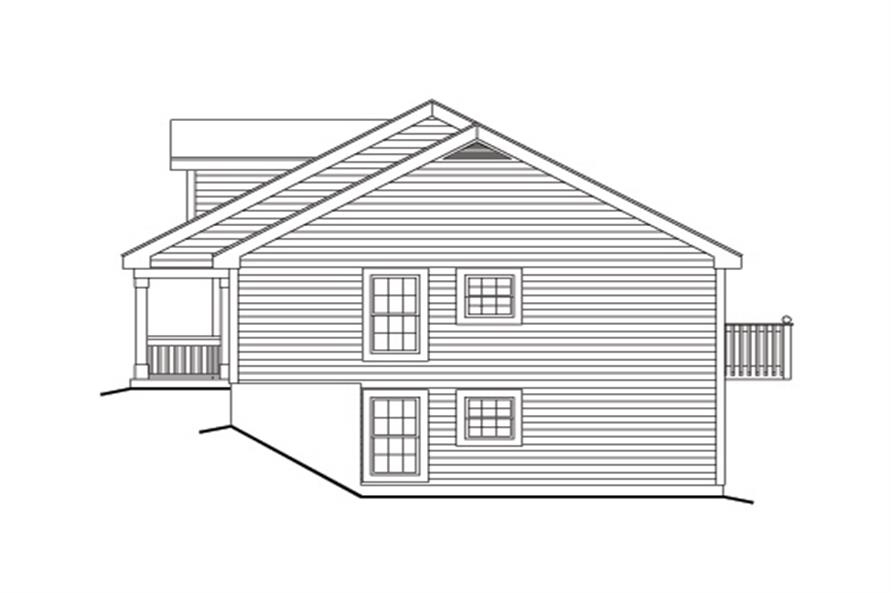

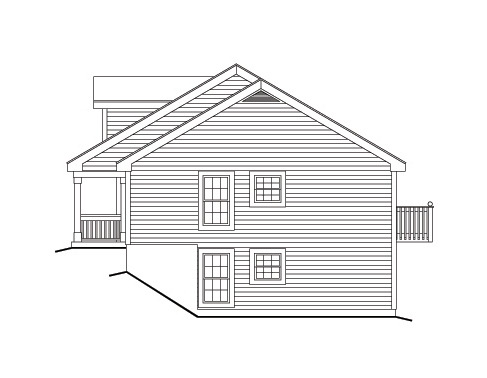

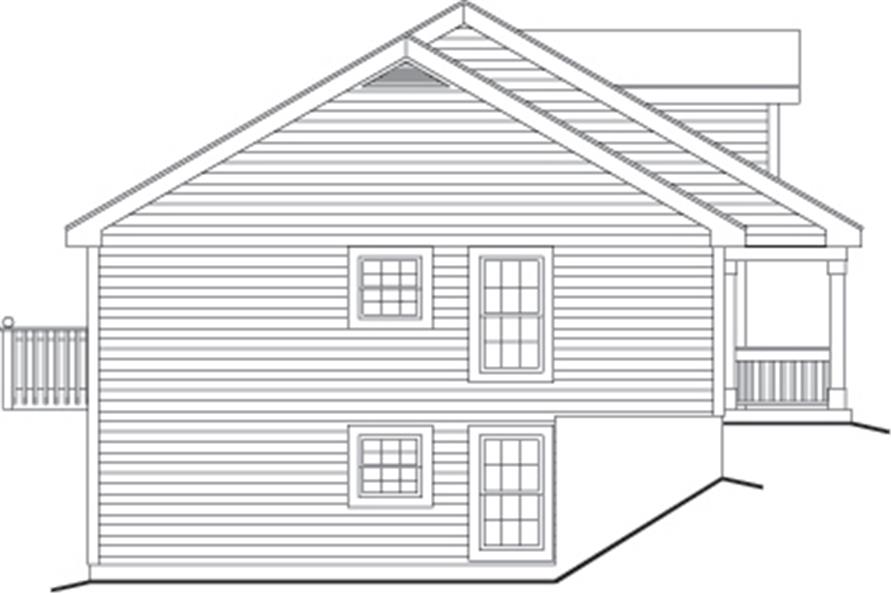

138-1120: Home Plan Left Elevation
138-1120: Home Plan Right Elevation

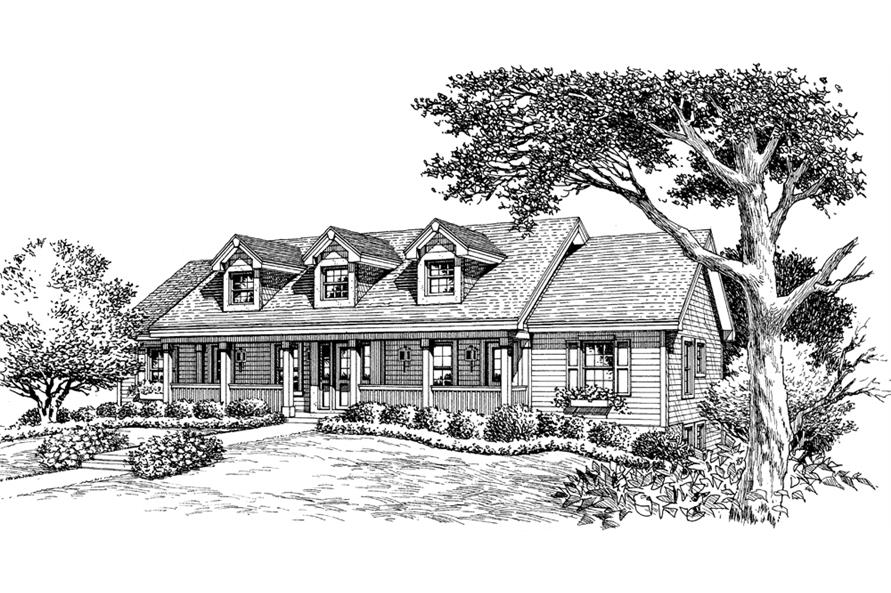

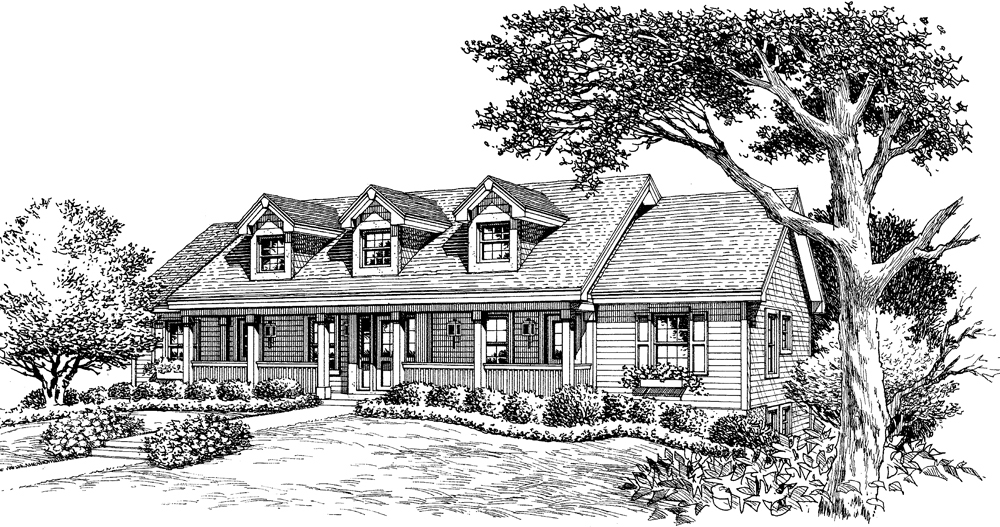

138-1120: Home Other Image-Front View
4-Bedroom, 2901 Sq Ft Multi-Unit Home Plan - 138-1120 - Main Exterior
138-1120: Home Plan Rear Elevation
138-1120: Home Plan Left Elevation
138-1120: Home Plan Right Elevation
138-1120: Home Other Image-Front View

About Plan # 138-1120

About Plan # 138-1120

2901 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 62' 0" WIDTH 40' 0" DEPTH 0 GARAGE BAY

This stunning country five-plex plan has 517-600 living sq ft per unit. The 2-story floor plan includes 1 bedroom per unit. In all, the structure has 2901 living square feet, 4 bedrooms, and 4 full baths.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Exterior elevations
  • Roof plan
  • Details Sheet
  • Sections
  • Interior elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

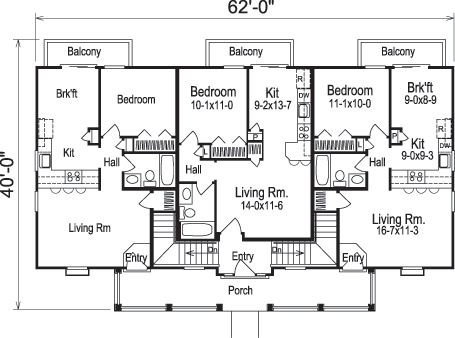

Home Plan: #138-1120 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #138-1120

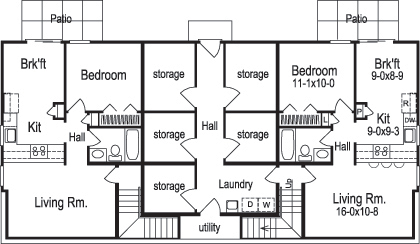

#138-1120 Floor Plan Basement - lower level Floor Plan Basement of Multi-Unit Plan #138-1120
Home Plan: #138-1120 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #138-1120
#138-1120 Floor Plan Basement - lower level Floor Plan Basement of Multi-Unit Plan #138-1120
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 138-1120
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
2901
Main Floor:
1717
Lower Floor:
1184
Unfinished Sq Ft:

Dimensions

Width:
62' 0"
Depth:
40' 0"

Architectural Styles

Country
Duplex/Multi-Unit
Condominiums

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable
Gable/Dormer

Roofing Material

Asphalt Shingles

Special Feature

Storage
Balcony
Open Floor Plan

Exterior Wall Framing

2x4

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master

Additional Notes from Designer

Units A and C each have 600 square feet of living area, Unit B has 517 square feet of living area, and Units D and E each have 592 square feet of living area.
This fiveplex has 1,717 square feet of living area on the first floor and 1,184 square feet of living area on the lower level.


PLEASE NOTE: Not all plans from this designer can be modified! Please check before sending in a mod request. Thank you!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
