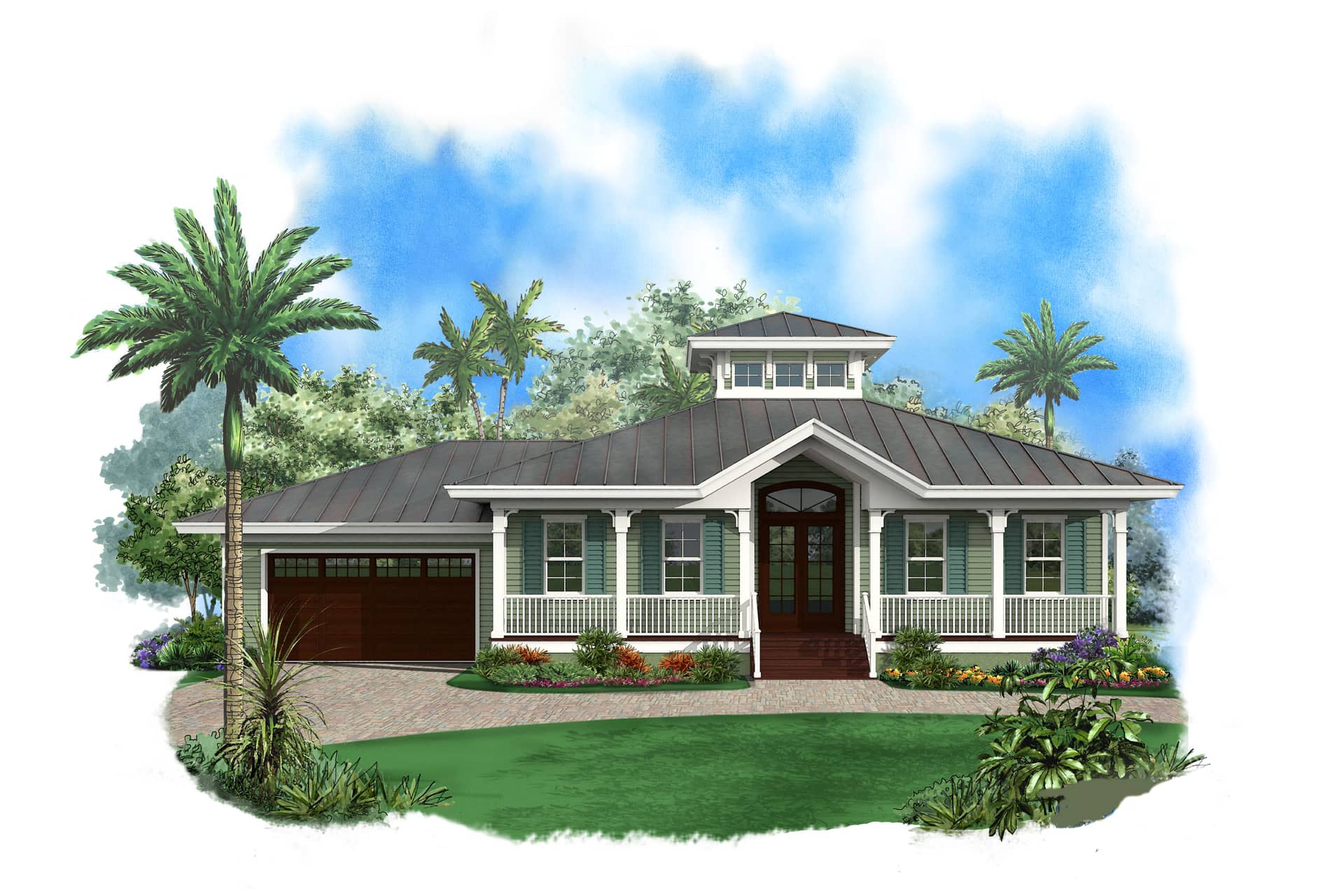

Front elevation of Ranch home (ThePlanCollection: House Plan #175-1108)

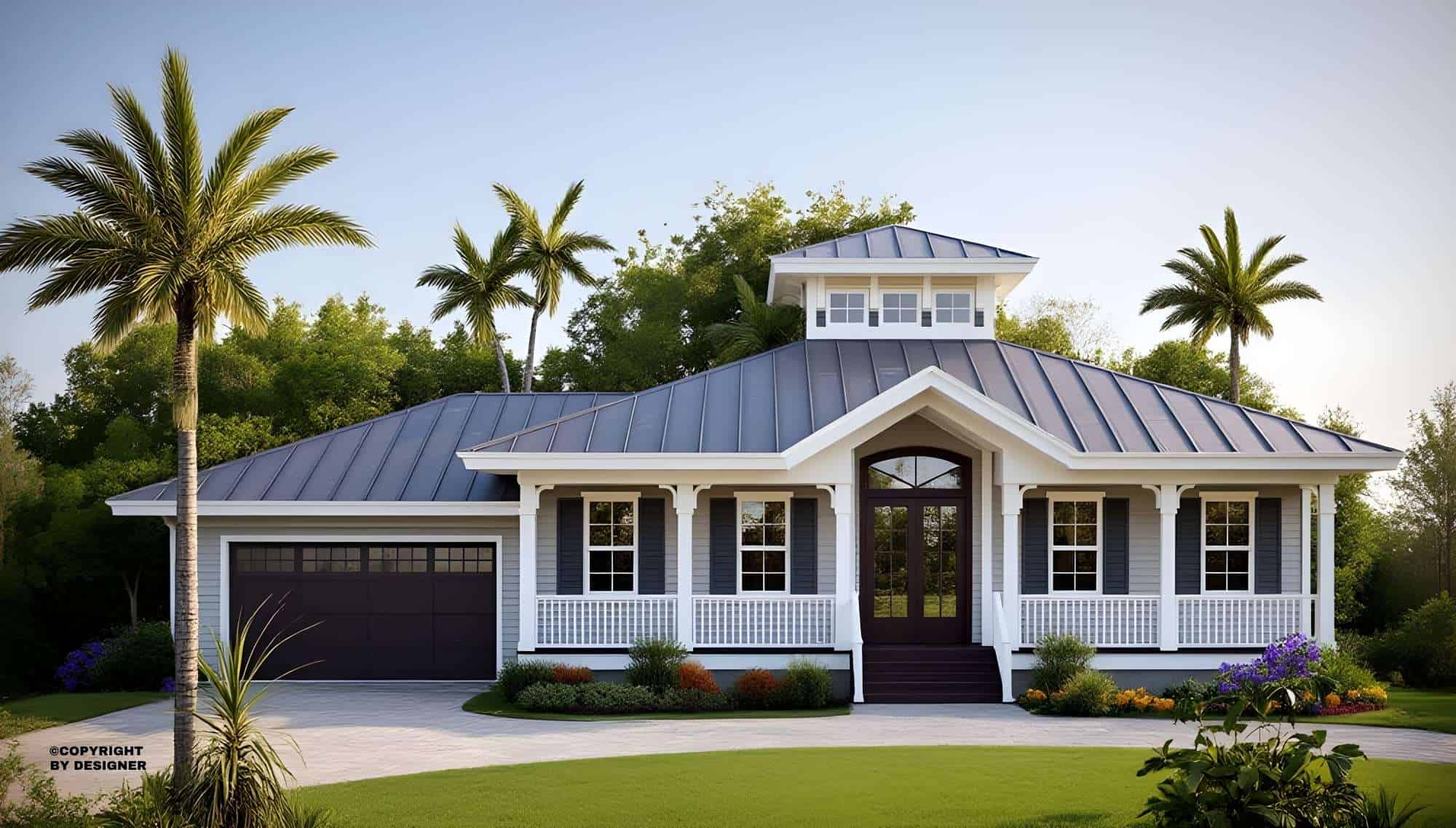

3-Bedroom, 1697 Sq Ft Ranch Home Plan - 175-1108 - Main Exterior

About Plan # 175-1108

About Plan # 175-1108

1697 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 65' 8" WIDTH 49' 8" DEPTH 2 GARAGE BAY

Looking for a getaway home? Then this perfect 3 bedroom, 2 bath home is made for just that (Plan #175-1108). Relax with a book in the great room or step outside onto the covered linai for a sip of iced tea and watch the world go by. With 1697 square feet and plenty of outdoor living space, the vacation possibilities are endless.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

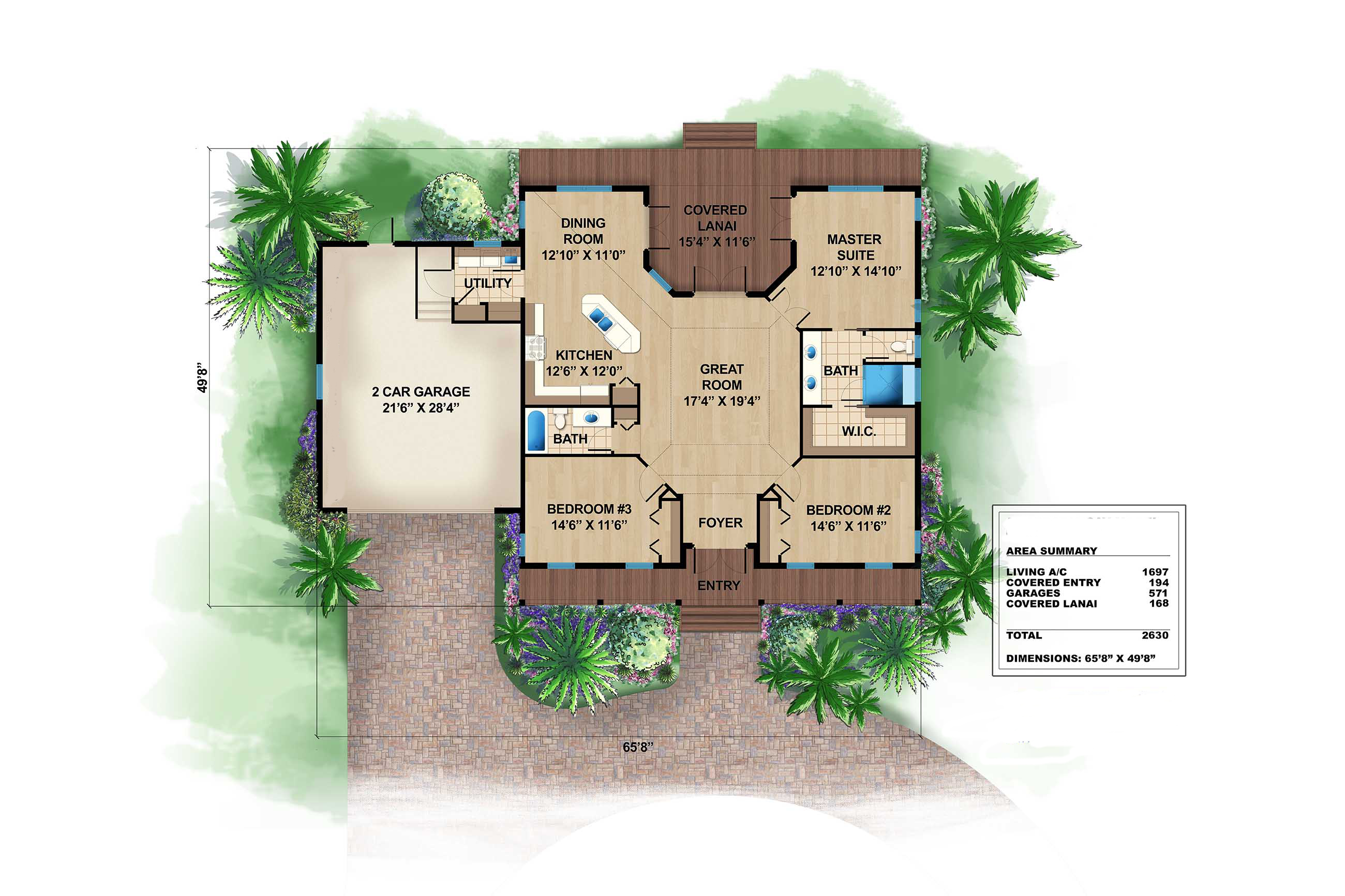

Home Plan: #175-1108 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #175-1108
Home Plan: #175-1108 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #175-1108
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1108
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1697
Main Floor:
1697
Unfinished Sq Ft:
Garage :
571
Porch :
362

Dimensions

Width:
65' 8"
Depth:
49' 8"
Ridge Height:
26' 0"

Architectural Styles

Ranch
Vacation Homes
Southern
Southwest
Coastal
Florida Style
Lake

Roofing Material

Metal

Roof Pitch

5/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling

Special Feature

Main Level Laundry
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
