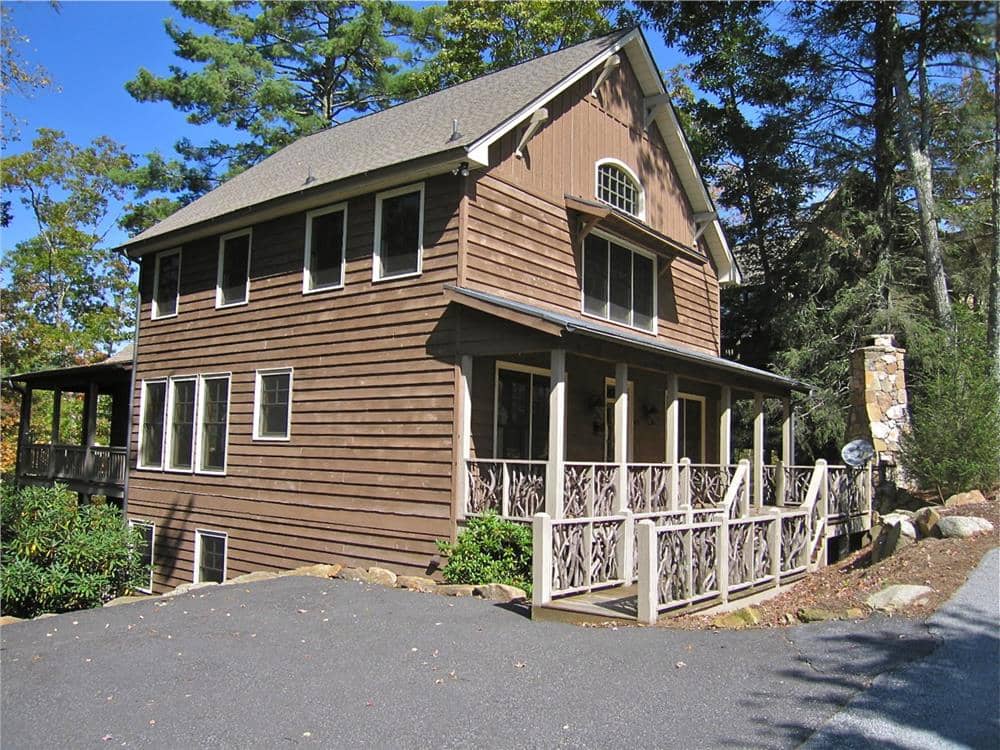

Front elevation of Craftsman home (ThePlanCollection: House Plan #163-1071)
163-1071: Home Exterior Photograph

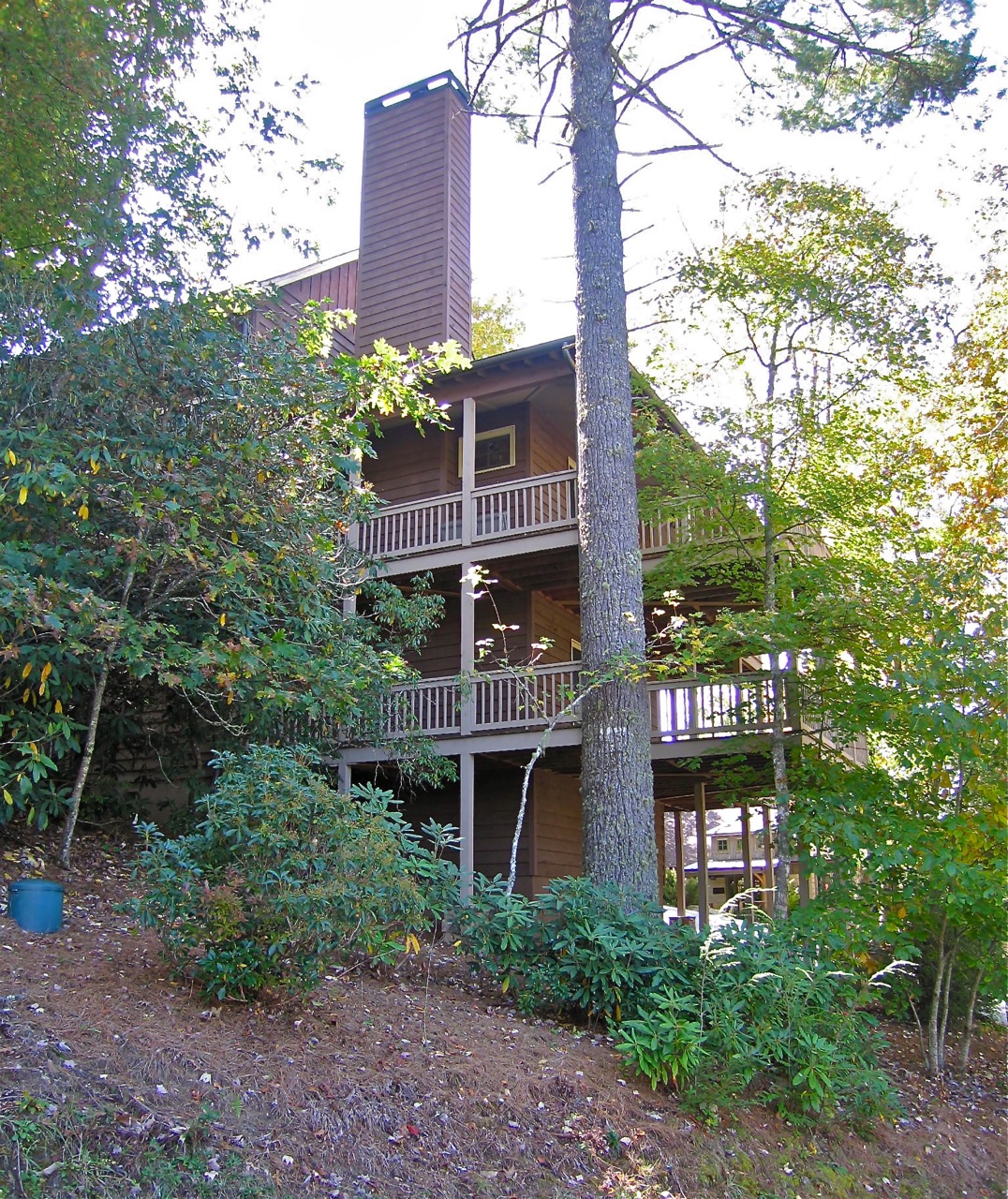

163-1071: Home Exterior Photograph-Rear View
163-1071: Home Exterior Photograph-Rear View
163-1071: Home Exterior Photograph-Rear View
3-Bedroom, 2249 Sq Ft Craftsman House Plan - 163-1071 - Front Exterior

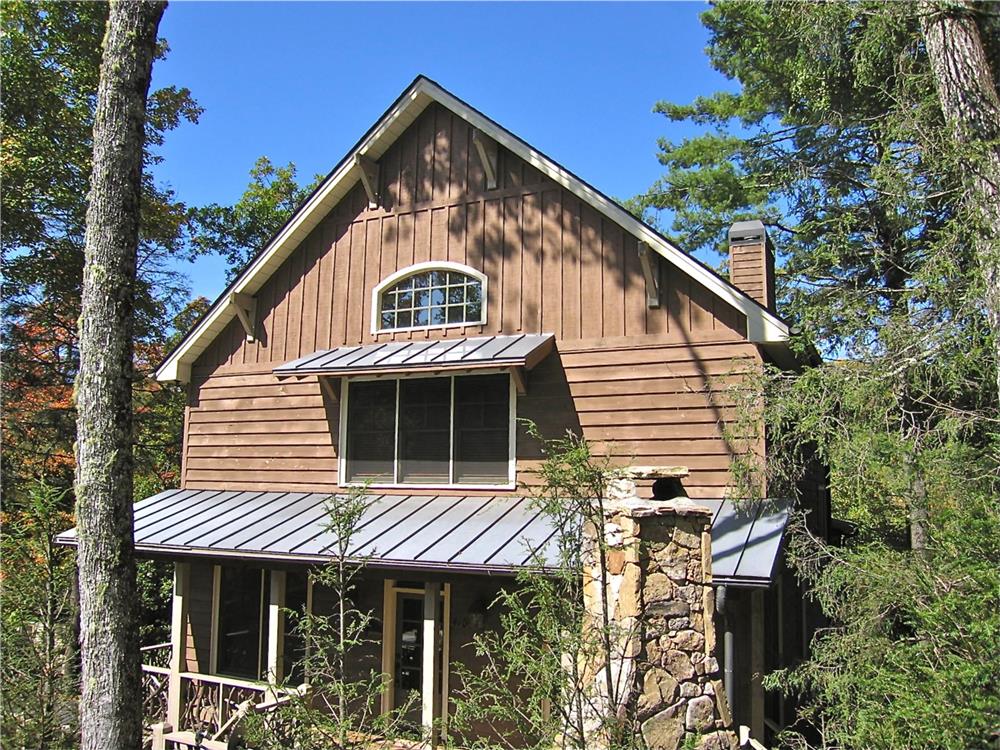

163-1071: Home Exterior Photograph

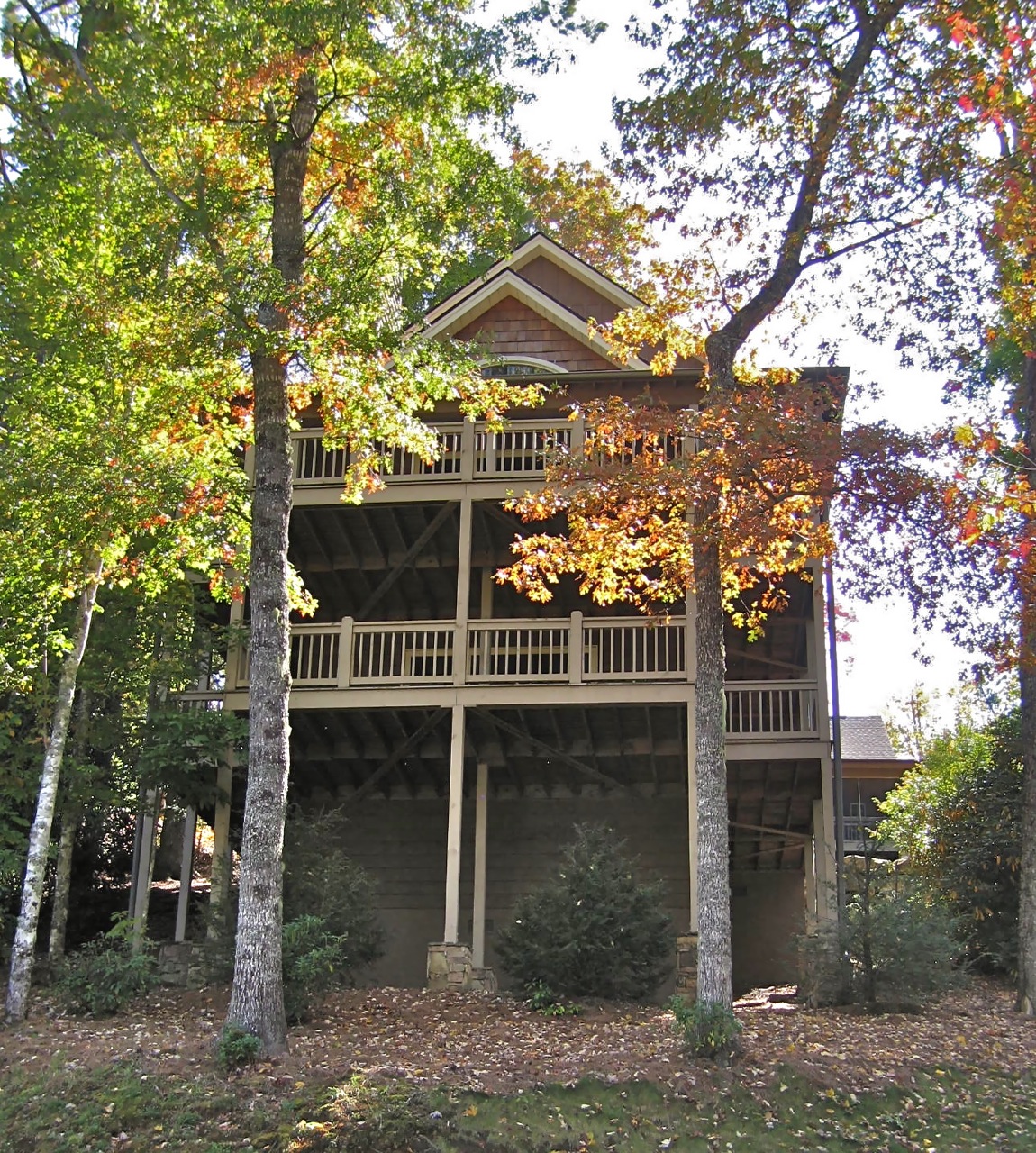

163-1071: Home Exterior Photograph-Rear View

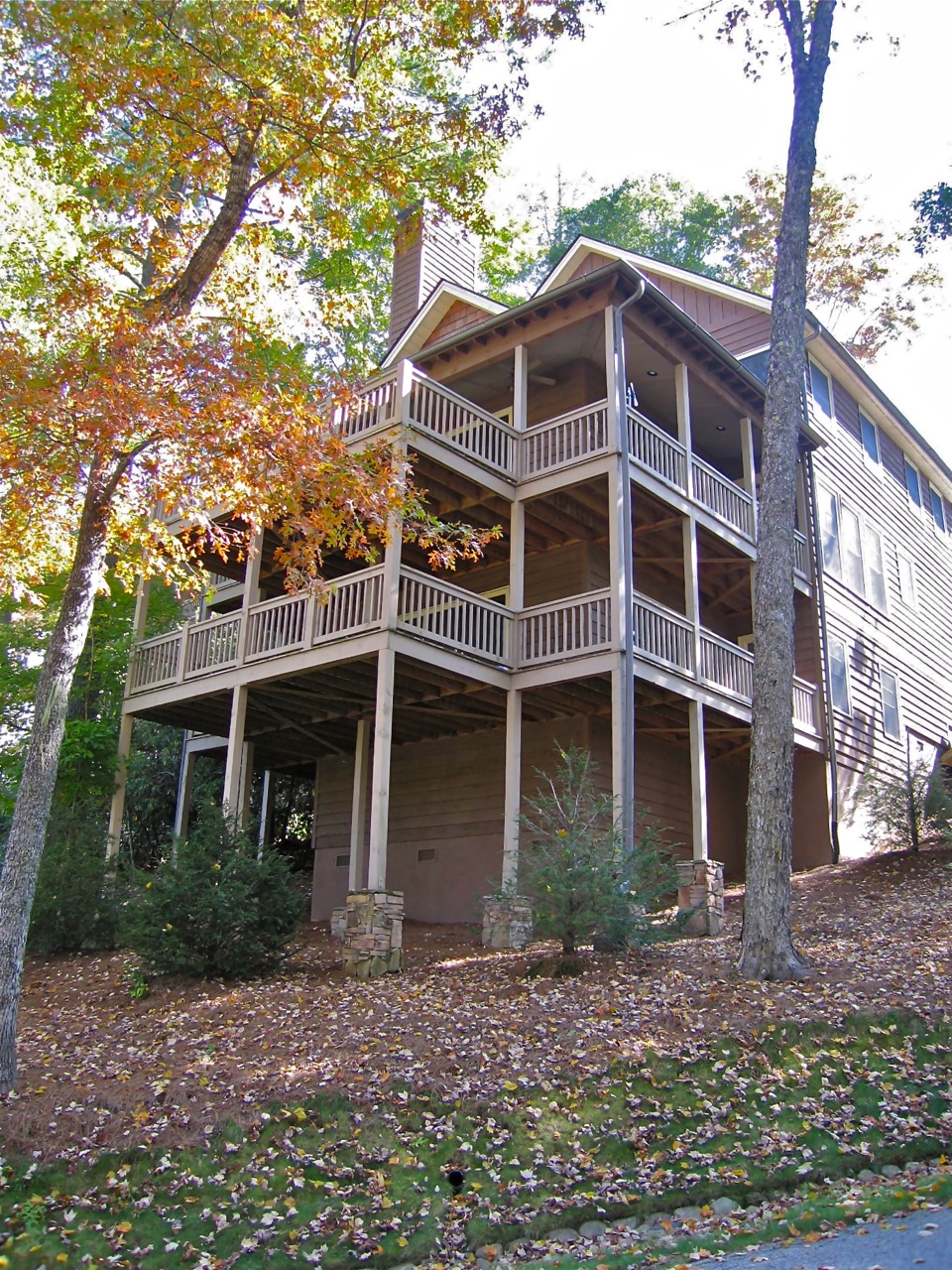

163-1071: Home Exterior Photograph-Rear View
163-1071: Home Exterior Photograph-Rear View

About Plan # 163-1071

About Plan # 163-1071

2249 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 48' 0" WIDTH 32' 4" DEPTH 0 GARAGE BAY

This lovely Craftsman style home with Traditional influences has 2249 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

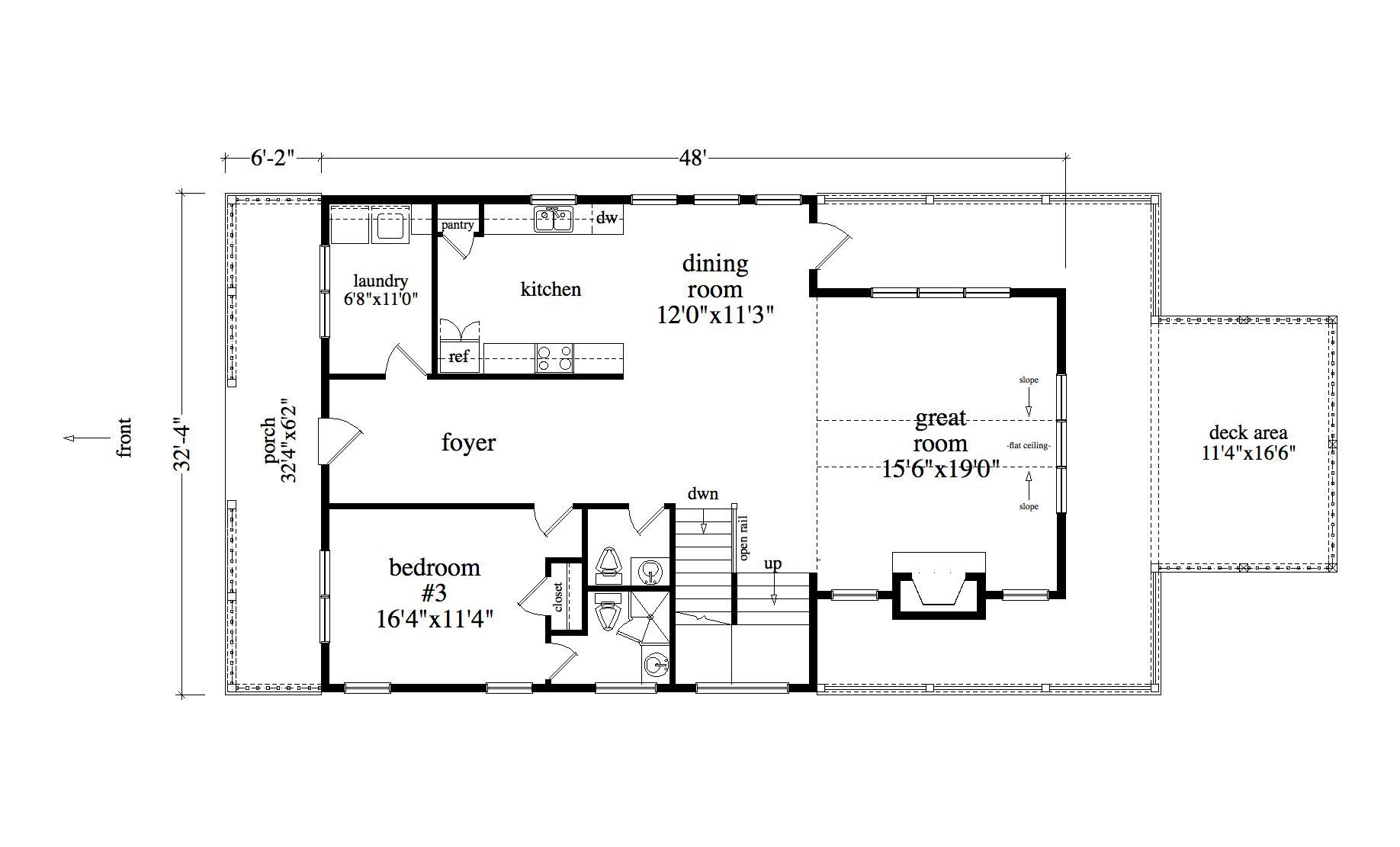

Home Plan: #163-1071 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #163-1071

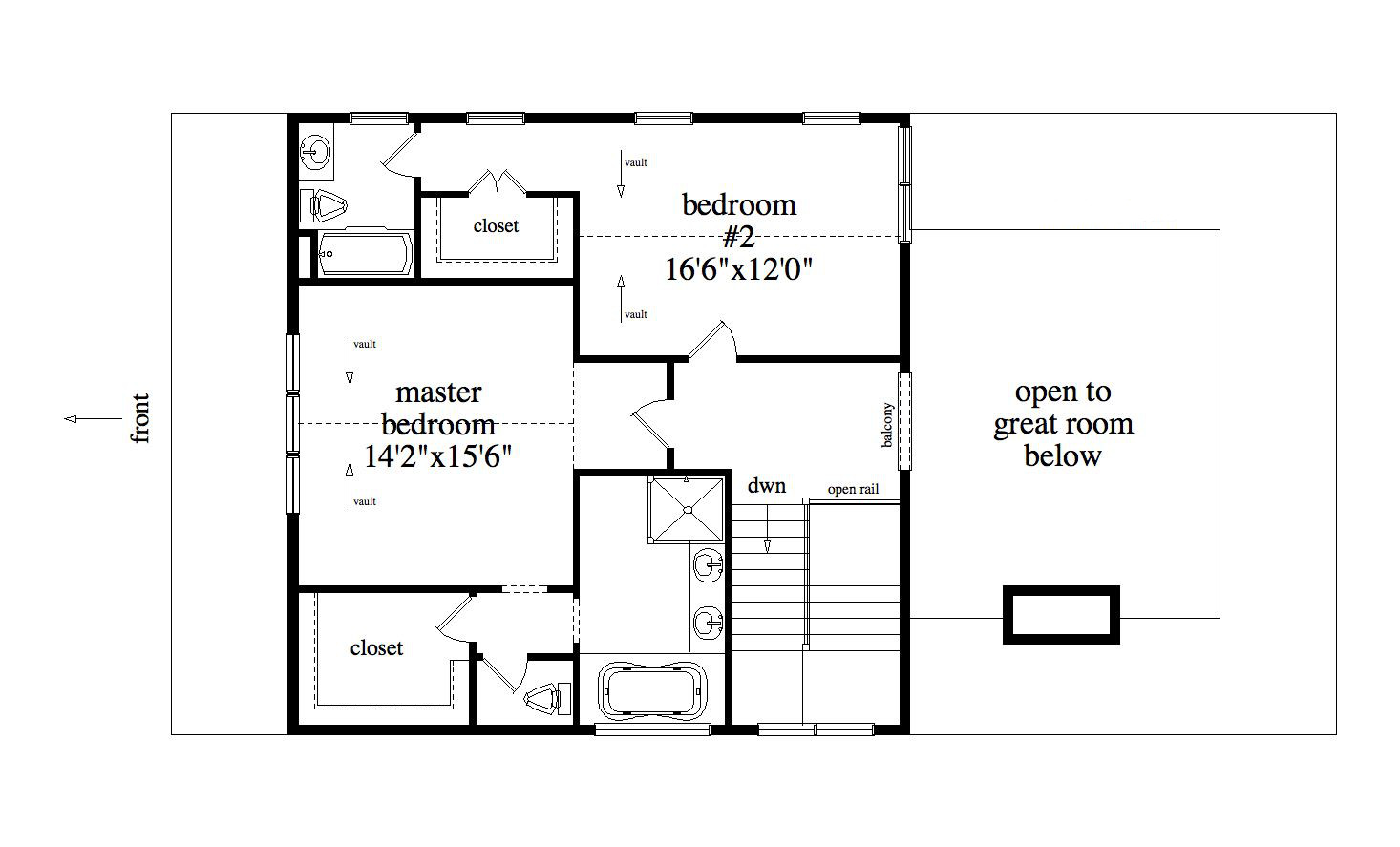

#163-1071 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #163-1071

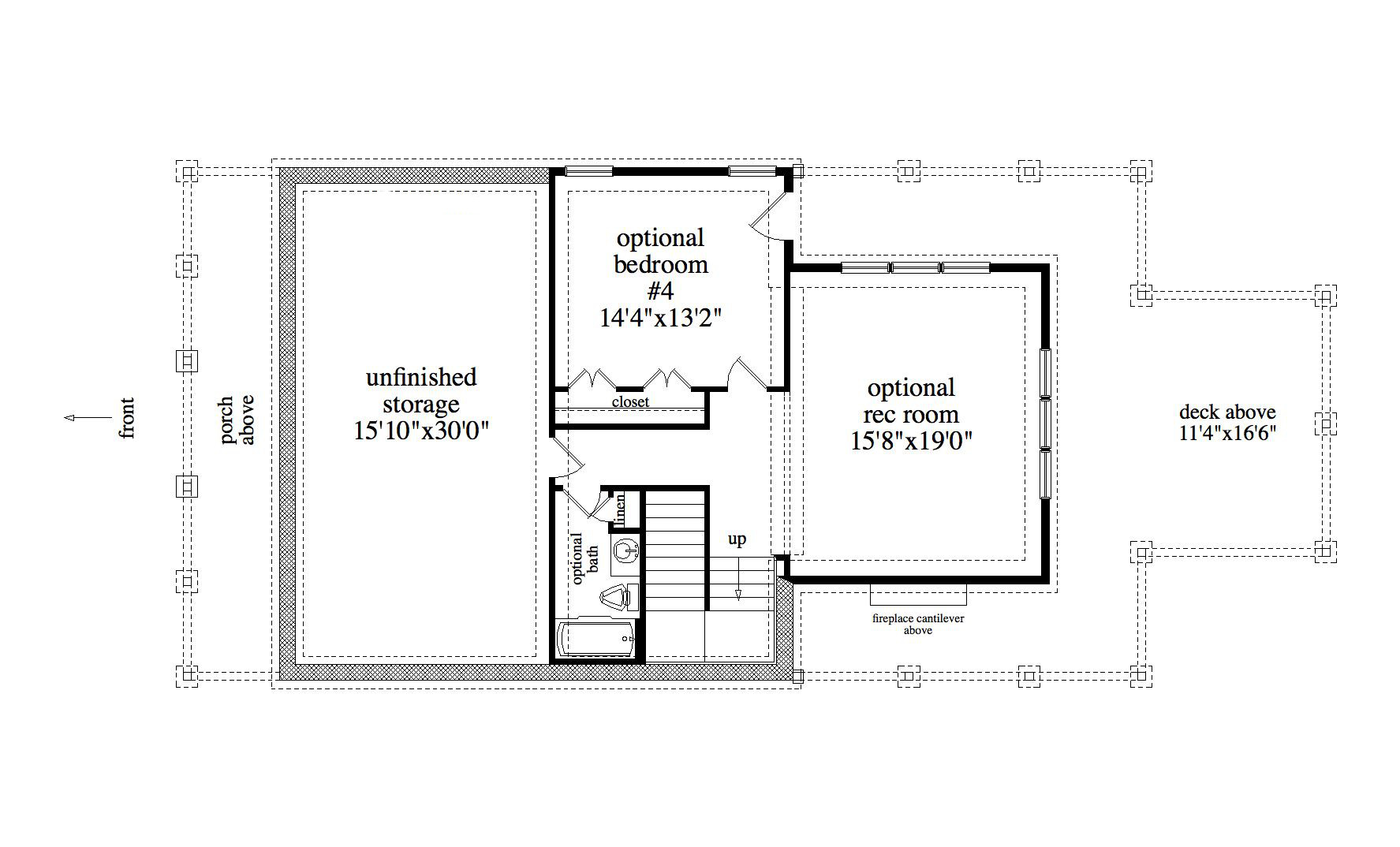

#163-1071 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #163-1071
Home Plan: #163-1071 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #163-1071
#163-1071 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #163-1071
#163-1071 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #163-1071
