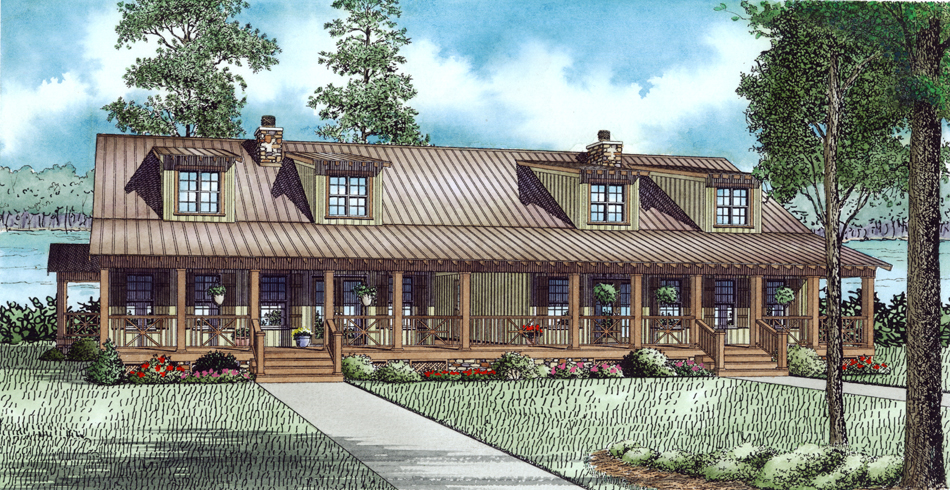

3-Bedroom, 1451 Sq Ft Multi-Unit House Plan - 153-2017 - Front Exterior

About Plan # 153-2017

About Plan # 153-2017

1451 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1.5 FLOOR 85' 4" WIDTH 38' 4" DEPTH 0 GARAGE BAY

This well-designed Country Lodge style multi-unit duplex plan has 1451 square feet of living space per unit. The 1.5-story home's floor plan includes 3 bedrooms and 2 bathrooms per unit. The exterior stands out thanks to its wide, front porch that extends the full length of the duplex, the breezeway that separates each unit, and the dormer windows above the porch. Inside, each square foot of space is used to its maximum potential. Each unit's double-door entry opens up to the living space or "den" room made more remarkable by its large fireplace. At the rear of the home is the efficiently-designed kitchen with an eating bar as well as the dining area. A supply room off the rear grilling porch is ideal as a pantry. The main bedroom of the home completes the first floor, including a walk-in closet and a bathroom.

Upstairs, there are two additional bedrooms, both with ample closet space, and a shared hall bathroom.

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

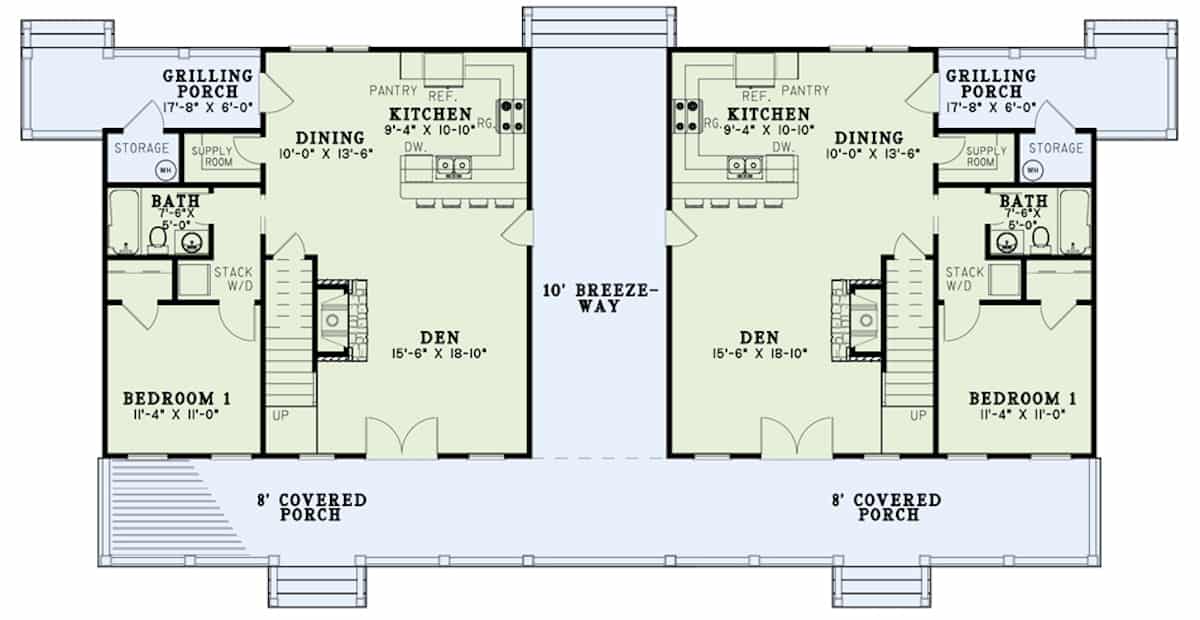

Home Plan: #153-2017 Floor Plan First Story - main level Main Level of Multi-Unit Plan #153-2017

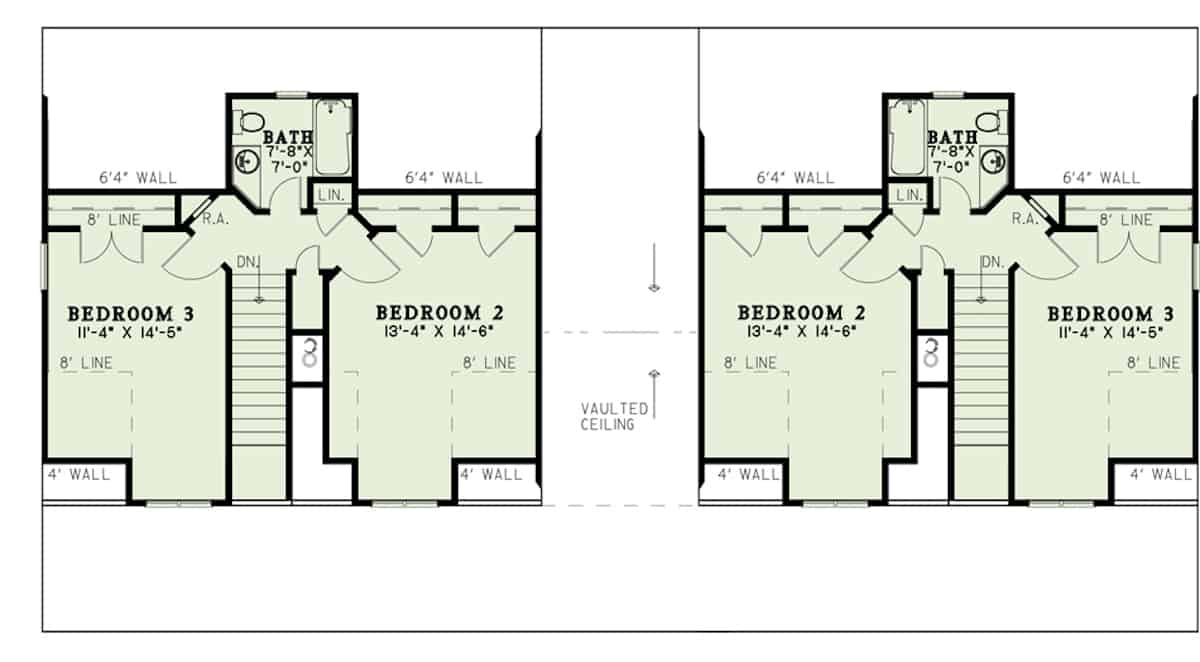

#153-2017 Floor Plan Second Story - upper level Upper Level of Multi-Unit Plan #153-2017
Home Plan: #153-2017 Floor Plan First Story - main level Main Level of Multi-Unit Plan #153-2017
#153-2017 Floor Plan Second Story - upper level Upper Level of Multi-Unit Plan #153-2017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-2017
Floors:
1.5
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1451
Main Floor:
868
Upper Floor:
583
Unfinished Sq Ft:
Garage :
392
Porch :
381

Dimensions

Width:
85' 4"
Depth:
38' 4"
Ridge Height:
21' 8"

Architectural Styles

Country
Duplex/Multi-Unit
Craftsman
1 1/2 Story
Barndominium

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Metal

Roof Pitch

9/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Den
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Breezeway
Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

This is a 2 unit multi-family plan. Each unit has three bedrooms and two bathrooms.


Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
