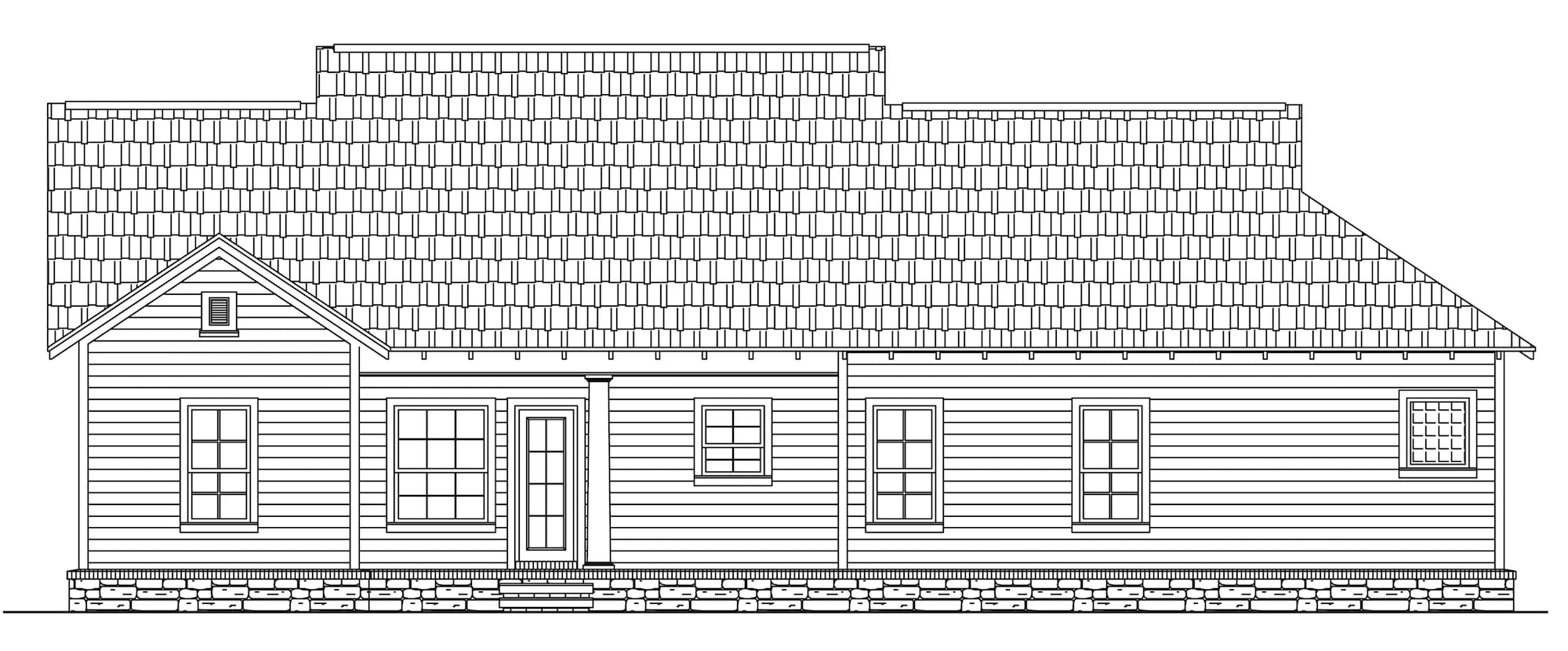

141-1238: Home Plan Rear Elevation

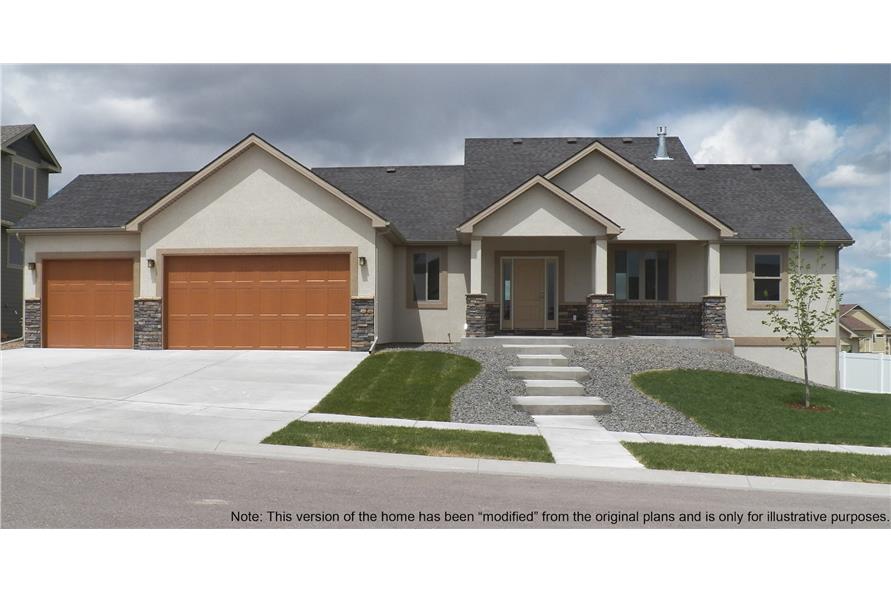

141-1238: Home Exterior Photograph-Front View
141-1238: Home Interior Photograph-Master Bathroom: Sink/Vanity
141-1238: Home Other Image-Great Room
141-1238: Home Other Image-Great Room
141-1238: Home Interior Photograph-Kitchen
141-1238: Home Other Image-Kitchen
141-1238: Home Interior Photograph-Kitchen
141-1238: Home Other Image-Kitchen
3-Bedroom, 1509 Sq Ft Ranch House Plan - 141-1238 - Front Exterior
141-1238: Home Plan Rear Elevation
141-1238: Home Exterior Photograph-Front View
141-1238: Home Interior Photograph-Master Bathroom: Sink/Vanity
141-1238: Home Other Image-Great Room
141-1238: Home Other Image-Great Room
141-1238: Home Interior Photograph-Kitchen
141-1238: Home Other Image-Kitchen
141-1238: Home Interior Photograph-Kitchen
141-1238: Home Other Image-Kitchen

About Plan # 141-1238

About Plan # 141-1238

1509 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 61' 0" WIDTH 47' 4" DEPTH 2 GARAGE BAY

This well-designed country Craftsman ranch home exudes such a wonderful presence as you approach. The porch stands out with its tapered columns on stone bases. The front gables over the porch add more interest. Inside, the floor plan offers so much at a great value with only 1509 living square feet. From the front door, enter into the spacious Great Room with its vaulted ceiling, fireplace, and built-ins. Overlooking the backyard is the dining area which is only steps away from the open-concept kitchen — separated by an eating bar. A covered rear porch is perfect for outdoor dining and entertaining.

With a split-bedroom layout, the master suite has additional privacy and includes many of the amenities desired today. The master bedroom overlooks the backyard and has a trayed ceiling. The master bathroom includes two sinks, a garden tub, a separate shower, and a water closet. There are also his-and-her walk-in closets. On the other side of the floor plan are bedroom #2 and #3, separated by the hall bathroom.

Other features include numerous extra closets and storage space, a large laundry room, and an attached 2-car garage. For more space, there is the basement foundation option.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

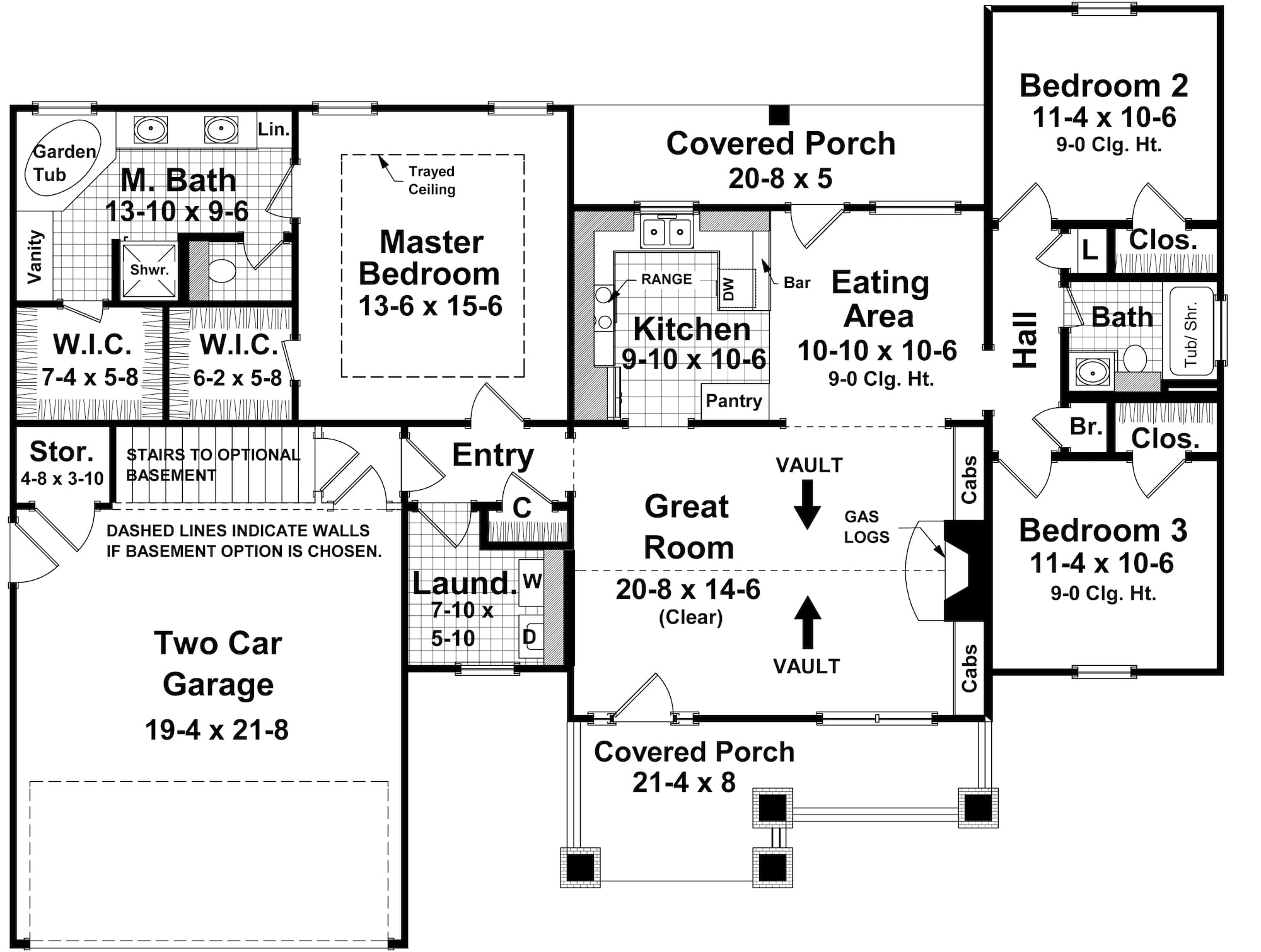

Home Plan: #141-1238 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #141-1238
