House Plan #163-1048
Plan Name: 163-1048   Bedrooms: 4   Width: 71' 8"
Square Feet: 3231 Sq Ft.   Bathrooms: Full Baths: 4
Half Baths: 0
  Depth: 46' 2"
Floors: 2   Garage Bays: 2 Ridge Height: 21'3"'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $1,080.00
  Standard Construction Package (8 Sets) $1,165.00
  Reproducible Master $1,335.00
  CAD File $1,935.00
  Daylight Basement $0.00
  2x6 Framing Option - Exterior Walls $150.00
  2x8 Framing Option - Exterior Walls $150.00
  Right Reading Reverse $125.00
Square Footage House Plan Description
Heated Sq Ft: 3231
Main Floor: 1819
Unfinished Sq ft
Lower Floor: 1412
Garage: 452

This plan is a derivative of our fashionable Hyde Park mountain style ranch. The main level has a master suite on the main level opposite the kitchen. Separate vanities, a water closet, a garden tub and independent shower all encompass the master bath. On the other end of the house you will find a guest room which adjoins a full bath. The kitchen has an island, and is open to the breakfast room and vaulted great room. The master bedroom, great room and breakfast all have a generous amount of windows allowing lots of light and shows off great mountain, lake or golf views. A screen porch with a fireplace is attached off the kitchen and breakfast so that you can enjoy morning coffee in the fresh air. The optional finished terrace level is bright and allows plenty of room for storage, an office, 2 additional bedrooms each with access to their own bath, and a rec room. (Actual plan may vary from photos or renderings.)

Home Features
  Architectural Styles
Vacation Homes
  Building Lot Type
View Lot
Down Site
  Ceiling Height
9 Foot Ceiling
  Construction Methods
Structural Insulated
  Exterior Wall Framing
  Exterior Wall Material
Wood Siding
Two Fireplaces
  Garage Type
Detached Garage
  Kitchen Features
Kitchen Island
Eat-In Kitchen
  Master Suite Features
Master Bathroom
Split Master Bedroom
Main Floor Master
  Porches and Exterior Features
Covered Front Porch
Screened Porch/Sunroom
  Roof Pitch
  Roofing Material
Asphalt Shingles
  Roofing Type
  Special Feature
Guest Room
Bonus Room
Family Room
Main Level Laundry
Vaulted Ceilings
Color Photos
House Plan : 163-1048 Images
Reverse Plan Images
   House Plan #163-1048
Image not available.

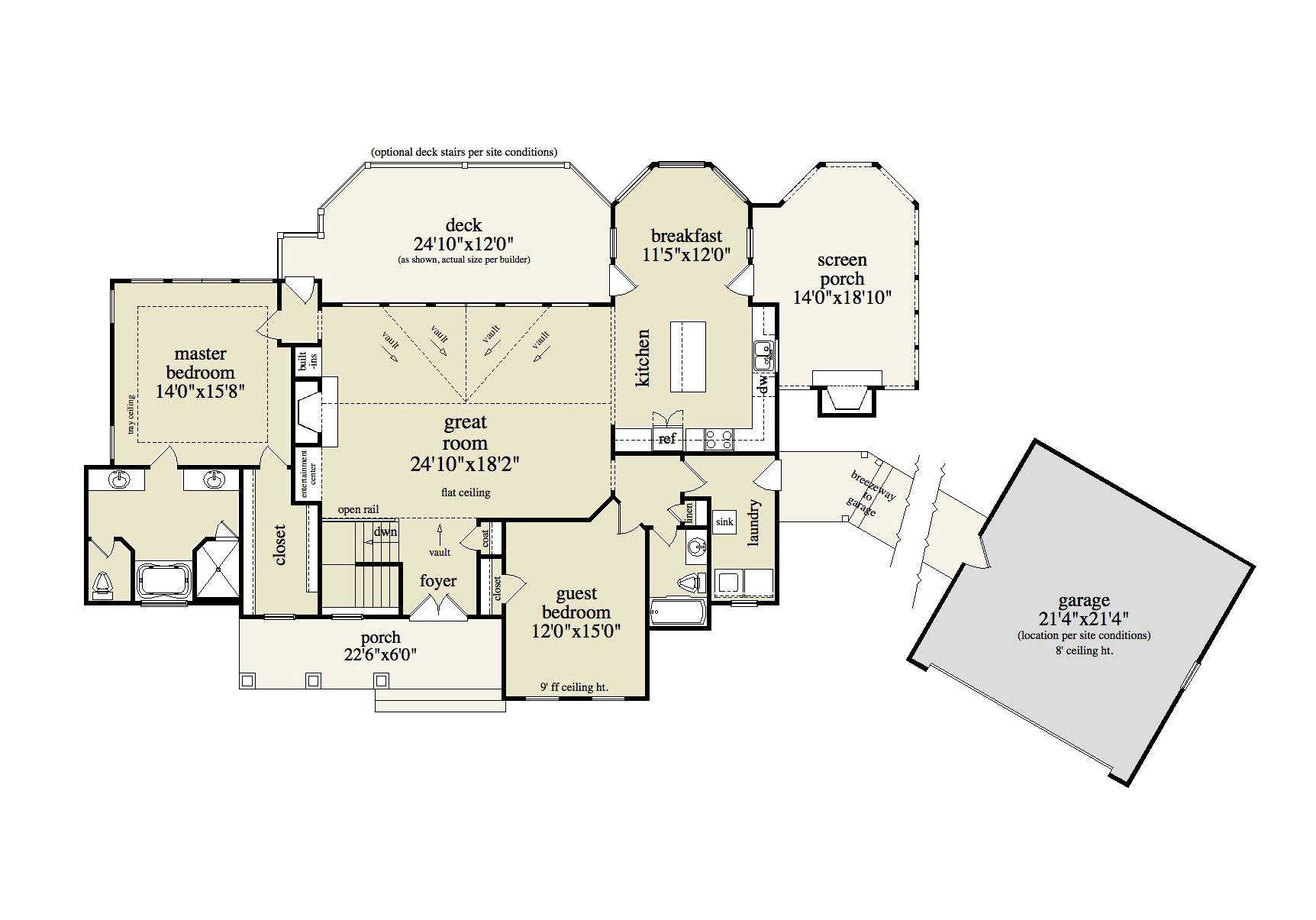

  Home Plan: 163-1048 Floor Plan First Story
Floor Plan First Story

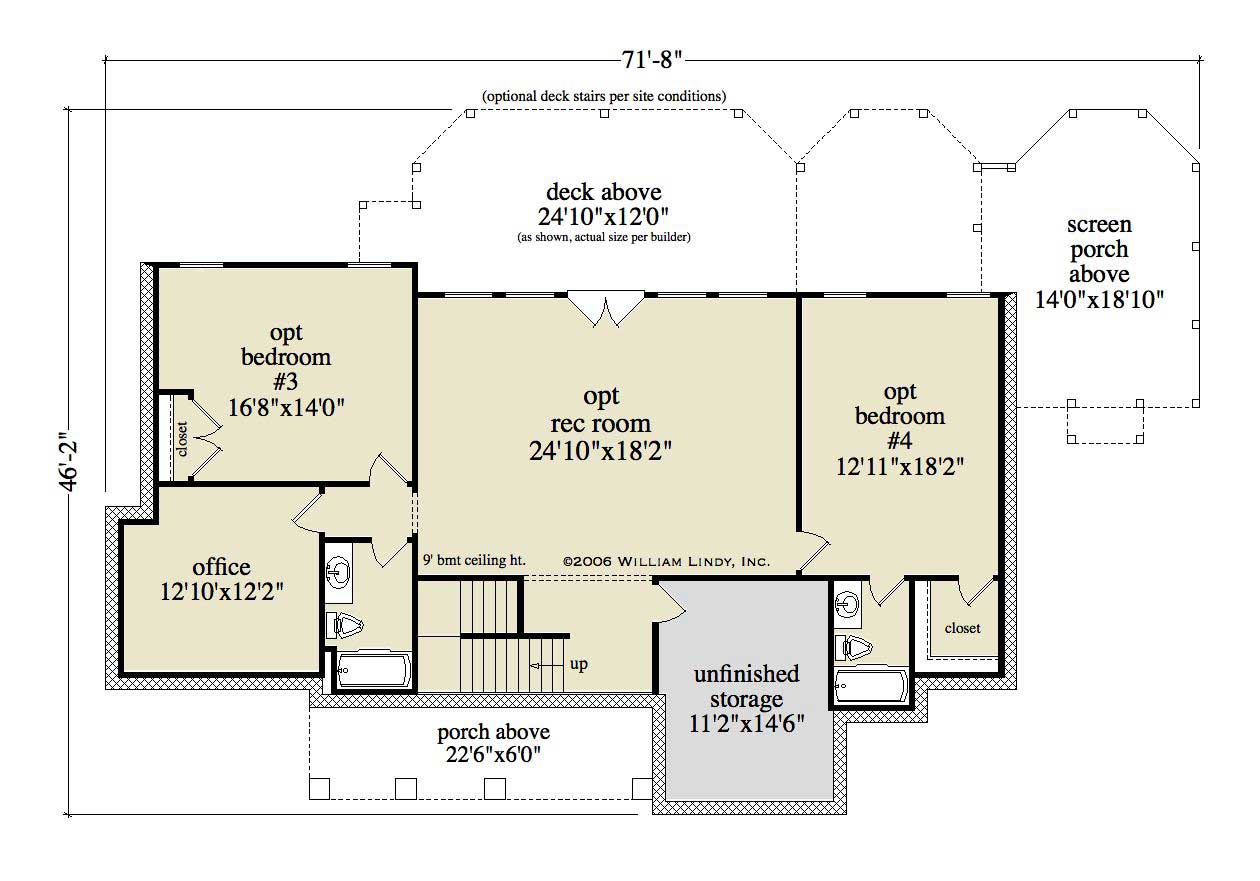

  Home Plan: 163-1048 Terrace level
Terrace Level
