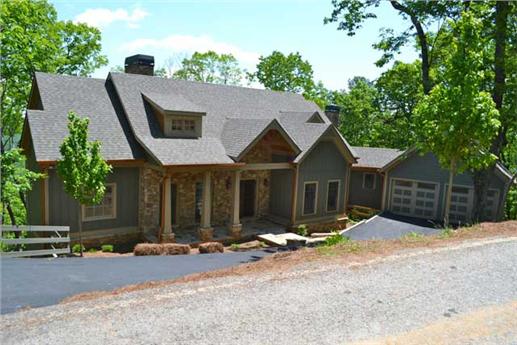

4-Bedroom, 3231 Sq Ft Country Home Plan - 163-1048 - Main Exterior
Home Plan Rear Elevation
Home Plan Left Elevation
Home Plan Right Elevation
Home Exterior Photograph
Home Interior Photograph
163-1048: Home Interior Photograph-Recreation Room
163-1048: Home Plan Rear Elevation
163-1048: Home Exterior Photograph-Left Side View
163-1048: Home Exterior Photograph-Deck
163-1048: Home Exterior Photograph-Grilling Porch / Screened Room
163-1048: Home Exterior Photograph-Front Door
163-1048: Home Interior Photograph-Kitchen: Breakfast Nook
163-1048: Home Interior Photograph-Great Room
163-1048: Home Plan Front Elevation

About Plan # 163-1048

About Plan # 163-1048

3231 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 71' 8" WIDTH 46' 2" DEPTH 2 GARAGE BAY

Designed for a sloping lot, this enthralling country style home with luxury characteristics has 3231 square feet of living space. The 2-story floor plan includes 4 bedrooms. From the porch, enter into the foyer and then the Great Room with its vaulted ceiling, grand fireplace, and wall of windows looking out to the rear deck. Steps away are the spacious kitchen with island and breakfast area. A screen porch off the breakfast area is ideal for al fresco dining or warming up by the outdoor fireplace. A breezeway connects the main house to the 2-car garage. Not far from the kitchen is the guest bedroom. On the other side of the home is the impressive master suite with a large walk-in closet and a master bath with his-and-her vanities.

On the lower level of the home, the rec room is the center of attention. The layout allows for two more bedrooms, two bathrooms, and an office.

For a related house design, see Plan #163-1003.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #163-1048 Floor Plan First Story - main level Floor Plan Main Level of Country Plan #163-1048
#163-1048 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #163-1048
Home Plan: #163-1048 Floor Plan First Story - main level Floor Plan Main Level of Country Plan #163-1048
#163-1048 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #163-1048
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 163-1048
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
3231
Main Floor:
1819
Lower Floor:
1412
Unfinished Sq Ft:
Garage :
478

Dimensions

Width:
71' 8"
Depth:
46' 2"
Ridge Height:
21' 3"

Architectural Styles

Country
Vacation Homes
Luxury
Craftsman

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Mother in law apartment
Fireplace
Guest Room
Bonus Room
Family Room
Main Level Laundry
Color Photos
Vaulted Ceilings
Balcony

Garage Type

Detached Garage

Construction Methods

Structural Insulated

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Down Site
View Lot

Kitchen Features

Kitchen Island
Eat-In Kitchen

Porches and Exterior Features

Breezeway
Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom

Additional Notes from Designer

Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
