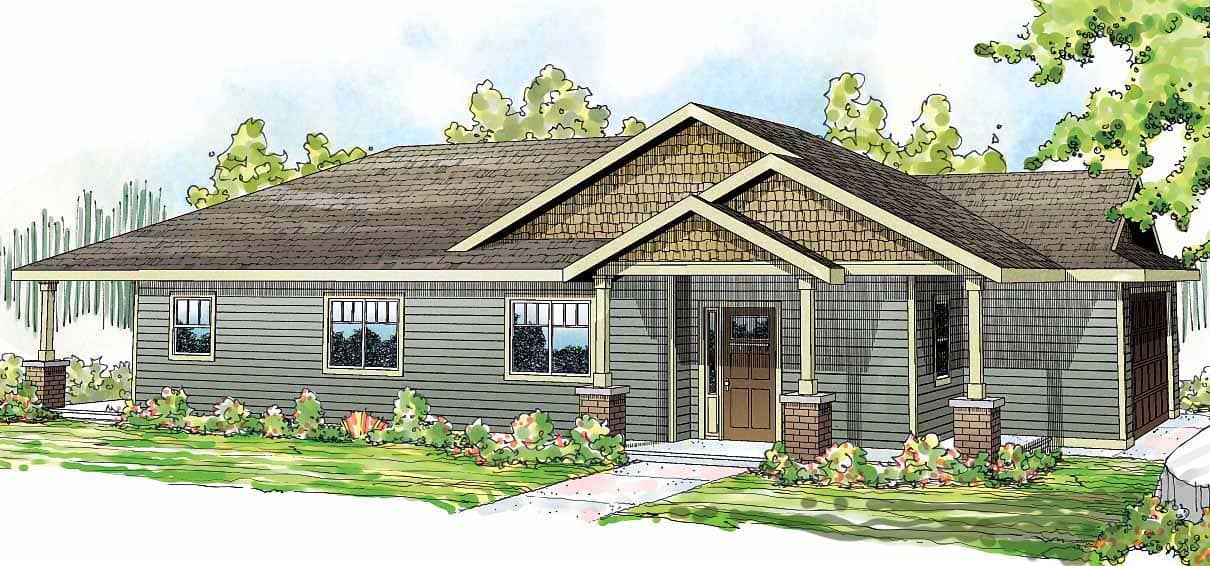

This is the front elevation for these Ranch House Plans.

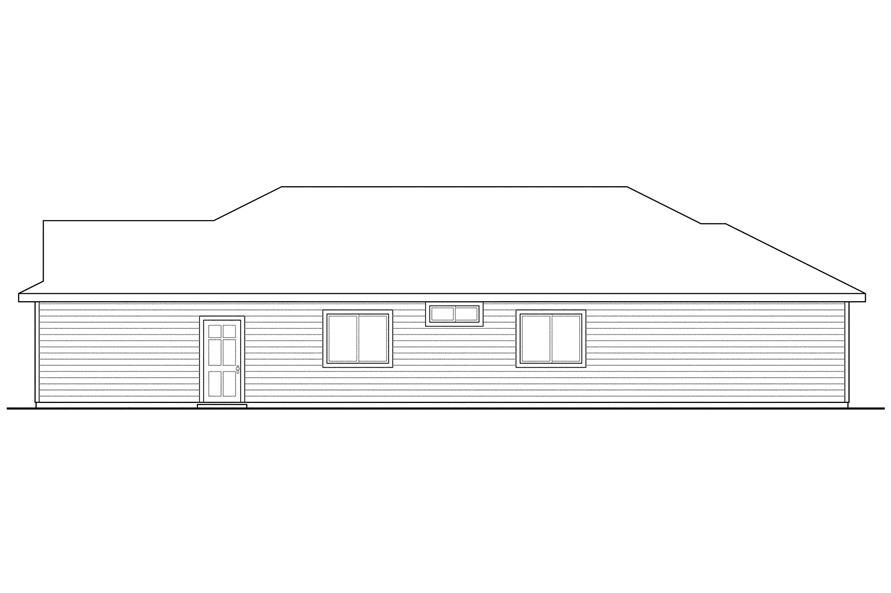

Home Plan Rear Elevation

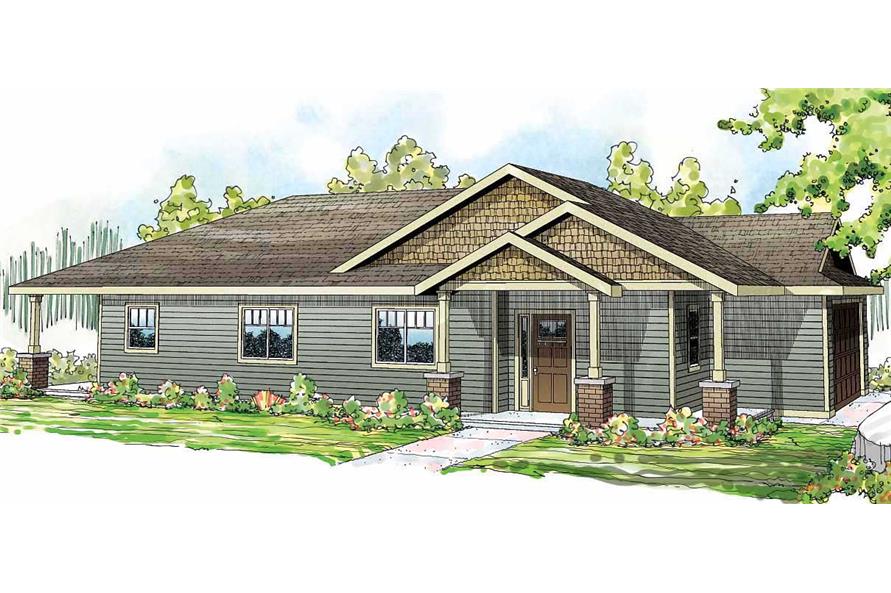

3-Bedroom, 1473 Sq Ft Country Home Plan - 108-1099 - Main Exterior

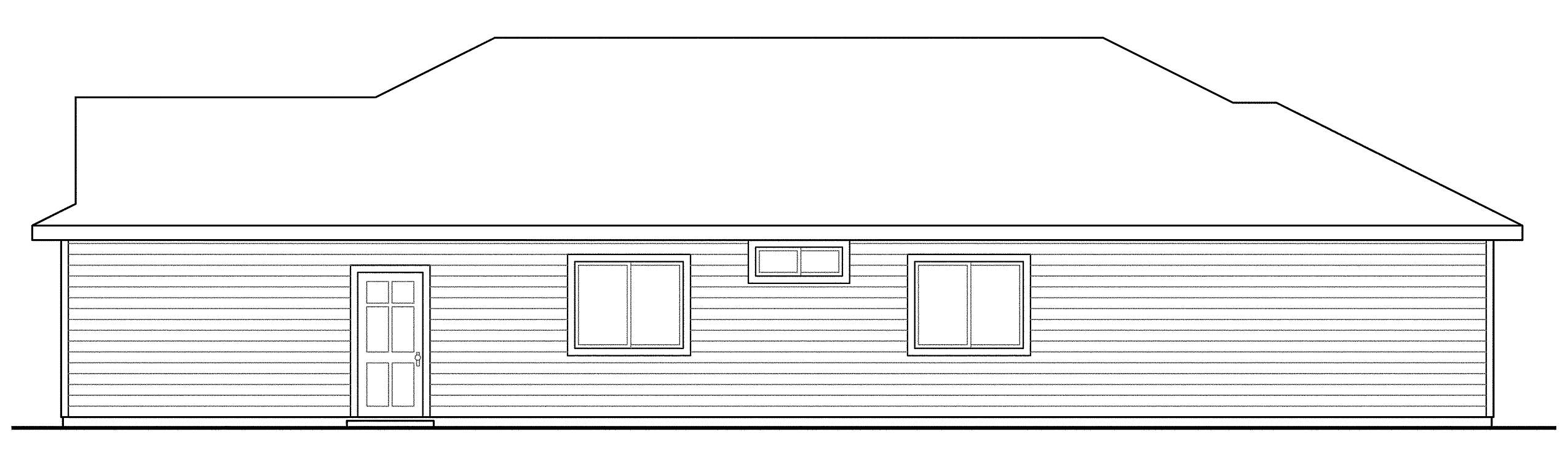

Home Plan Rear Elevation

About Plan # 108-1099

About Plan # 108-1099

1473 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 66' 0" WIDTH 36' 0" DEPTH 2 GARAGE BAY

Craftsman home plans. This charming Craftsman cottage feels spacious, yet its size and shape make it economical to build and maintain. The living room, dining room and kitchen flow together in an expansive gathering space that fills the front of the home. Three bedrooms and two bathrooms span the rear. A small covered patio nestles into an alcove just outside of the kitchen. The #108-1099 is a minimalist's dream. Besides being on the small side, its basically rectangular shape makes this compact Craftsman cottage as economical to build as it is to maintain. While equally appealing to young families and empty nesters, the plan is also designed with the idea of leaving a smaller carbon footprint than many newly constructed homes. Slender posts set on brick veneer bases highlight a porch that sweeps across the front and wraps around to create an alcove on the right. Other Craftsman features include gridded window uppers, variously sized front-facing gables, a Craftsman door and a sidelight. Inside, the entry is suffused in natural light that washes in through the sidelight and upper section of the door. A convenient coat closet and access to the two-car garage are straight ahead. The utility room to the right is outfitted with cabinets and a folding counter. Turning left brings you into a bright and spacious informal gathering space where the living room flows into the dining area. And that's not the end of it. A peninsular counter rimmed by a flush eating bar is all that separates the dining area from the kitchen, giving the large gathering space an even more expansive feel. A roomy walk-in pantry sits at the juncture of the kitchen and dining room. The covered patio off the opposite side of the kitchen could easily be screened, if pesky bugs are a persistent problem. Bedrooms fill the rear section of the #108-1099. The owners? suite has a large walk-in closet and a private bathroom with a dual vanity and an oversized shower. Secondary bedrooms share a two-section bathroom, allowing two people to use it at once.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

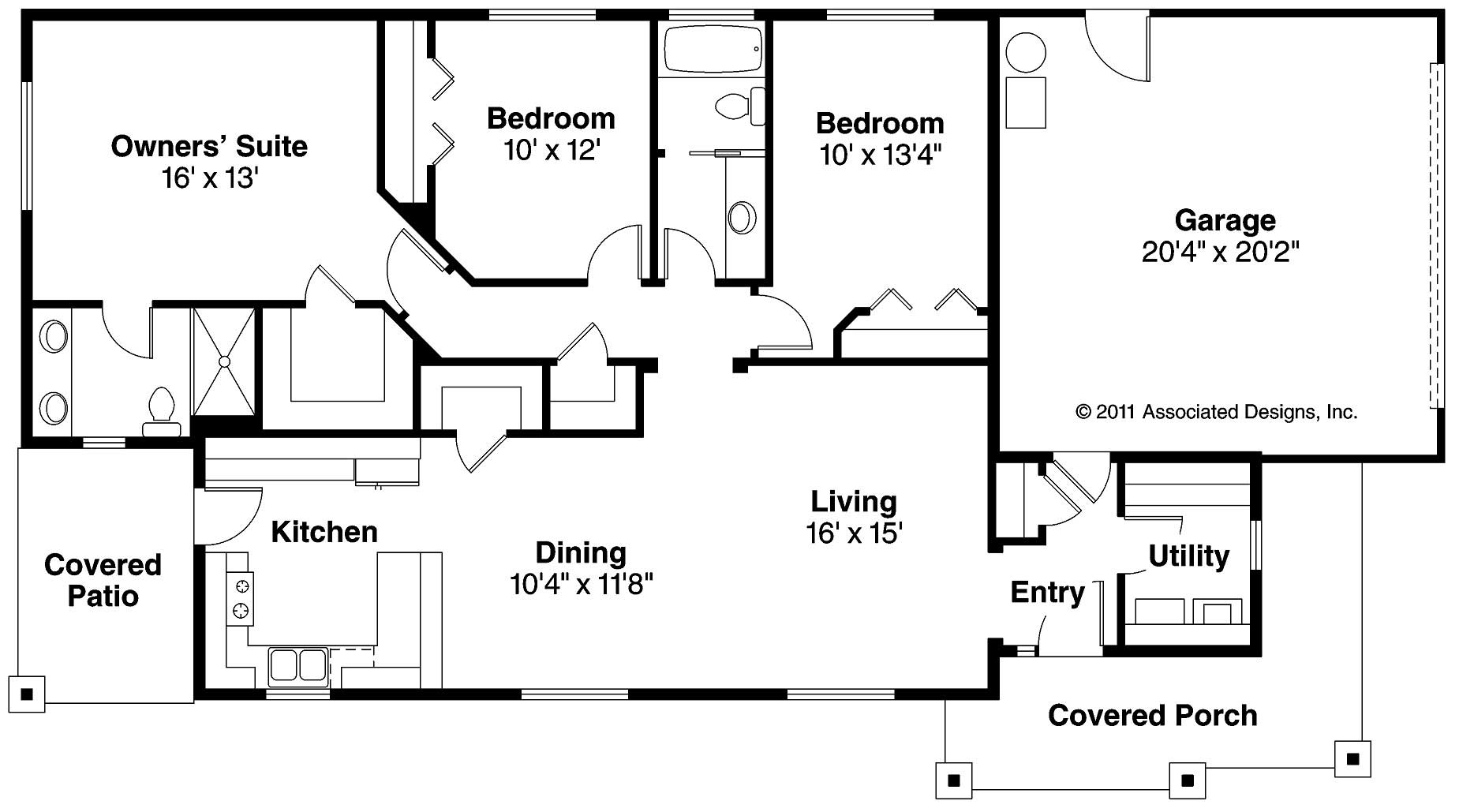

Home Plan: #108-1099 Floor Plan First Story - first story Floor Plan First Story of Country Plan #108-1099
Home Plan: #108-1099 Floor Plan First Story - first story Floor Plan First Story of Country Plan #108-1099
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1099
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1473
Main Floor:
1473
Unfinished Sq Ft:
Garage :
428

Dimensions

Width:
66' 0"
Depth:
36' 0"
Ridge Height:
18' 0"

Architectural Styles

Country
Ranch
Traditional

Exterior Wall Material

Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Mud Room
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x6

Kitchen Features

Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
