House Plan #163-1030
Plan Name: 163-1030   Bedrooms: 4   Width: 80' 8"
Square Feet: 3120 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 0
  Depth: 78' 0"
Floors: 1   Garage Bays: 3 Ridge Height: 40-6'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $1,080.00
  Standard Construction Package (8 Sets) $1,165.00
  Reproducible Master $1,335.00
  CAD File $1,935.00
FOUNDATION OPTIONS
  Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
  Right Reading Reverse $125.00
Square Footage House Plan Description
Heated Sq Ft: 3120
Main Floor: 3120
Unfinished Sq ft

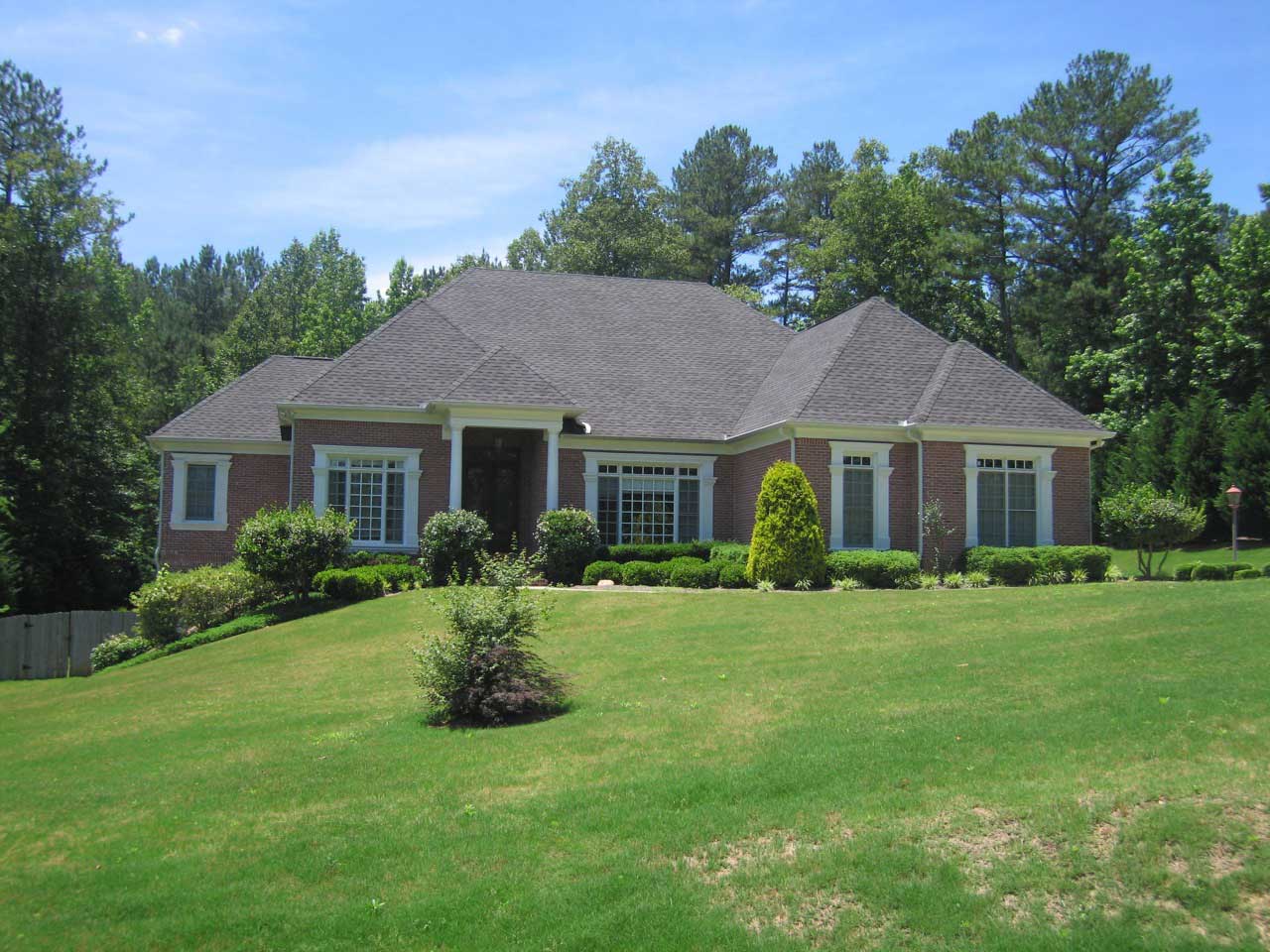

This is a traditional style ranch with 4 sided brick on a basement. Covered entryways welcome you on both the front and rear of the house. The main level is a split bedroom floor plan with the master bedroom on the opposite side of the house from the kitchen. The dining room and foyer welcome visitors with arched entryways and the 12 high great room is decorated with a coffered ceiling. The large kitchen has an island and is open to the keeping room, breakfast nook and great room. A butlers pantry helps keep the dining room well serviced. Bedrooms 2 and 3 have good sized closets and are joined by a jack and jill bath. The study opens into the foyer and could easily be a 4th bedroom as it has a full bath. The master suite has 2 walk in closets, a large shower with a seat, separate vanities and garden tub.

Home Features
  Architectural Styles
European
Ranch
Traditional

  Ceiling Height
9 Foot Ceiling

  Exterior Wall Framing
2x4

  Exterior Wall Material
Brick

  Garage Type
Attached Garage
Side Entry

  Kitchen Features
Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

  Master Suite Features
Master Bathroom
Walk In Closet
Main Floor Master
Sitting Area

  Porches and Exterior Features
Covered Rear Porch

  Roof Pitch
12/12
9/12

  Roofing Material
Asphalt Shingles

  Roofing Type
Hip

  Special Feature
Fireplace
Dining Room
Main Level Laundry
Color Photos
Den
Vaulted Ceilings

House Plan : 163-1030 Images
Reverse Plan Images
   House Plan #163-1030
Image not available.
  Home Plan: 163-1030 Floor Plan Basement
Floor Plan Basement
  Home Plan: 163-1030 Floor Plan First Story
Floor Plan First Story
