4-Bedroom, 3120 Sq Ft Ranch Plan with Covered Rear Patio
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #163-1030
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

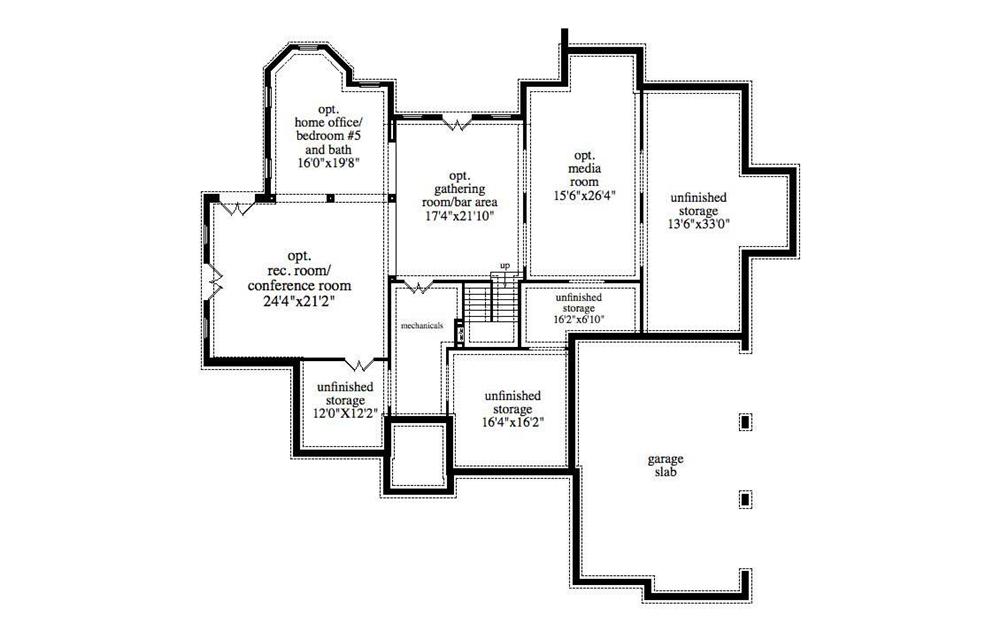

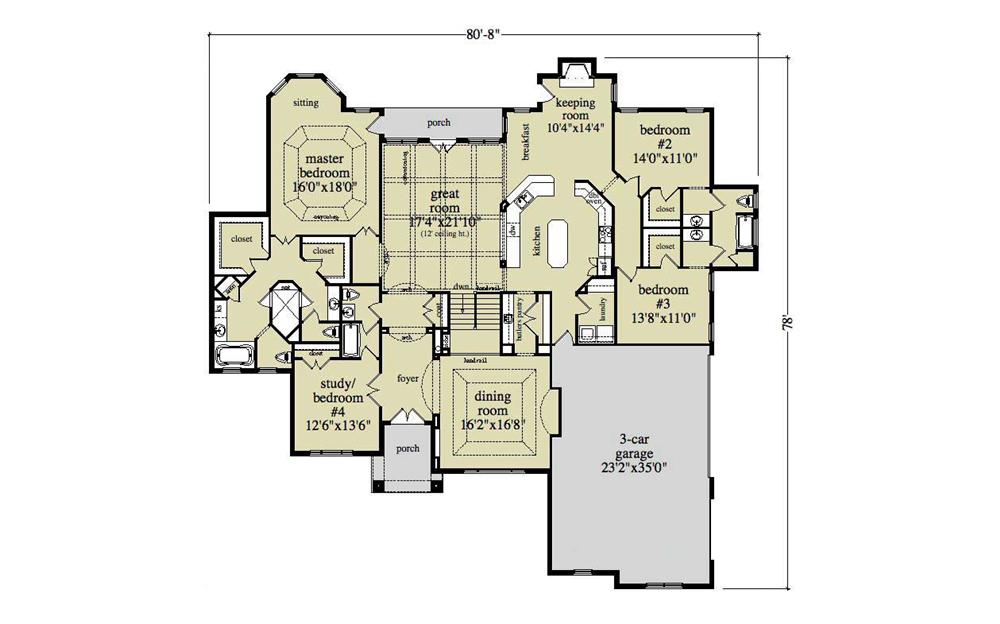

Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.
House Plan Description

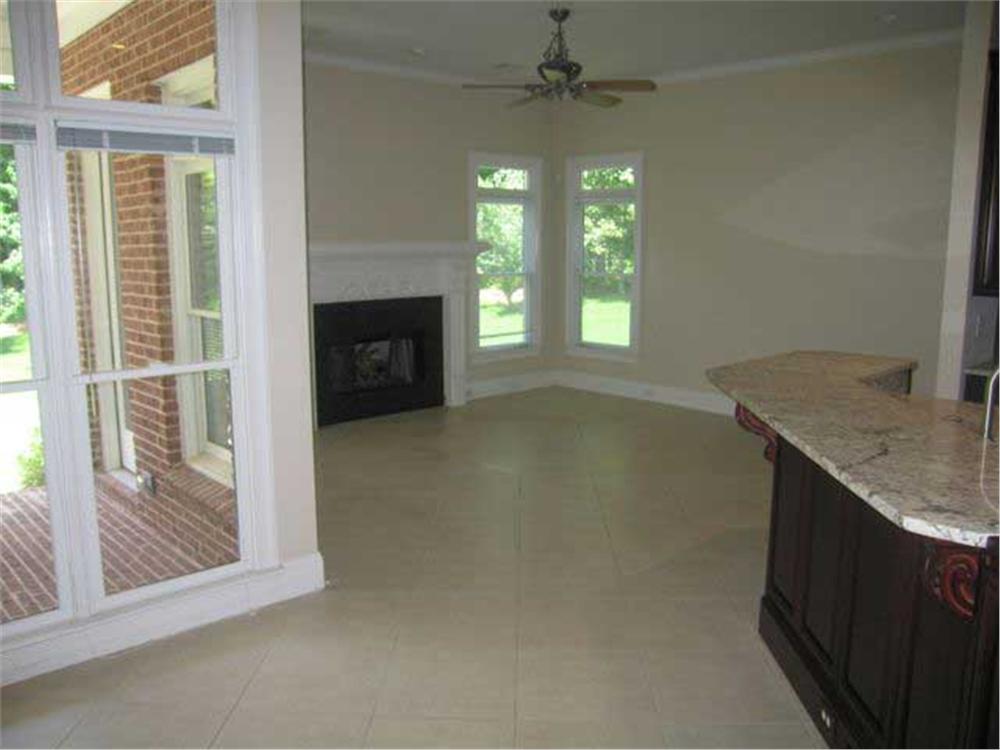

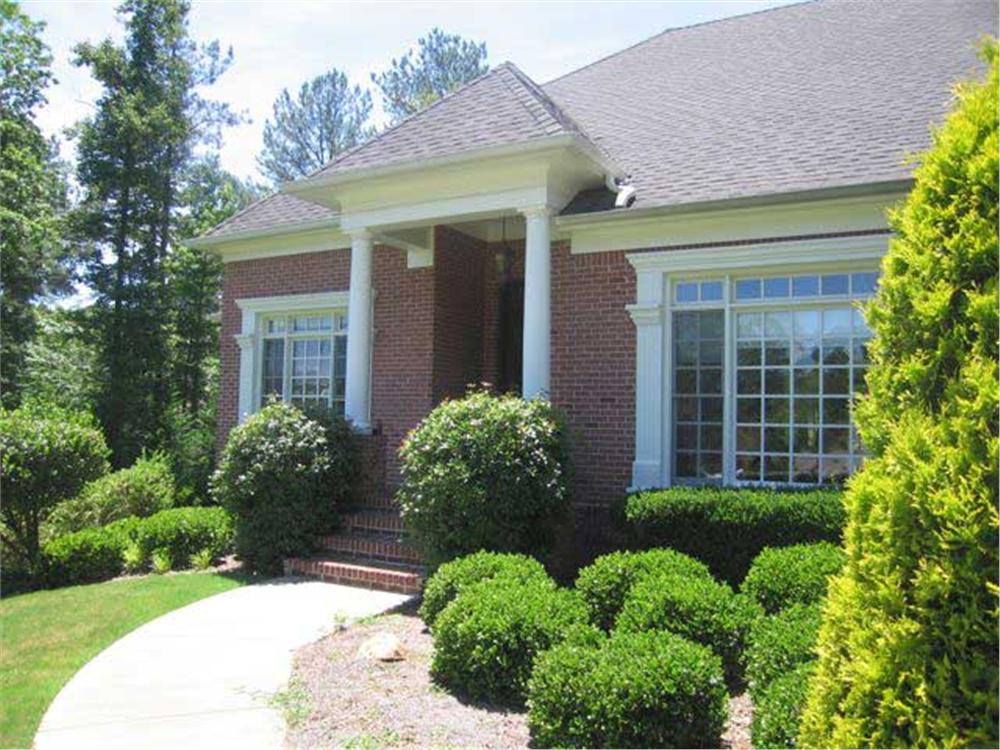

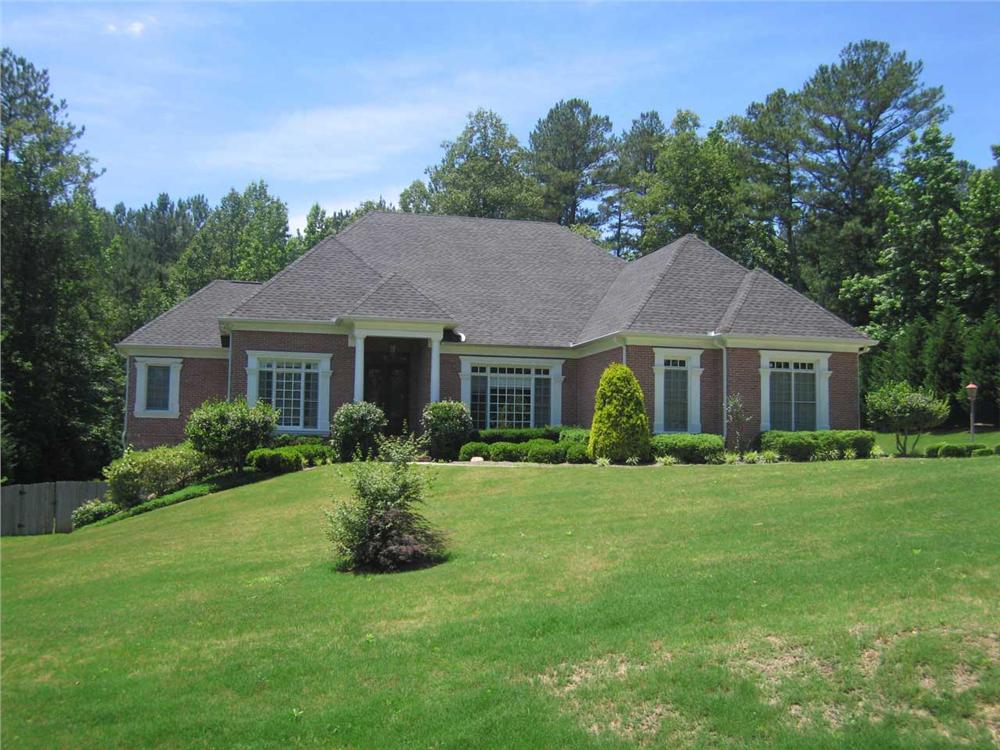

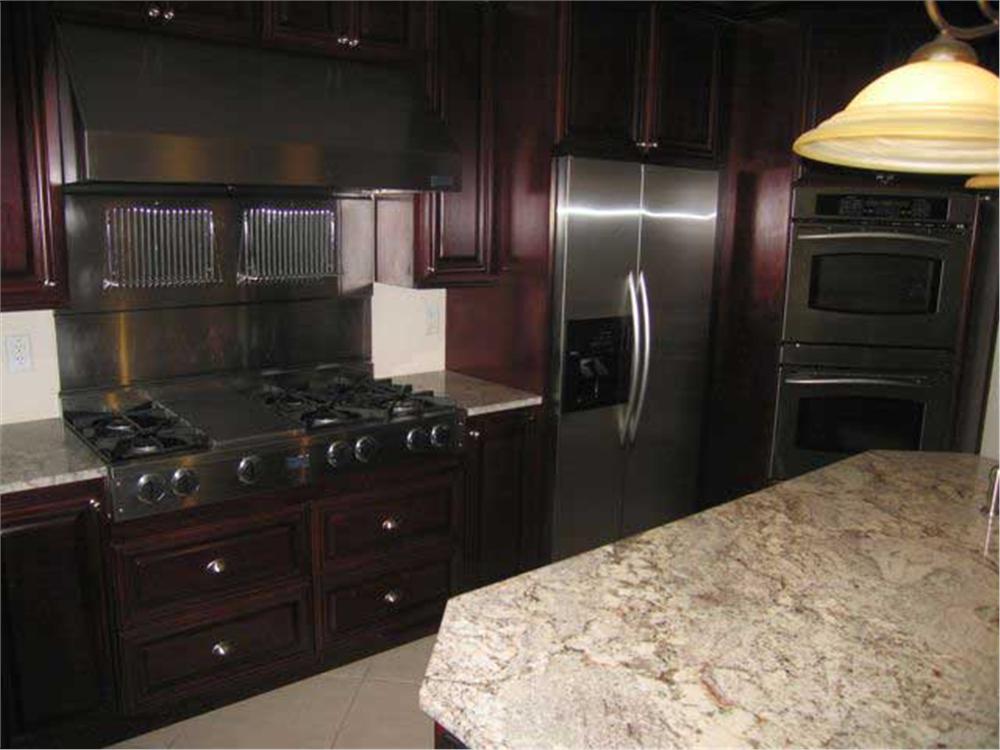

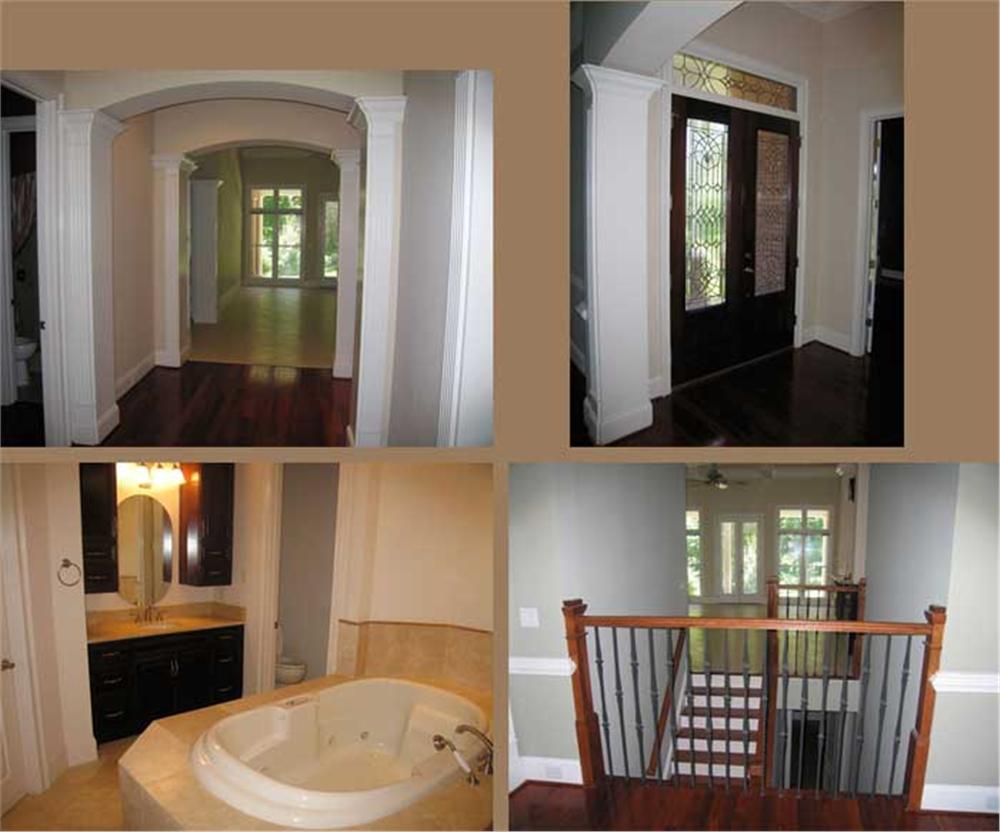

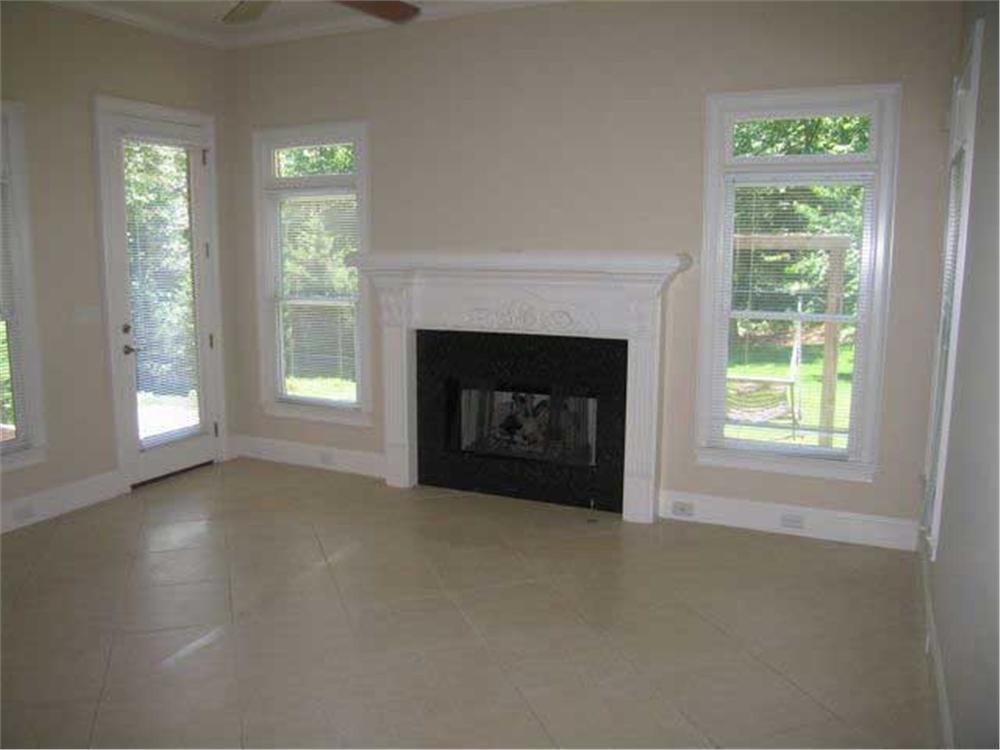

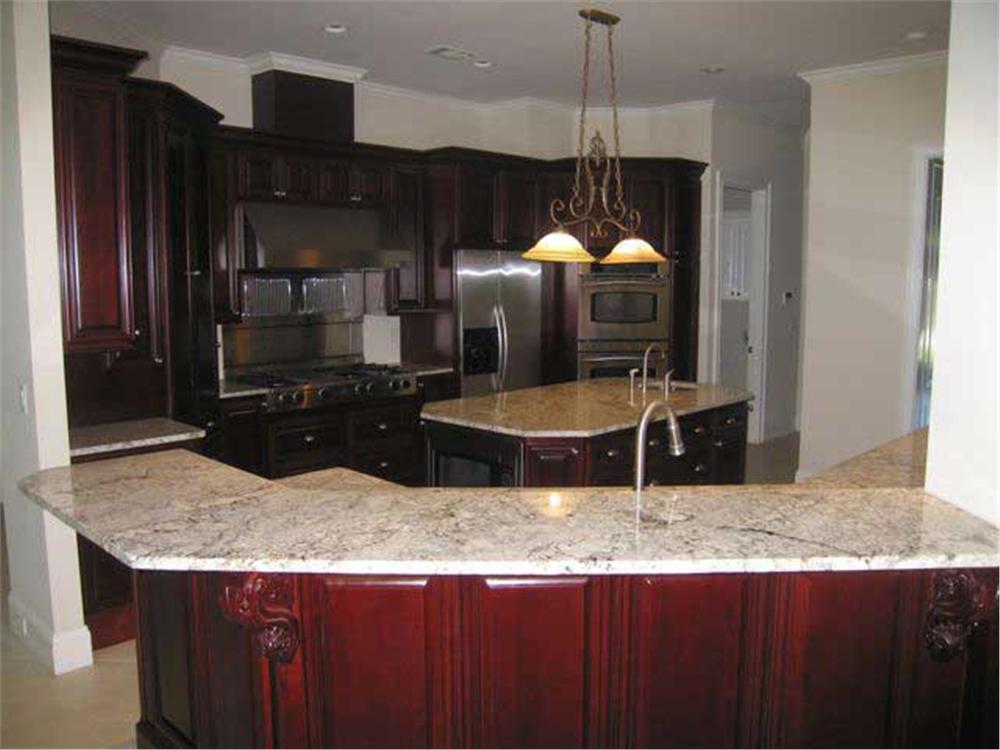

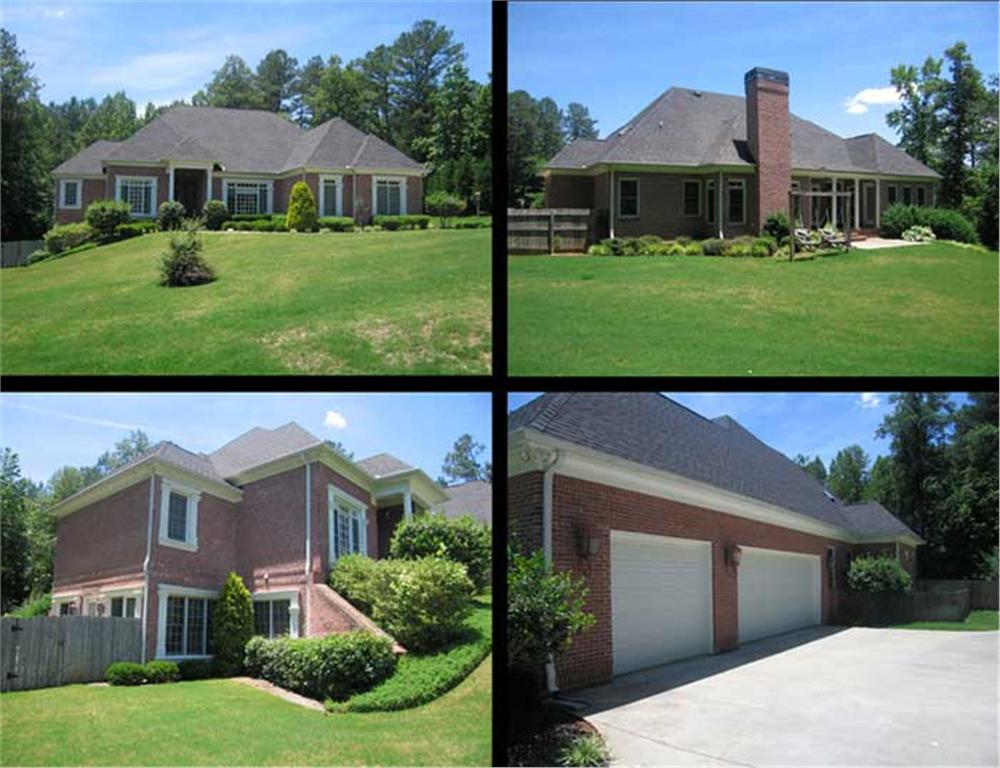

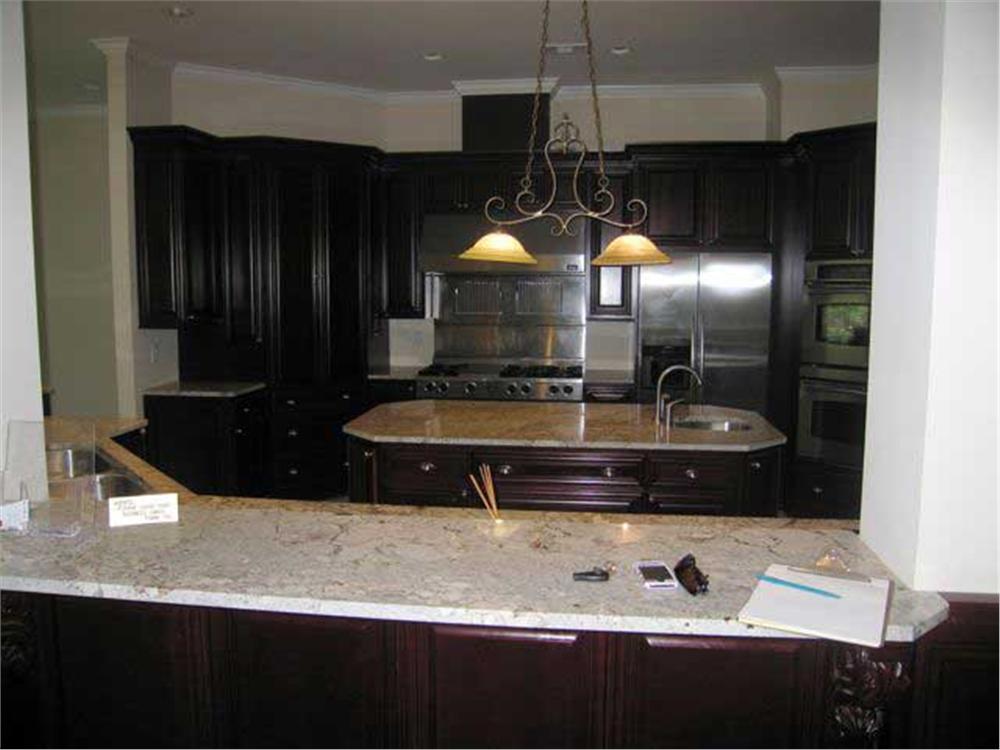

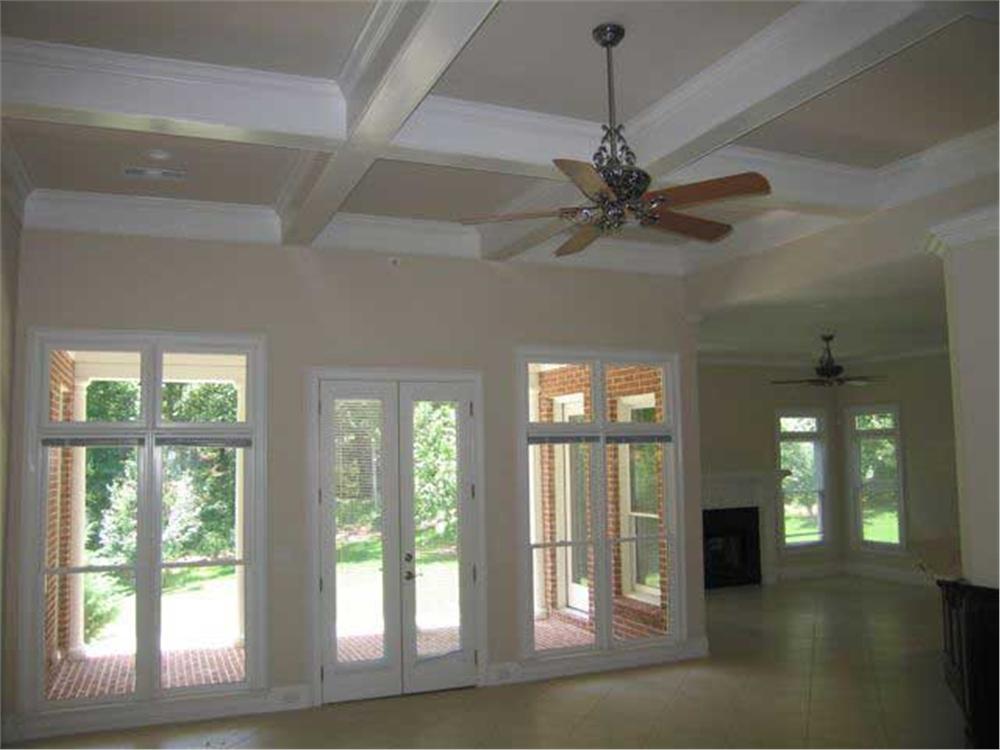

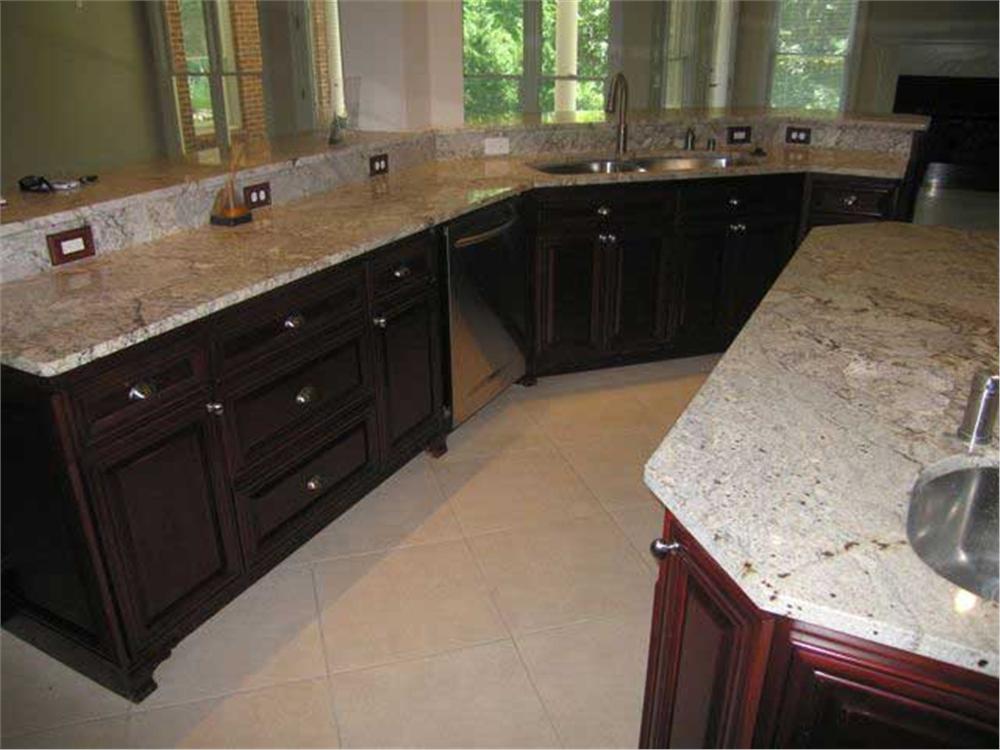

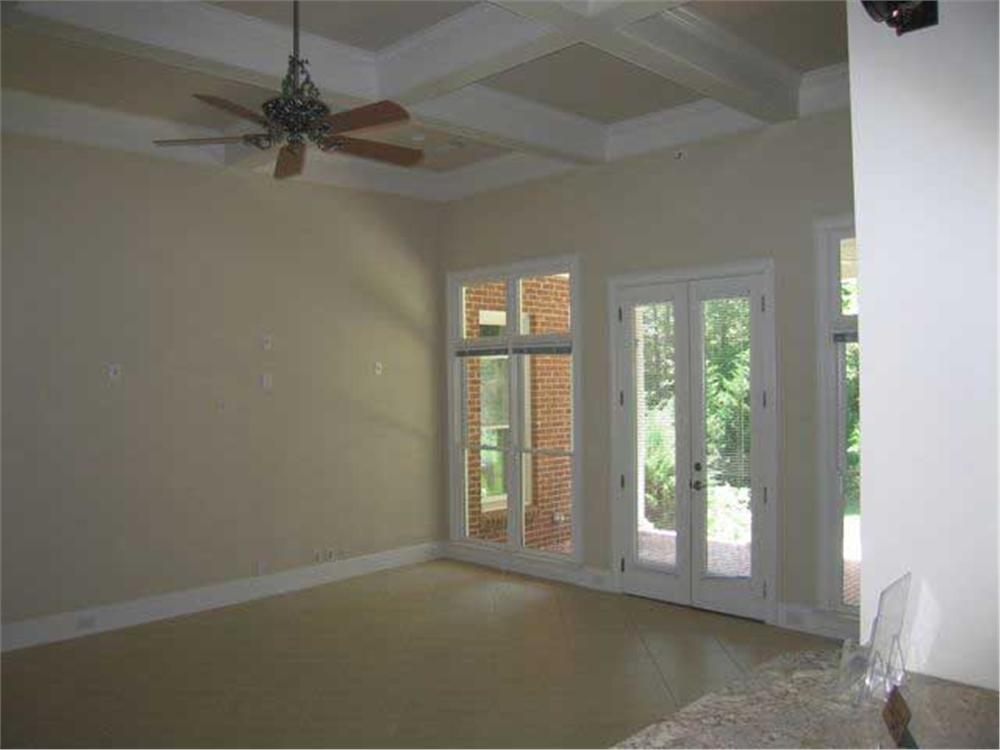

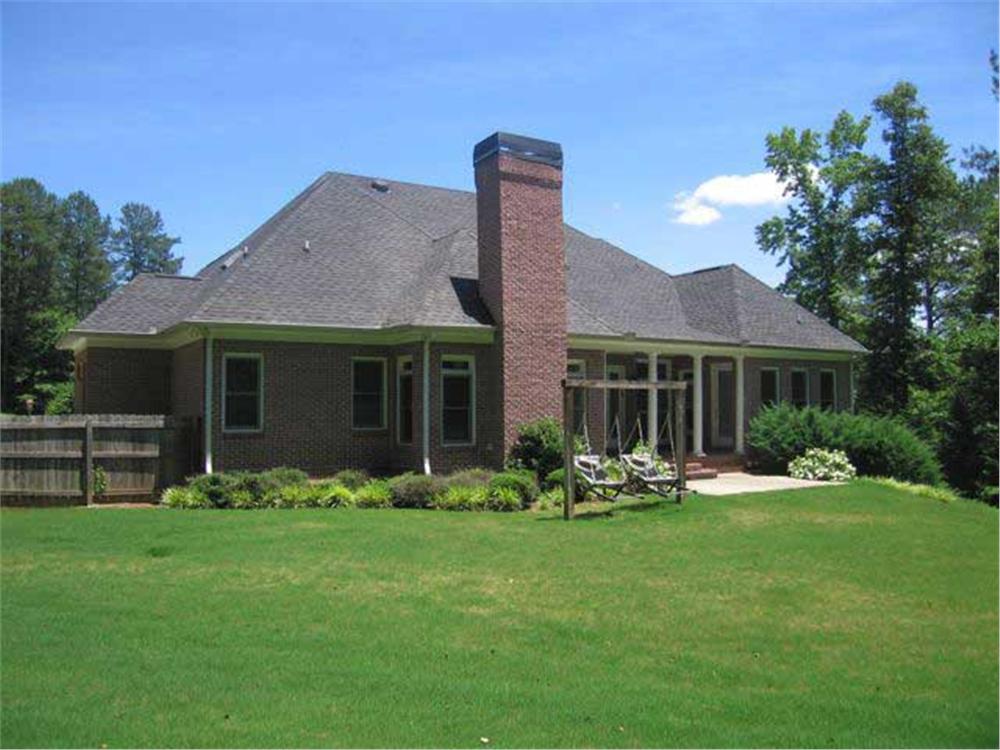

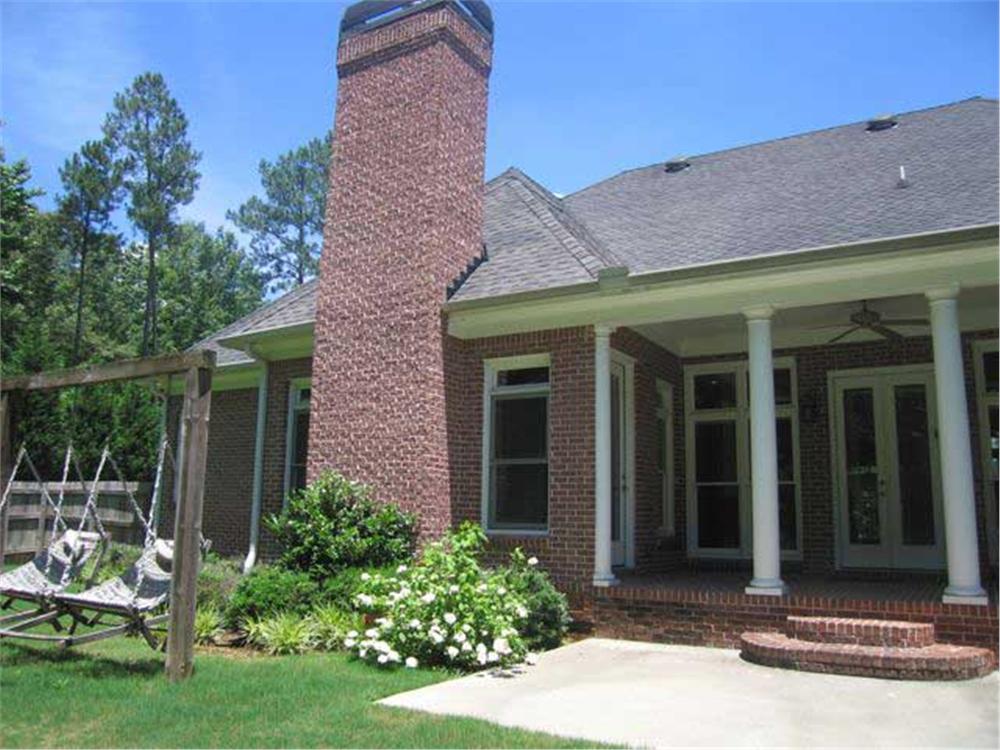

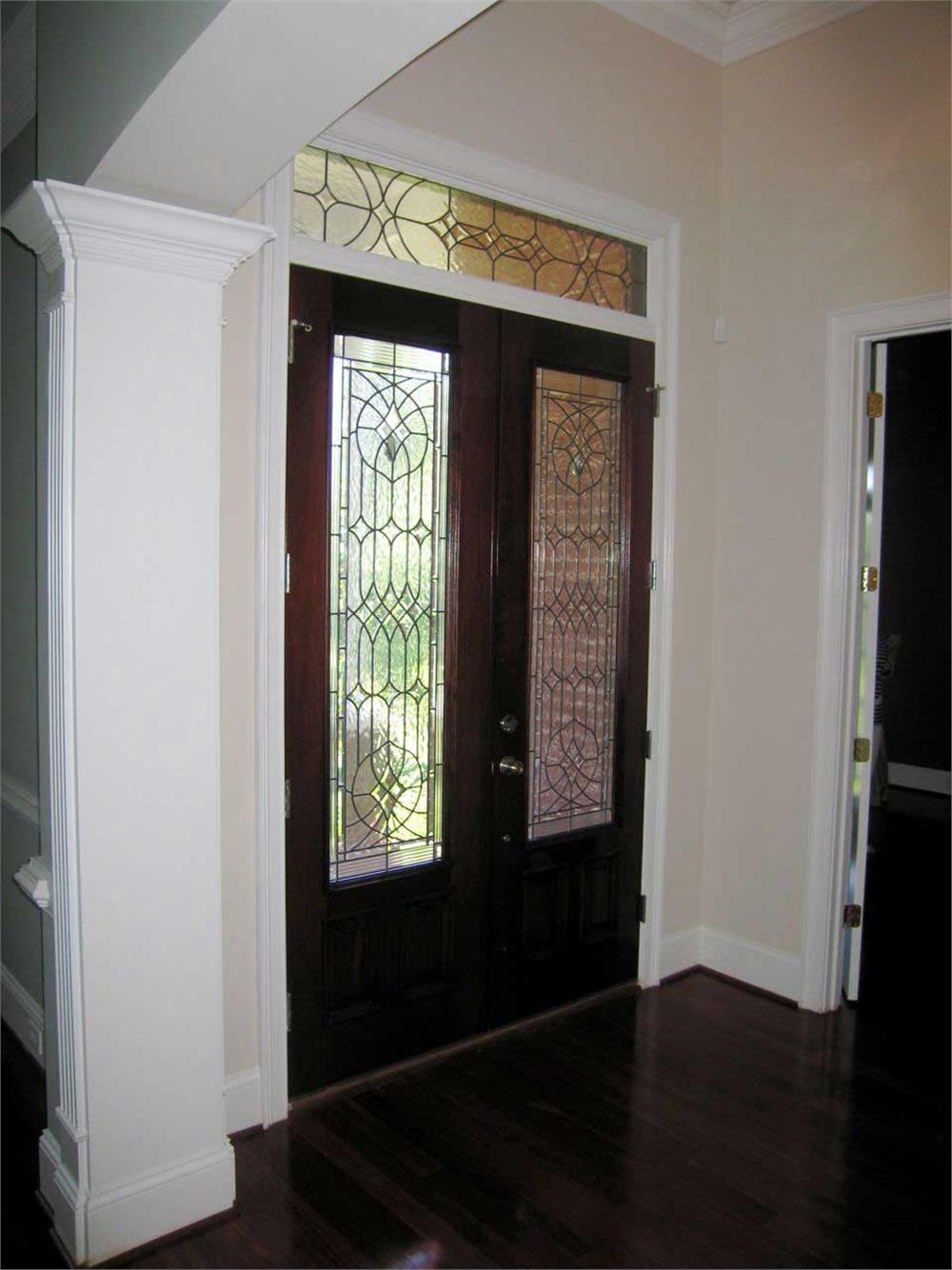

This is a traditional style ranch with 4 sided brick on a basement. Covered entryways welcome you on both the front and rear of the house. The main level is a split bedroom floor plan with the master bedroom on the opposite side of the house from the kitchen. The dining room and foyer welcome visitors with arched entryways and the 12 high great room is decorated with a coffered ceiling. The large kitchen has an island and is open to the keeping room, breakfast nook and great room. A butlers pantry helps keep the dining room well serviced. Bedrooms 2 and 3 have good sized closets and are...
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included

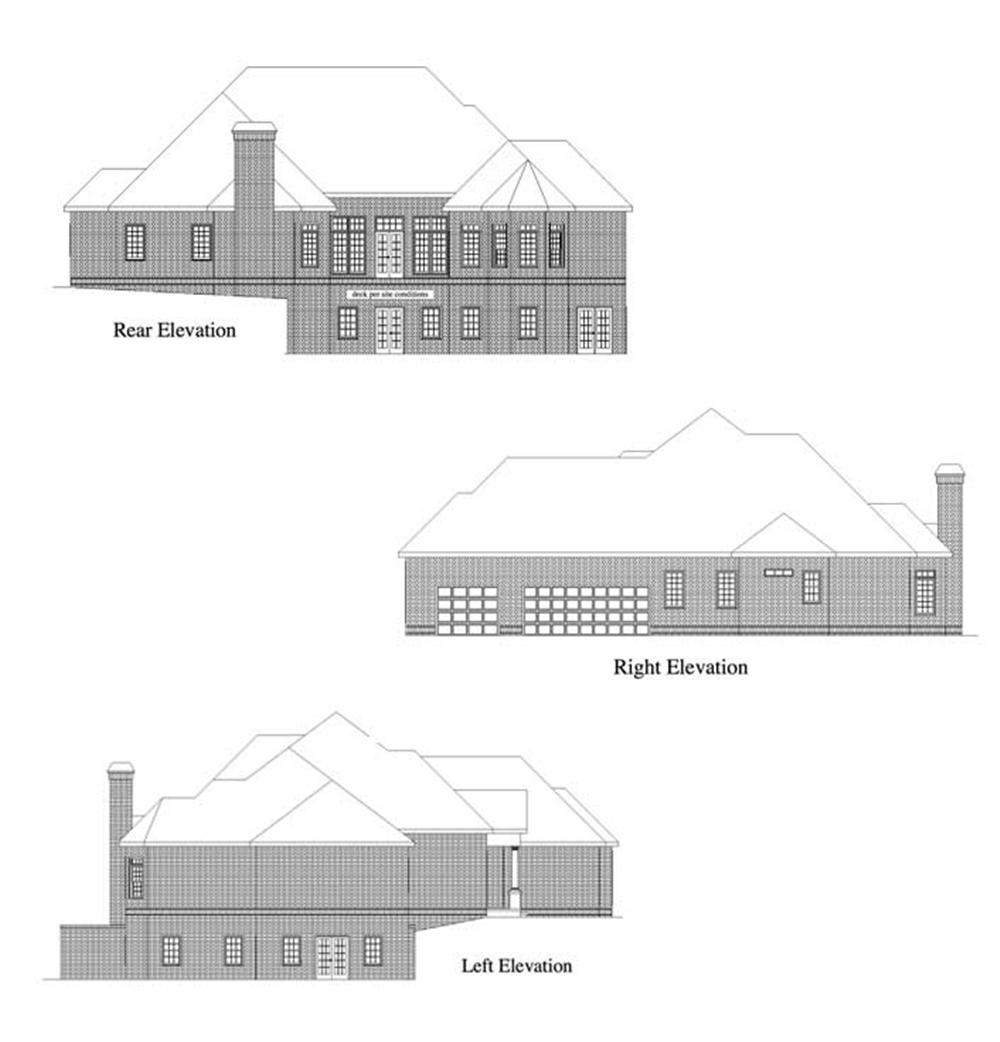

FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.FRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.CROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Electrical Layout (location of light fixtures, switches, and fans)- Although may be available for an additional charge.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
