About Plan # 163-1030

About Plan # 163-1030

House Plan Details

3120 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 80' 8" WIDTH 78' 0" DEPTH 3 GARAGE BAY

House Plan Description

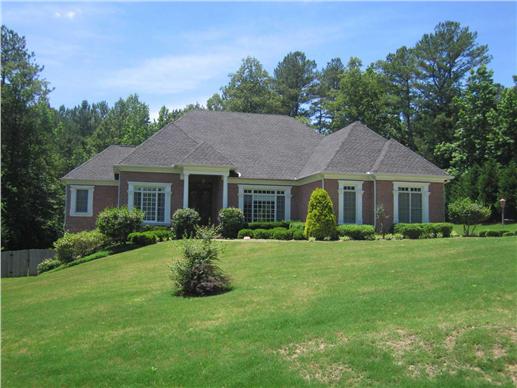

This is a traditional style ranch with 4 sided brick on a basement. Covered entryways welcome you on both the front and rear of the house. The main level is a split bedroom floor plan with the master bedroom on the opposite side of the house from the kitchen. The dining room and foyer welcome visitors with arched entryways and the 12 high great room is decorated with a coffered ceiling. The large kitchen has an island and is open to the keeping room, breakfast nook and great room. A butlers pantry helps keep the dining room well serviced. Bedrooms 2 and 3 have good sized closets and are joined by a jack and jill bath. The study opens into the foyer and could easily be a 4th bedroom as it has a full bath. The master suite has 2 walk in closets, a large shower with a seat, separate vanities and garden tub.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

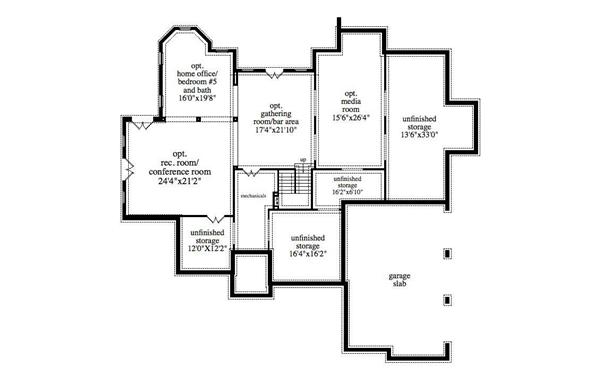

Home Plan: #163-1030 Floor Plan Basement Floor Plan Basement

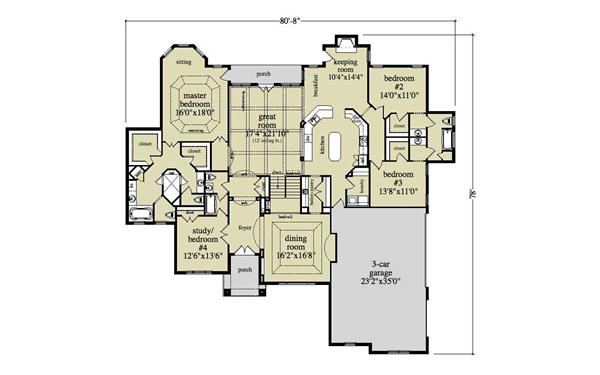

Home Plan: #163-1030 Floor Plan First Story Floor Plan First Story
Home Plan: #163-1030 Floor Plan Basement Floor Plan Basement
Home Plan: #163-1030 Floor Plan First Story Floor Plan First Story

Plan specs and features

Summary Information

House Plan:
# 163-1030
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3120
Main Floor:
3120
Unfinished Square Feet:

Dimensions

Width:
80' 8"
Depth:
78' 0"
Ridge Height:
40-6' 0"

Architectural Styles

European
Ranch
Traditional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Color Photos
Den
Dining Room
Fireplace
Main Level Laundry
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x4

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Walk In Closet

PRICING OPTIONS

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This package includes a license to build a single house plus full construction drawings and tends to be the best value for someone who is ready to start building. Once the process begins, a number of people will require their own set of blueprints - your builder, the subcontractors, local building officials, the mortgage lender and you.

This includes a license to build a single house plus one full set of construction drawings printed on a reproducible medium. A reproducible set allows you to make as many copies as needed for construction of a single home or to take them to a local professional for modifications. To build more than one house, please contact us for a multi-use building license.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
