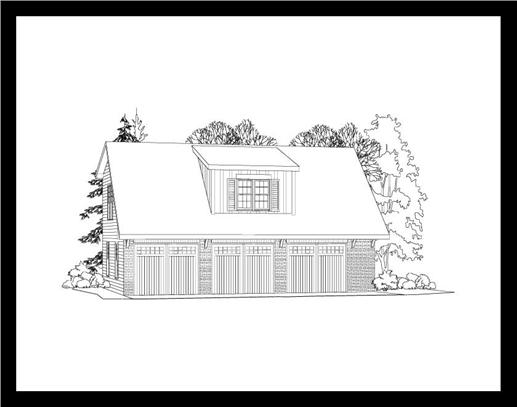

This is a 3D elevation of these Garage Plans.
1-Bedroom, 650 Sq Ft Garage w/Apartments Home Plan - 163-1037 - Main Exterior

About Plan # 163-1037

About Plan # 163-1037

650 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 37' 0" WIDTH 22' 4" DEPTH 3 GARAGE BAY

Garage Plans

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #163-1037 Floor Plan First Story - main level Floor Plan First Story of Garage w/Apartments Plan #163-1037
#163-1037 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #163-1037
Home Plan: #163-1037 Floor Plan First Story - main level Floor Plan First Story of Garage w/Apartments Plan #163-1037
#163-1037 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #163-1037
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 163-1037
Floors:
2
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
650
Main Floor:
719
Upper Floor:
650
Unfinished Sq Ft:
Garage :
719

Dimensions

Width:
37' 0"
Depth:
22' 4"
Ridge Height:
22' 0"

Architectural Styles

Garage
Garage w/Apartments

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Gable/Shed Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
4/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen

Master Suite Features

Master Bathroom
Walk In Closet
Second Floor Master

Additional Notes from Designer

Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
