House Plan #163-1039
Plan Name: 163-1039   Bedrooms: 1   Width: 23' 0"
Square Feet: 507 Sq Ft.   Bathrooms: Full Baths: 1
Half Baths: 0 		  Depth: 25' 6"
Floors: 2   Garage Bays: 2 Ridge Height: 23-7'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  CAD File $425.00
  Reproducible Master $275.00
  Minimum construction Package (5 Sets) $250.00
FOUNDATION OPTIONS
  Slab $0.00
OTHER OPTIONS / ADD-ONS
  Foundation Change $125.00
  Right Reading Reverse $125.00
Square Footage House Plan Description
Heated Sq Ft: 507   Unfinished Sq Ft:
Main Floor: 486   Garage: 0
Upper Floor: 507   Bonus Room: 0
Lower Floor: 0

Garage Plans

Home Features
  Architectural Styles
Garage
Garage w/apartments

  Ceiling Height
8 Foot Ceiling

  Exterior Wall Framing
2x4

  Exterior Wall Material
Wood Siding

  Garage Type
Front Loading
Attached Garage

  Roof Pitch
12/12
4/12

  Roofing Material
Asphalt Shingles

  Roofing Type
Gable/Shed Dormer

  Special Feature
Apartment

House Plan : 163-1039 Images
   House Plan #163-1039
Image not available.

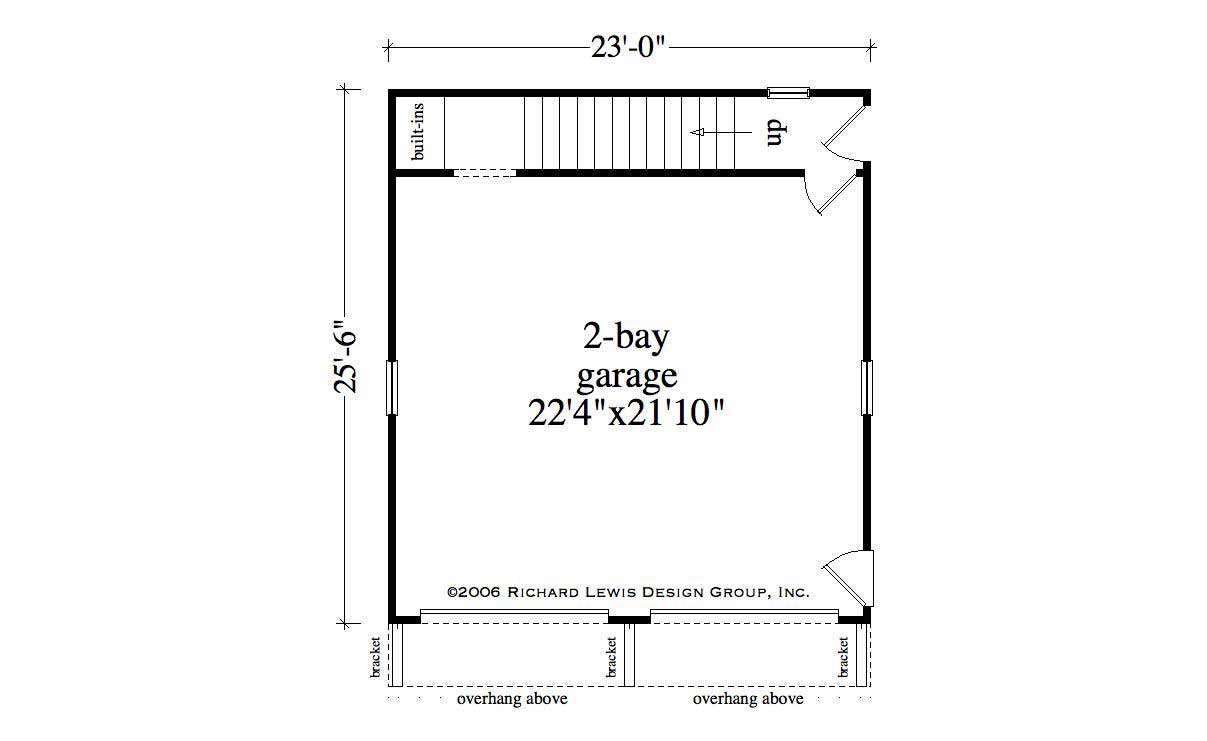

  Home Plan: 163-1039 Floor Plan First Story
Floor Plan First Story

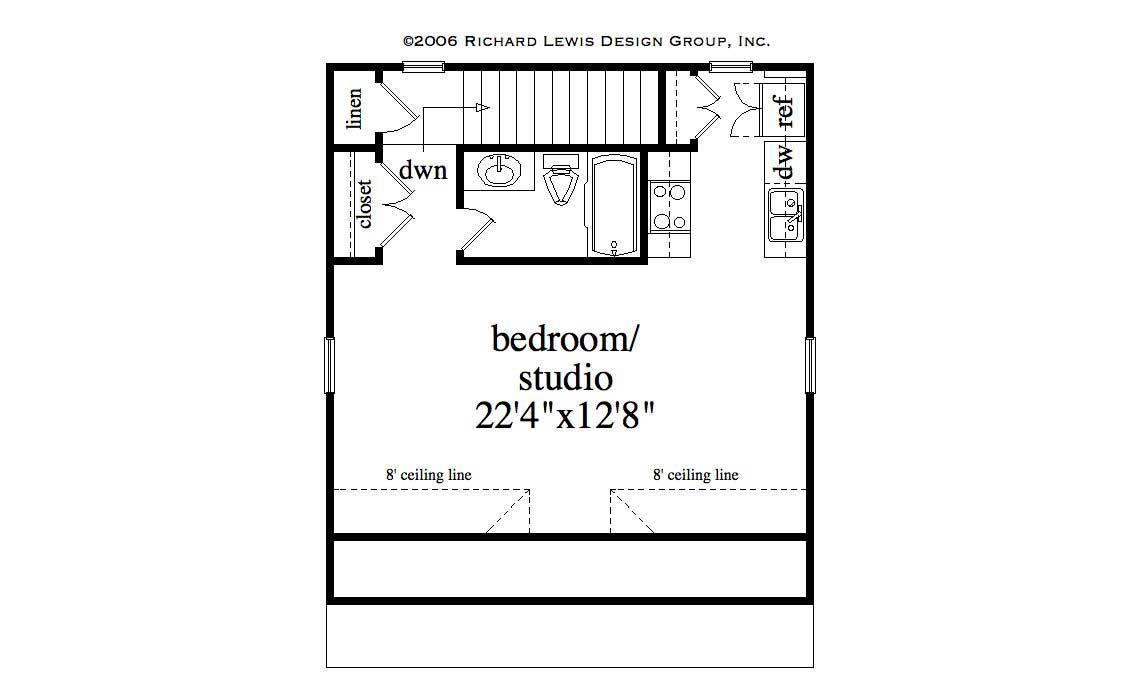

  Home Plan: 163-1039 Floor Plan Second Story
Floor Plan Second Story
