House Plan #163-1036
Plan Name: 163-1036   Bedrooms: 2   Width: 28' 8"
Square Feet: 1208 Sq Ft.   Bathrooms: Full Baths: 1
Half Baths: 0
  Depth: 39' 4"
Floors: 2   Garage Bays: 3 Ridge Height: 36-7'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $475.00
  Reproducible Master $500.00
  CAD File $600.00
FOUNDATION OPTIONS
  Slab $0.00
OTHER OPTIONS / ADD-ONS
  Right Reading Reverse $125.00
Square Footage House Plan Description
Heated Sq Ft: 1208
Main Floor: 71
Upper Floor: 1137
Unfinished Sq ft
Garage: 1107

Garage Plans

Home Features
  Architectural Styles
Garage w/Apartments
Garage

  Ceiling Height
8 Foot Ceiling

  Exterior Wall Framing
2x4

  Exterior Wall Material
Rock/Stone
Vinyl Siding

  Garage Type
Attached Garage
Front Entry

  Kitchen Features
Peninsula/Eating Bar

  Master Suite Features
Second Floor Master

  Roof Pitch
12/12
5/12

  Roofing Material
Asphalt Shingles

  Roofing Type
Gable/Dormer

  Special Feature
Dining Room
Second Level Laundry

House Plan : 163-1036 Images
Reverse Plan Images

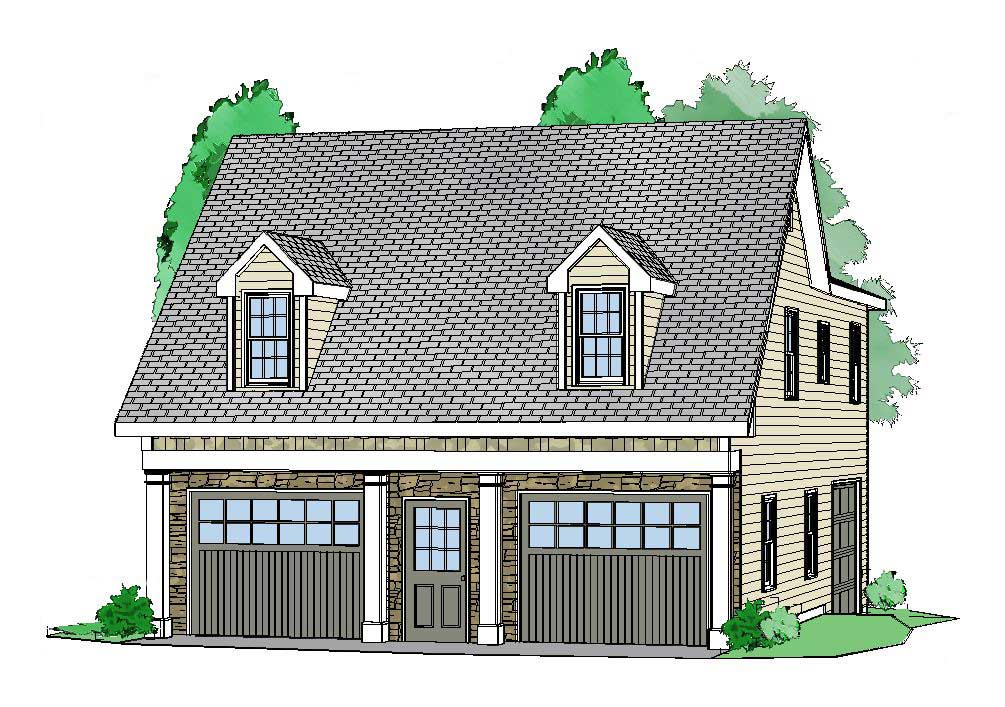

   House Plan #163-1036
Image not available.

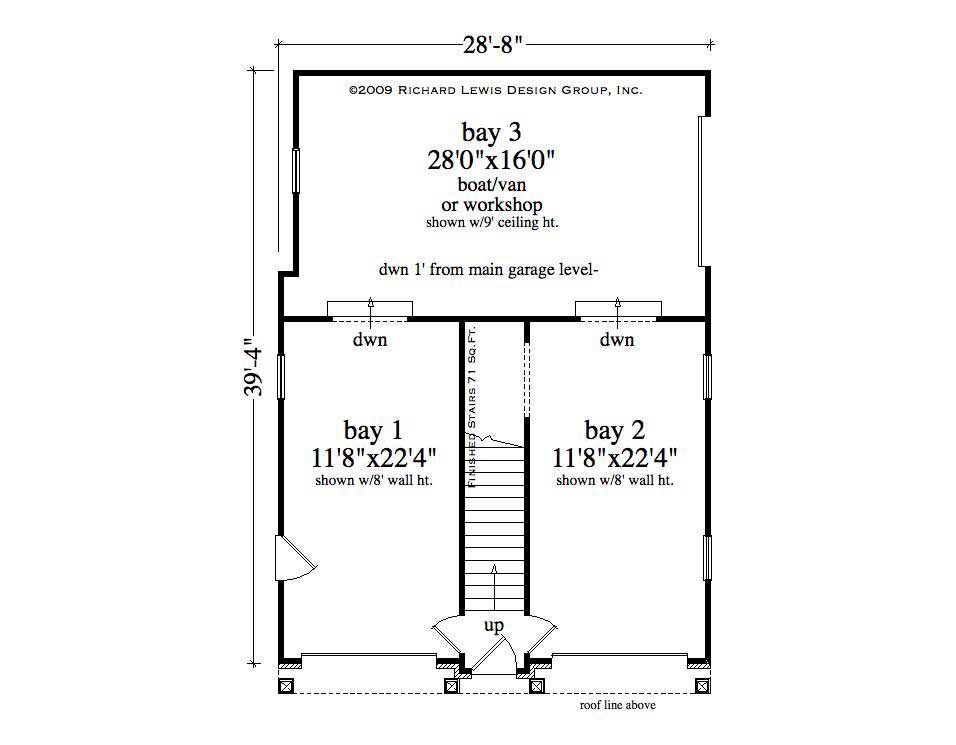

  Home Plan: 163-1036 First Floor
163-1036 first floor

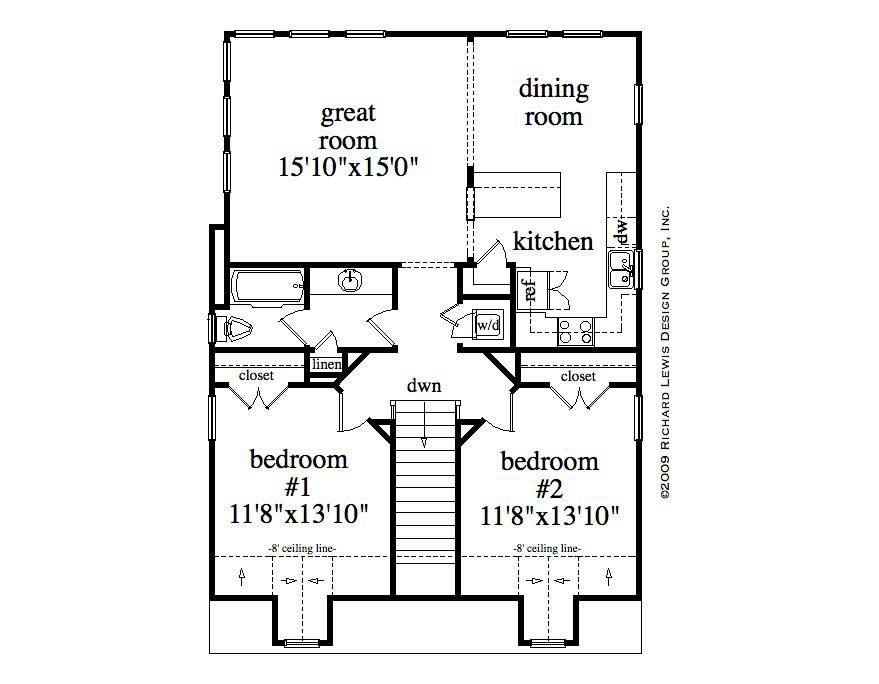

  Home Plan: 163-1036 Second Floor
163-1036 second floor
