House Plan #161-1034
Plan Name: 161-1034   Bedrooms: 5   Width: 123' 6"
Square Feet: 7805 Sq Ft.   Bathrooms: Full Baths: 5
Half Baths: 3
  Depth: 103' 5"
Floors: 2   Garage Bays: 4 Ridge Height: 29'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $1,500.00
  PDF File Set $2,150.00
  Reproducible Master $2,150.00
  CAD File $2,750.00
FOUNDATION OPTIONS
  Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
  Right Reading Reverse $100.00
Square Footage House Plan Description
Heated Sq Ft: 7805
Main Floor: 4261
Lower Floor: 3544
Unfinished Sq ft
Garage: 1470
Bonus: 1270

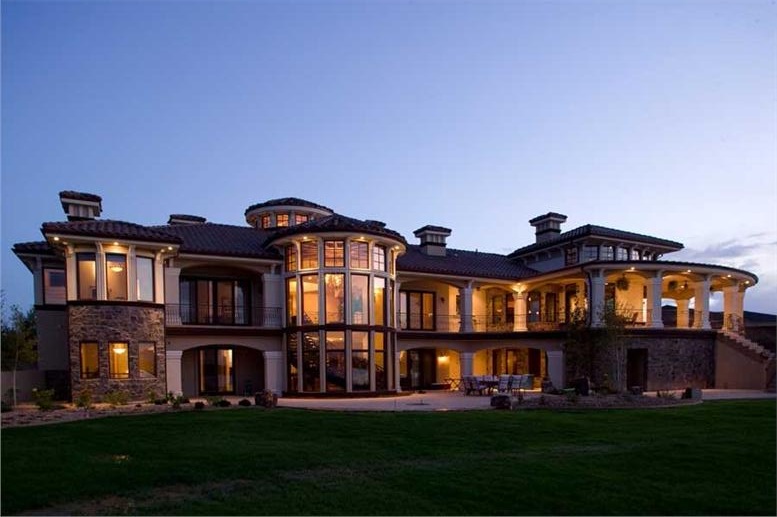

This Mediterranean Style house plan stands grand and proud, both on the front and back. Sitting on a lake, most of the spaces orient towards the water on the back. The two-story, glass, stair tower is a very significant centerpiece to the overall design. Every space, in and out, of this home are ready for entertaining.

Home Features
  Architectural Styles
Mediterranean
Luxury
Tuscan

  Ceiling Height
10 Foot Ceiling

  Exterior Wall Framing
2x6

  Exterior Wall Material
Rock/Stone
Stucco

  Garage Type
Attached Garage
Courtyard Entry

  Kitchen Features
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

  Master Suite Features
Master Bathroom
Walk In Closet
Main Floor Master

  Porches and Exterior Features
Patio
Courtyard
Covered Rear Porch
Sundeck

  Roof Pitch
5/12

  Roofing Material
Tiles

  Roofing Type
Hip

  Special Feature
Fireplace
Dining Room
Game Room
Main Level Laundry
Home Theater
Media Room
Storage
Wine Cellar

House Plan : 161-1034 Images
Reverse Plan Images
   House Plan #161-1034
Image not available.

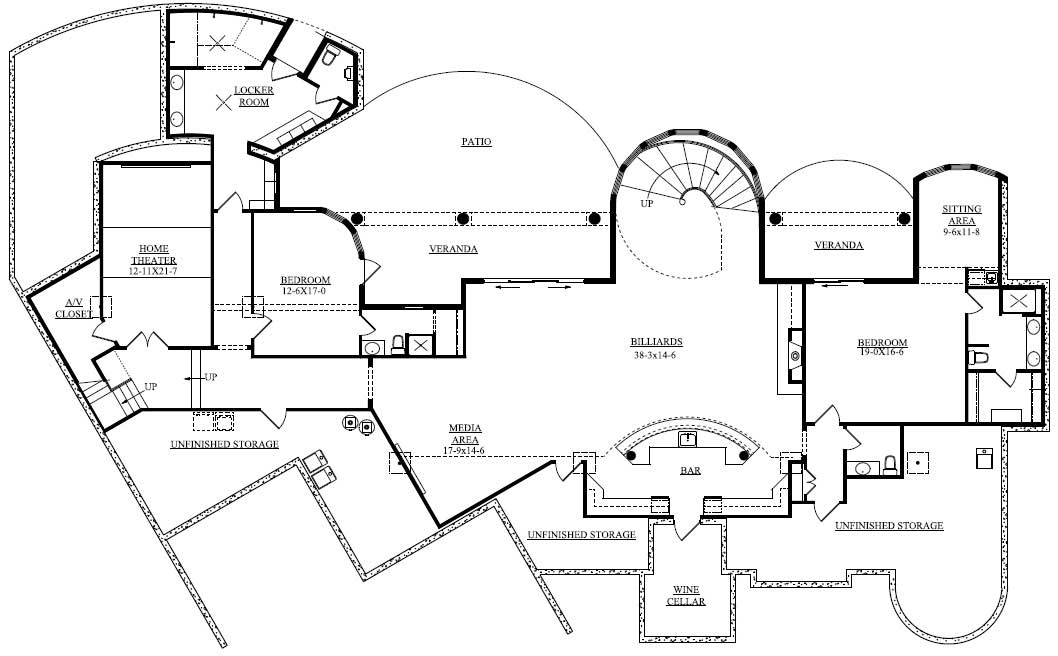

  Home Plan: 161-1034 Floor Plan Basement
Floor Plan Basement

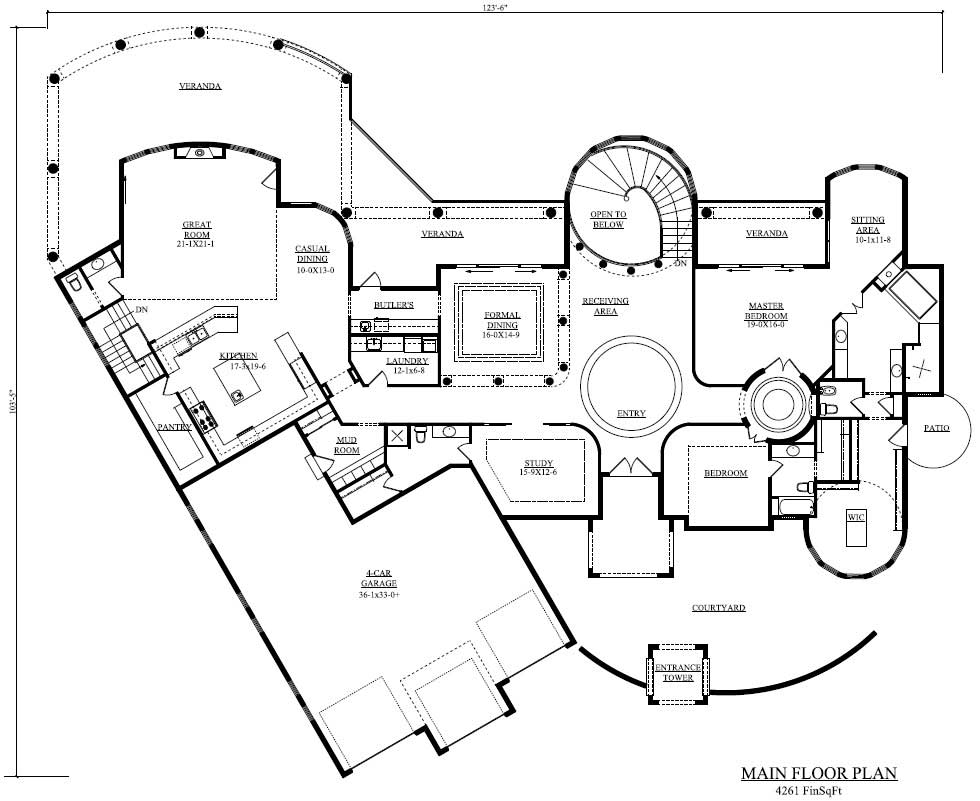

  Home Plan: 161-1034 Floor Plan First Story
Floor Plan First Story
