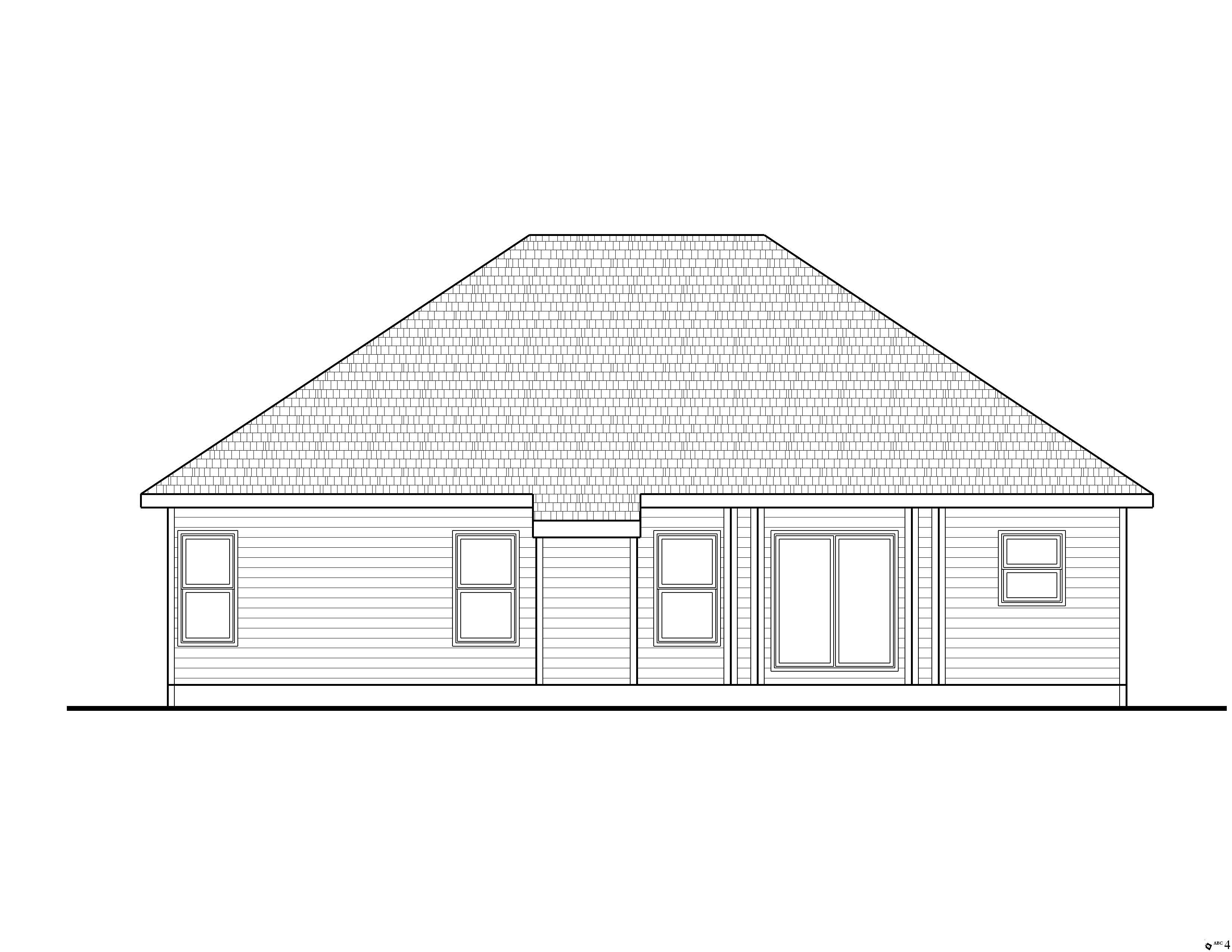

Home Plan Rear Elevation
100-1147: Home Other Image-Front View
3-Bedroom, 1343 Sq Ft Craftsman Home Plan - 100-1147 - Main Exterior
Home Plan Rear Elevation
100-1147: Home Other Image-Front View

About Plan # 100-1147

About Plan # 100-1147

1343 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 47' 8" WIDTH 41' 0" DEPTH 2 GARAGE BAY

This striking Craftsman style home with a ranch style structure (Plan #100-1147) has 1343 square feet of living space. The one-story floor plan includes 3 bedrooms. This is one of those Small Houses that you can't help but say "Wow!" to. The Craftsman style and the comfortable floor plans are just outstanding.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

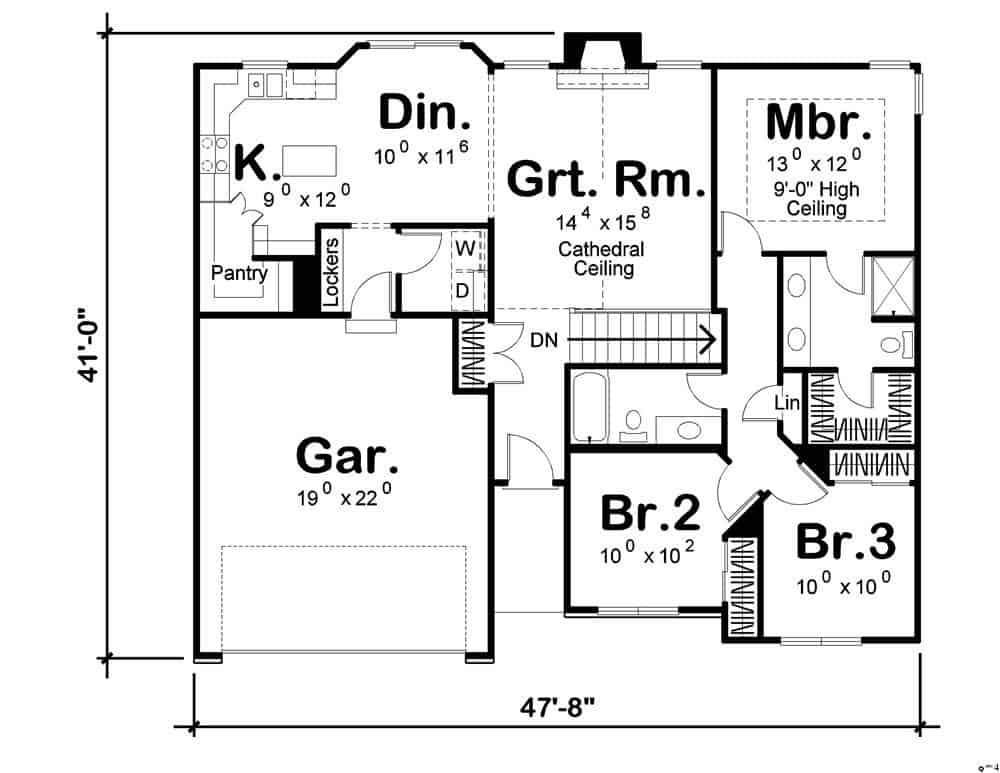

Home Plan: #100-1147 Floor Plan First Story - main level Main Level of Craftsman Plan #100-1147
