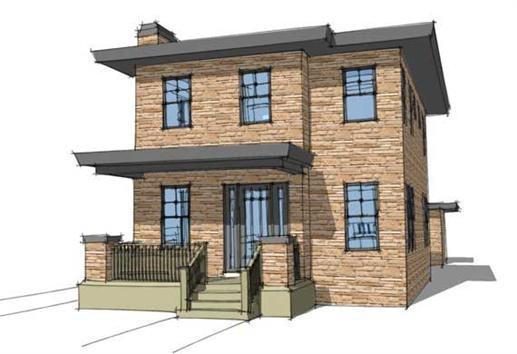

Illustration of Modern Craftsman home (ThePlanCollection: House Plan #116-1016)
Home Plan Rear Elevation
116-1016: Home Other Image-Front View
116-1016: Home Other Image-Rear View
Home Plan Left Elevation
3-Bedroom, 1586 Sq Ft Modern House Plan - 116-1016 - Front Exterior
Home Plan Rear Elevation
116-1016: Home Other Image-Front View
116-1016: Home Other Image-Rear View
Home Plan Left Elevation

About Plan # 116-1016

About Plan # 116-1016

1586 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 25' 0" WIDTH 49' 0" DEPTH 0 GARAGE BAY

This home is a modern craftsman interpretation. It is designed for a small lot. It provides all the comforts of a larger home in a small, comfortable space. The downstairs is an open plan with separate living, dining, family and breakfast nook. The living features a fireplace and is open to the stairwell. The dining has a built-in china display cabinet and bar. The family room and kitchen are designed for entertaining. Front and back porches provide space for outdoor living. Upstairs, the master suite is comfortable with access to the private sundeck, modern bathroom with soaking tub, and walk-in closet. The secondary bedrooms each have walk-in closets. This home is constructed using wood frame walls and engineered floor and roof trusses.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #116-1016 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #116-1016
#116-1016 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #116-1016
#116-1016 Floor Plan Garage - garage Floor Plan Garage of Modern Plan #116-1016
Home Plan: #116-1016 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #116-1016
#116-1016 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #116-1016
#116-1016 Floor Plan Garage - garage Floor Plan Garage of Modern Plan #116-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1016
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1586
Main Floor:
793
Upper Floor:
793
Unfinished Sq Ft:

Dimensions

Width:
25' 0"
Depth:
49' 0"
Ridge Height:
26' 0"

Architectural Styles

Country
Modern
Craftsman

Exterior Wall Material

Rock/Stone

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Home Theater
Split Bathroom
Second Level Laundry
Open Floor Plan

Garage Type

Detached Garage

Exterior Wall Framing

2x6

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Master Bathroom
Walk In Closet
Private Deck
Second Floor Master

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
